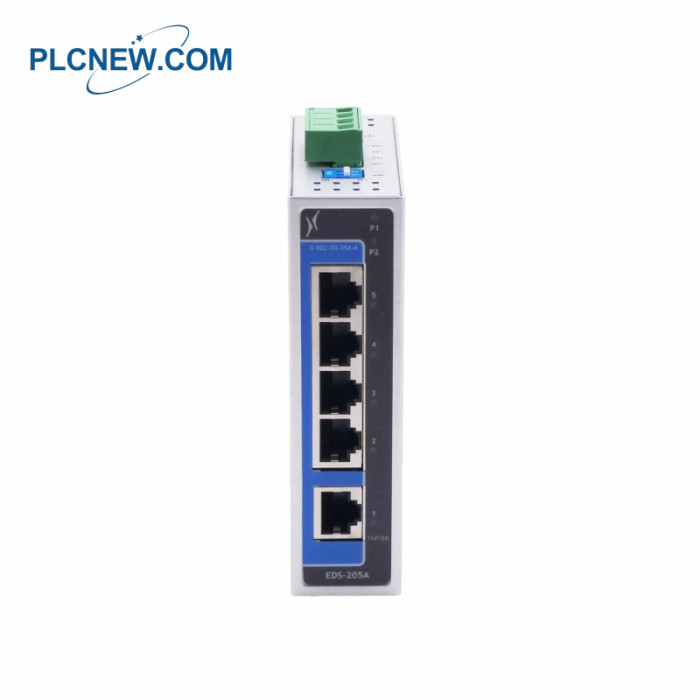

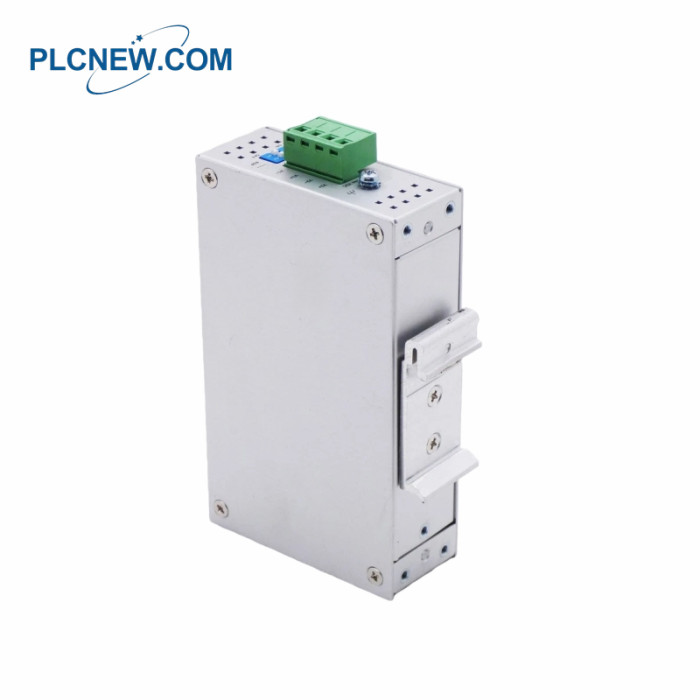

Moxa EDS-205A Industrial Ethernet Switch

Moxa EDS-205A Industrial Ethernet Switch

Details of the module

Moxa EDS-205A Industrial Ethernet Switch
Input Current: 0.29 A (max.)
Input Voltage: 12 / 24 / 48 VDC (Redundant dual inputs)
Operating Voltage: 9.6 to 60 VDC
IP Rating: IP30
Dimensions: 30 × 115 × 70 mm (1.18 × 4.52 × 2.76 in)
Weight: 175 g (0.39 lb)
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temperature Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

The EDS-205A Series 5-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M

full/half-duplex, MDI/MDI-X auto-sensing. The EDS-205A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant

power inputs that can be connected simultaneously to live DC power sources. These switches have been designed

for harsh industrial environments, such as in maritime (DNV/LR/ABS/NK), rail wayside, highway, or mobile

applications (EN 50121-4/NEMA TS2), or hazardous locations (Class I Div. 2, ATEX Zone 2, IECEx) that comply

with FCC, UL, and CE standards.
The EDS-205A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide

operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they

fulfill the special needs of industrial control applications. In addition, the EDS-205A switches have DIP switches for

enabling or disabling broadcast storm protection and Quality of Service, providing another level of flexibility for

industrial applications.
The EDS-205A Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable

for PROFINET networks.

Frequently asked questions：

Q1: What is the Moxa EDS-205A used for?
A: The EDS-205A is an industrial Ethernet switch for reliable networking in factories, process control systems,

and industrial environments.
Q2: What power supply does the EDS-205A support?
A: It supports 12 / 24 / 48 VDC with redundant dual inputs, operating in a voltage range of 9.6–60 VDC.
Q3: What is the maximum input current of the Moxa EDS-205A?
A: The maximum input current is 0.29 A.
