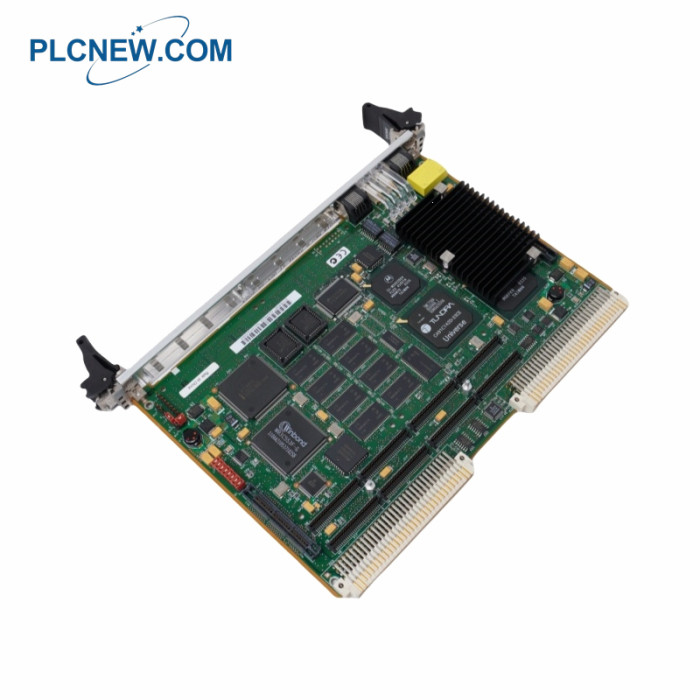

MVME 2304-111 Processor Module

MVME 2304-111 Processor Module

Sales Name: Frida      Phone/WhatsApp:+86-18965196563     Email:sales17@amikon.cn

Product Details

The Motorola MVME2304-0111 is a high-performance VMEbus processor module from the MVME2300 series, designed for demanding embedded computing applications. It is built around a powerful 333 MHz PowerPC 604™ 32-bit microprocessor, featuring 32KB of integrated instruction and data cache for optimized processing speed. This module is equipped with 16MB of ECC-protected DRAM for reliable data integrity and 5MB of onboard Flash memory (combining socketed and surface-mount types) for flexible firmware and application storage. It includes an 8KB NVRAM with a removable battery backup for critical data retention and a real-time clock.

Series: MVME2300
Microprocessor: PowerPC 604™
Clock Frequency: 333 MHz
On-chip Cache (I/D): 32KB / 32KB
Main Memory: 16MB ECC DRAM
Flash Memory: 5MB total (1MB socketed + 4MB surface mount)
NVRAM: 8KB (4KB user-available)
Battery: Removable; 50-year storage life; 10-year capacity life at 100% duty cycle
VMEbus Interface: ANSI/VITA 1-1994 VME64 (IEEE STD 1014)
VMEbus Master: A16–A32; D08–D64, BLT
VMEbus Slave: A24–A32; D08–D64, BLT, UAT
Ethernet Controller: DEC 21140 10/100Mb/s
Ethernet Connector: Front panel RJ-45
Serial Port: Asynchronous, PC16550 controller, front panel RJ-45
Timers/Counters: Four 16-bit programmable; one watchdog timer
Real-Time Clock: MK48759 with NVRAM
PMC Slots: Two IEEE P1386.1 compliant; support front-panel or P2 I/O
PCI Expansion: 64-bit PCI mezzanine connector (114-pin)
Front Panel Features: Reset/Abort switches; Fail, CPU, PMC1, PMC2 LEDs
Front Panel Type: Original VME Scanbe front panel and handles
Power Requirements (+5V ±5%): 5.0 A typical; 5.5 A max (PMC dependent at ±12V)
Board Dimensions (H x D): 233.4 mm x 160.0 mm (9.2" x 6.3")
Operating Temperature: 0°C to +55°C
Operating Humidity: 5% to 85% non-condensing
MTBF: 190,509 hours (mean); 107,681 hours (95% confidence)
