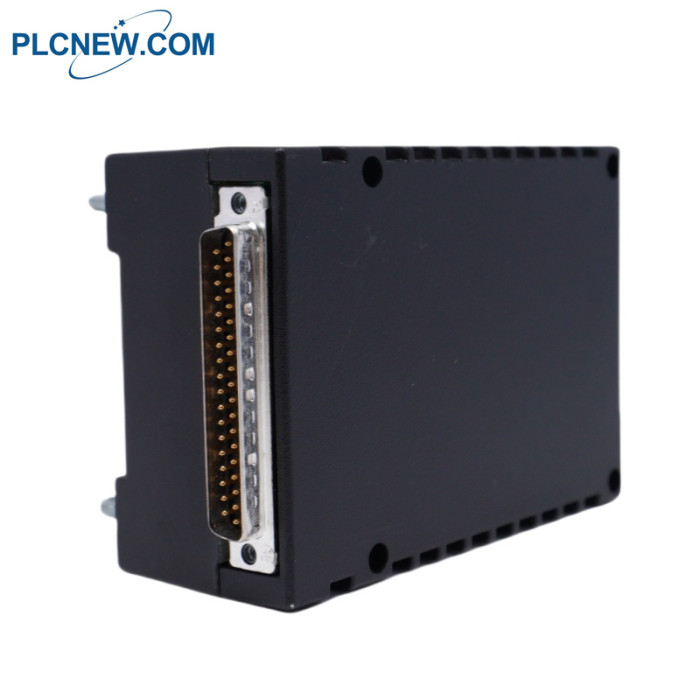

IS220PRTDH1A General Electric Resistance Temperature Device Input Module

IS220PRTDH1A General Electric Resistance Temperature Device Input Module

IS220PRTDH1A General Electric Specification

Part Number: IS220PRTDH1A
Manufacturer: General Electric
Series: Mark VIe
Product Type: Input Module
Number of Channels: 8
A/D Converter Resolution: 14-bit
Common Mode Voltage Range: ±5 Volts
Maximum Lead Resistance: 15 Ω maximum
Availability: In Stock
Country/Region of Manufacture: United States(USA)
Manual: GEH-6721L

IS220PRTDH1A General Electric Description

IS220PRTDH1A is a Resistance Temperature Device Input Module manufactured

and designed by General Electric as part of the Mark VIe Series used in distributed

control systems. An RTD input terminal board and one or more I/O Ethernet networks

are connected electrically by the Resistance Temperature Device (RTD) Input (PRTD) pack.

An acquisition board dedicated to the thermocouple input function is included in the pack,

along with a processor board that is shared by all Mark VIe distributed I/O packs. Up to eight

RTD inputs can be supported by the I/O pack, while the TRTD terminal boards can support

up to sixteen RTD inputs. A DC-37 pin connector that links directly to the terminal board connector

for the pack, as well as a three-pin power input, are used for input. There are two RJ45 Ethernet

connectors for the output. Indicator LEDs are used to display visual diagnostics.

Welcome to contact→【Sales Manager】:Lisa

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Please note that here is only part of the model, if you have the need, please contact us.
