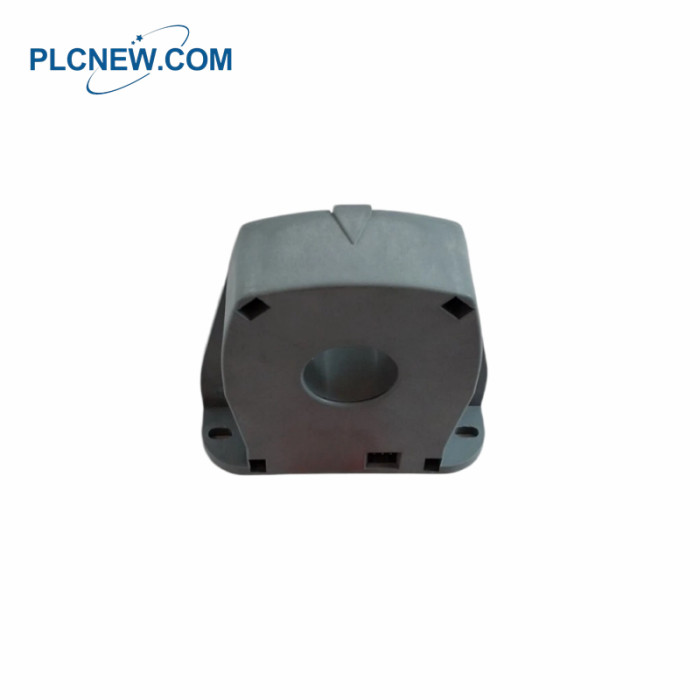

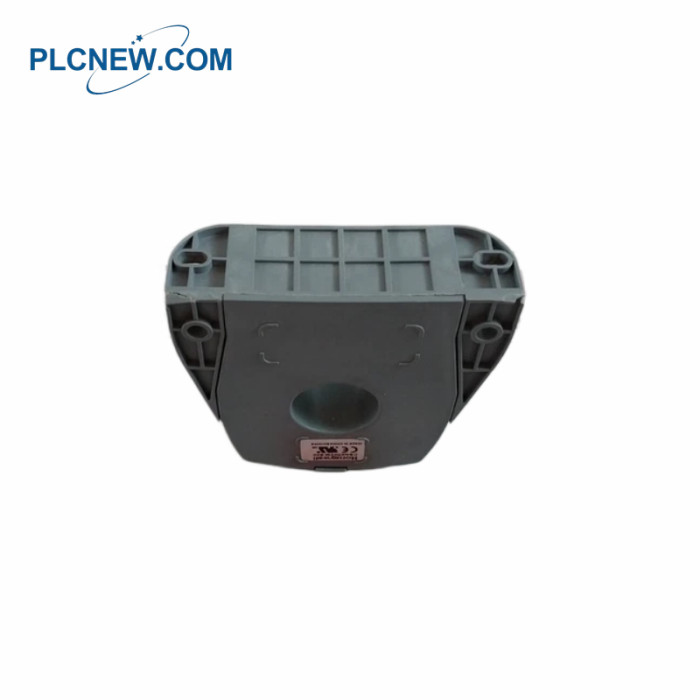

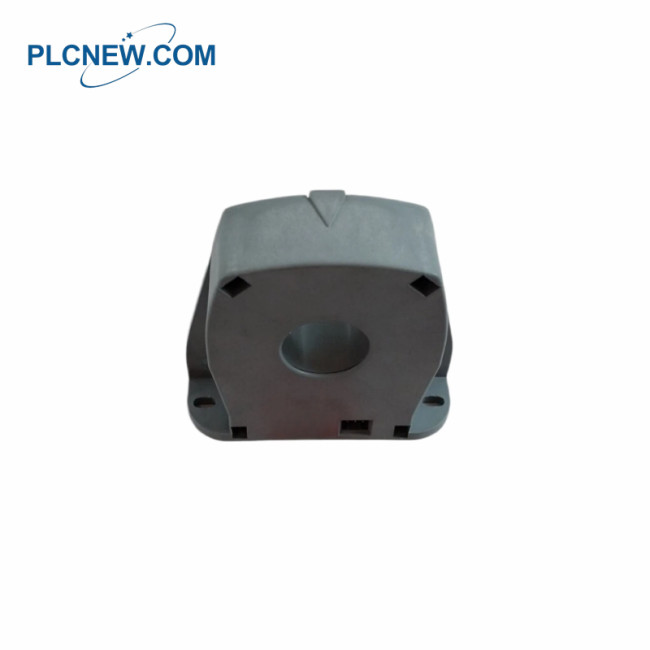

Honeywell CSNK500M-600 Closed Loop Current Transducer
Specifications
|
Model Number |
CSNK500M-600 |
|
Nominal Current (In) |
500 A.t rms |
|
Continuous Measuring Range |
0 to ±1200 A.t |
|
AC Peak Measuring Range |
0 to ±1275 A.t |
|
Turns Ratio |
1 / 5000 |
|
Accuracy at +25°C |
Max. ±0.5% of In |
|
Supply Voltage |
±15 to ±18 Vdc (±5%) |
|
Galvanic Isolation |
6 kV rms / 50 Hz / 1 min |
|
Zero Offset Current at +25°C |
Better than ±0.2 mA |
|
Thermal Drift of Offset Current (0°C–70°C) |
Better than ±0.3 mA |
|
Linearity |
Better than ±0.1% |
|
Response Time |
Better than 1 µs |
|
Bandwidth |
DC to 100 kHz |
|
dI/dt |
Better than 50 A/µs |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +90°C |
|
Current Consumption |
20 mA plus output current |
|
Secondary Internal Resistance (@ +70°C) |
50 Ω |
The CSNK500M is a current transducer based on the principle of magnetic compensation. It provides electronic
measurement of DC, AC or pulsed currents, and their combinations, with galvanic isolation between the primary
(high current) and secondary circuits.
The Honeywell CSNK500M-600 Current Transformer Sensor is a high-precision device designed for accurate current
flow measurement in various electrical systems. Ideal for industrial and commercial applications, this sensor ensures
reliable performance and long-term durability.
This cutting-edge sensor from Honeywell ensures accurate and reliable readings. The CSNK500M 600 is essential for
electrical systems requiring precise current monitoring. Its lightweight design and durable construction make it easy to
install and depend on for consistent performance.
Product Applications
Variable Speed Drives: Used in motor control systems, they provide precise current feedback to ensure stable speed
and torque.
Power Protection and Monitoring:
Overcurrent Protection: Prevents equipment damage caused by overcurrent in industrial circuits.
Ground Fault Detection: Monitors leakage or abnormal circuits.
Energy and Power Systems:
Uninterruptible Power Supply (UPS): Maintains current stability in power supply for telecommunications and data centers.
Welding Power Supplies: Precisely controls high-voltage and large-current in the welding process.
Automotive and Transportation:
Battery Management System (BMS): Monitors charging and discharging in electric vehicles or energy storage systems.
Industrial and Robotics:
Robotics System: Monitors the current consumption of joint drive motors.
Wattmeters: As a core component, used as a high-precision electric power measurement tool.
