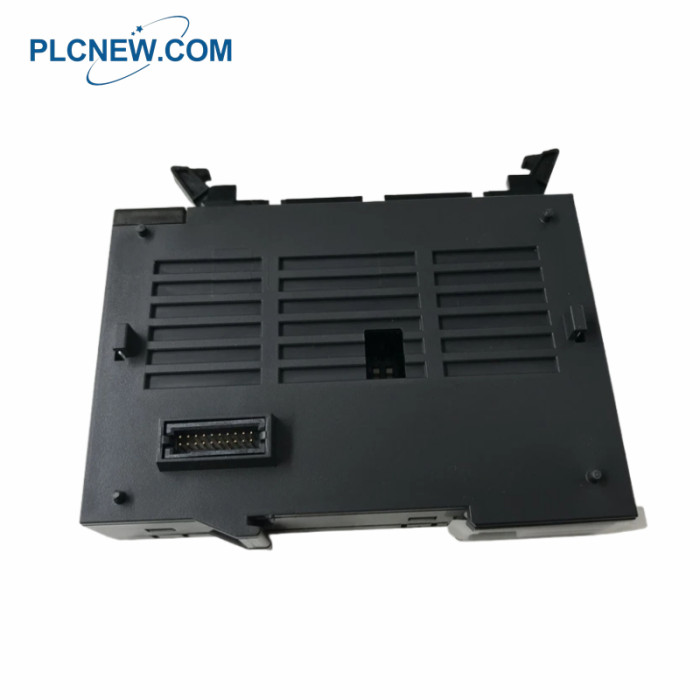

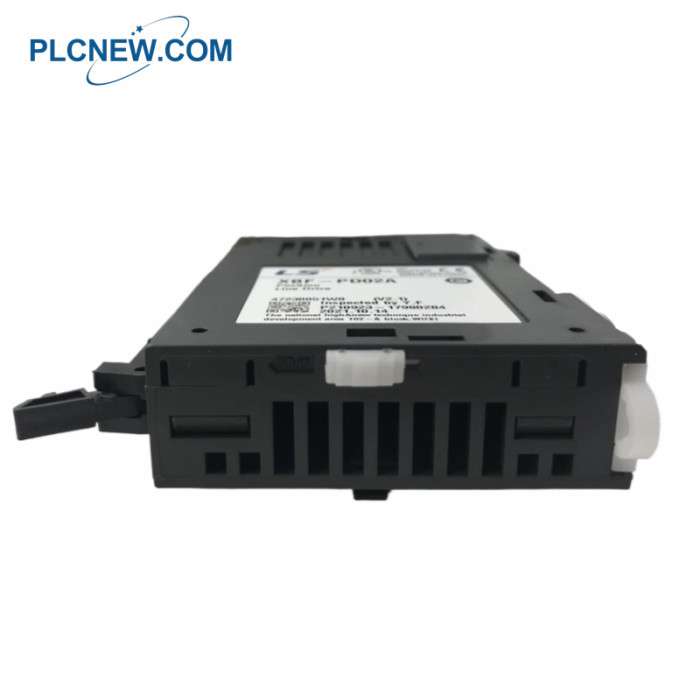

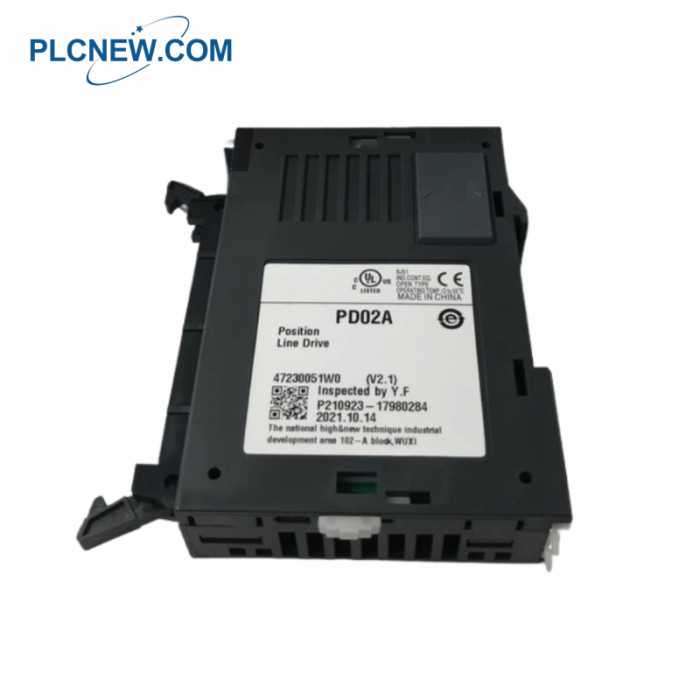

HONEYWELL MLF-PD02A Positioning Expansion Module
|
Contact Us |
|||
|
Sales: |
Phone/ |
Email: |
Address: |
|
Frida |
Siming District, Xiamen, Fujian, China |
||
|
Description |
Specification |
|
The MLF-PD02A is a 2-axis positioning expansion module designed for Honeywell Master 50 series systems, tailored for precision motion control applications. It supports line drive pulse output with a maximum speed of 2 Mbps and a connection length up to 10m, enabling reliable communication with servo or stepping drives. Offering multiple control modes—including position, speed, and switching controls between the two—and linear/circular interpolation, it meets diverse motion requirements, while 150 operation data entries per axis and absolute/incremental positioning methods provide flexible programming for complex tasks. |
Control Axis:2 axes Max Pulse Output:2 Mbps Max Connection Length:10m (32.8 feets) Positioning Data:150 operation data per axis Positioning Range:-2,147,483,648 ~ 2,147,483,648 (pulse) Speed Range:1 ~ 2,000,000 (pulse/sec) Acceleration/Deceleration Time:0 ~ 65,535ms (Asymmetric acceleration/deceleration supported) Max Encoder Input:200kpps (Line drive) Occupied I/O Points:Fixed type: 64 points Connection Terminal:40pin Connector Current Consumption:500mA Weight:80g |
|
