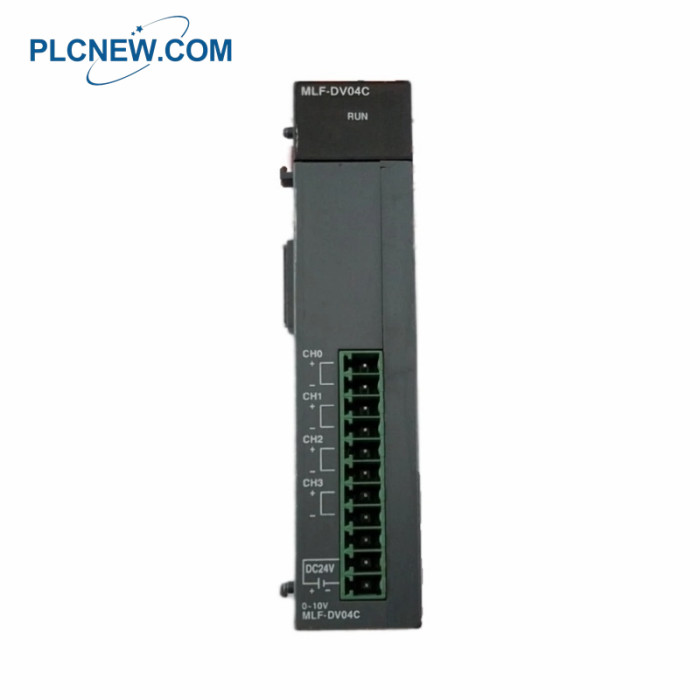

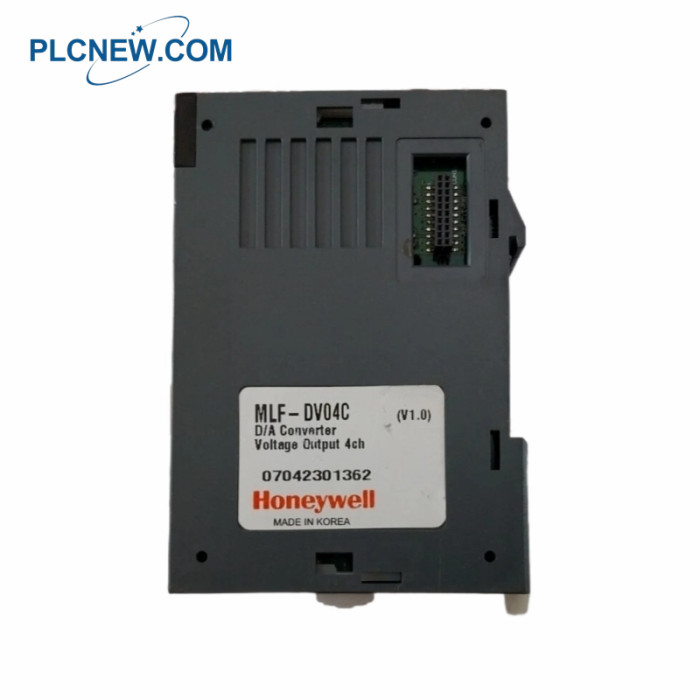

HONEYWELL MLF-DV04C Analog Voltage Output Expansion Module

Contact Us

Sales:

Phone/
WhatsApp:

Email:

Address:

Frida

+86-18965196563

sales17@amikon.cn

Siming District, Xiamen, Fujian, China

Description

Specification

The MLF-DV04C is a 4-channel analog voltage output expansion module engineered for Honeywell’s ML50 series systems, designed to deliver precise voltage signals for industrial control applications. It supports DC 0~10V and DC -10~+10V output ranges (requiring load resistance ≥ 2kΩ) with 12bit binary data output (unsigned 0~4000, signed -2000~2000), 1/4000 resolution, and ±0.2% full-scale accuracy at 25°C, ensuring high-precision control of devices like variable frequency drives or analog valves.

Output Points:4 channels
Analog Output Range:DC 0~10V, DC -10~+10V (Load resistance ≥ 2kΩ)
Digital Output Type:12bit binary data
Digital Output Range (Unsigned):0~4000; (Signed):-2000~2000
Resolution:1/4000 (2.5mV for DC 0~10V; 5mV for DC -10~+10V)
Accuracy:±0.2% of full scale (at 25°C)
Max. Conversion Speed:1.5msec/channel
Connection Terminal:11-point terminal block
Occupied I/O Points:Fixed type: 64 points
Current Consumption (DC5V Internal):105mA; (DC24V External):85mA
Supplying Voltage:20.4~28.8Vdc
Max. Connectable Modules:7sets (MLM series "S" type), 10sets (MLC series "H" type)
