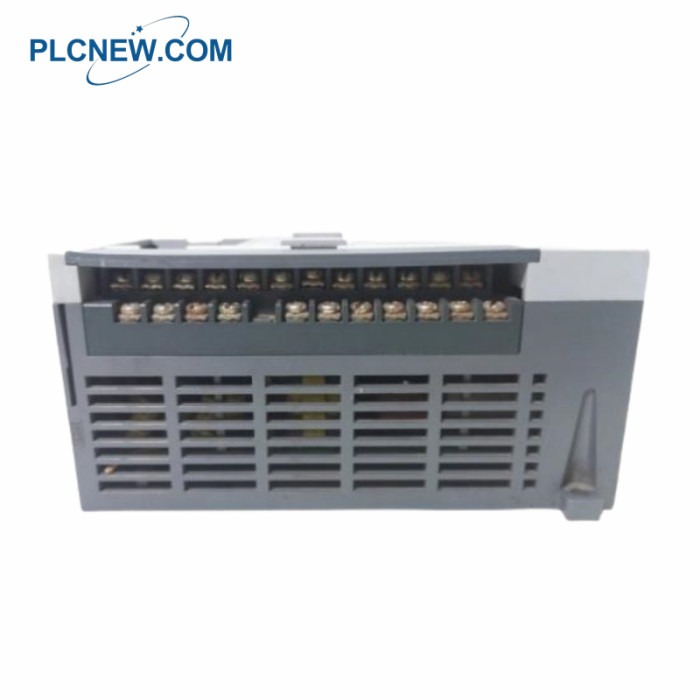

HONEYWELL MLC-DN32H/DC Digital Power Supply

Power supply type

DC 24V

Number of digital input points

16 points

Number of digital output (open-collector) points

16 points

Input rated voltage

DC 24V

Input operating voltage range

20.4-28.8 VDC

Input current per input point

4 mA

Input current for certain contacts (00-03)

7 mA

Input ON threshold

≥ 19 VDC

Input OFF threshold

≤ 6 VDC

Input resistance

~5.6 kΩ (contacts 00-03: ~3.3 kΩ)

Output rated load voltage

DC 12/24V

Output load voltage range

DC 10.2-26.4 V

Maximum load current per output point

0.5 A (some points lower, e.g. ~0.1 A for certain groups)

OFF leakage current

≤ 0.1 mA

Max voltage drop when ON

≤ 0.4 VDC

Response time OFF→ON

≤ 1 ms

Response time ON→OFF

≤ 1 ms
