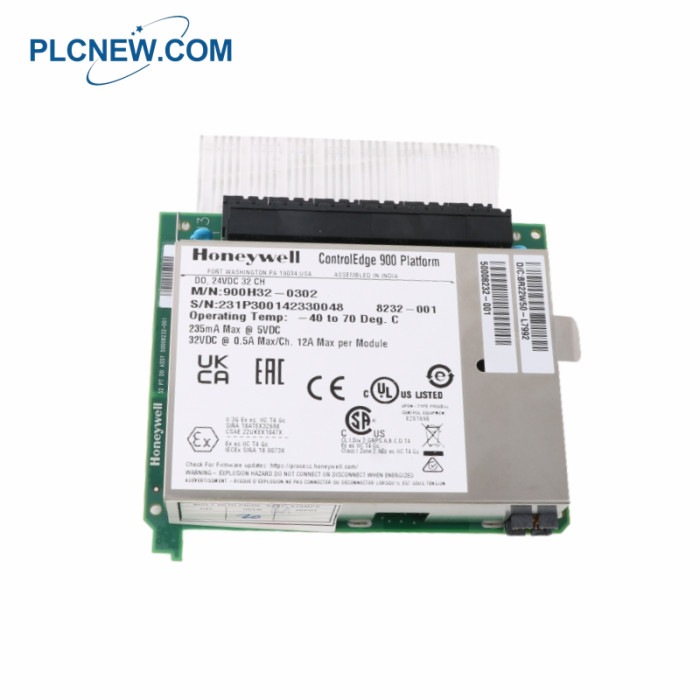

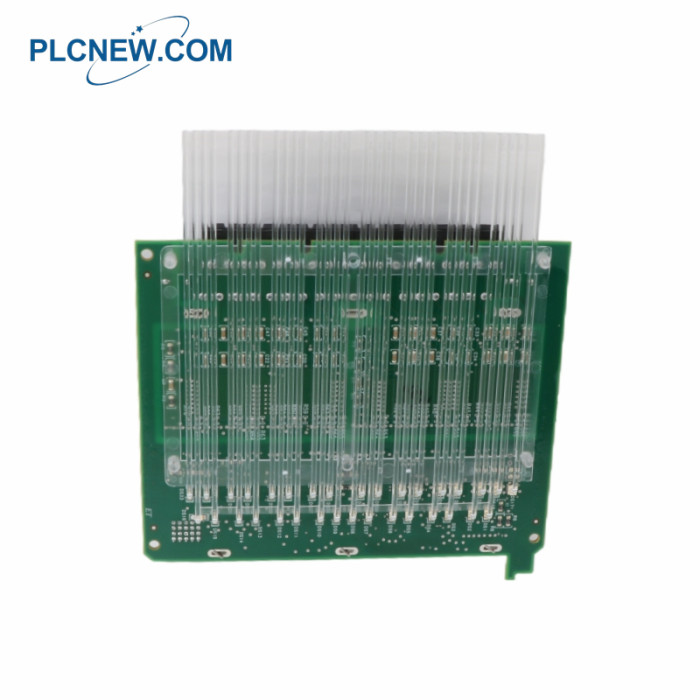

HONEYWELL 900H32-0302 Point Digital Output Module

HONEYWELL 900H32-0302 Point Digital Output Module

Start Your Order Today

Sales Name: Frida

/WhatsApp:+86-18965196563

:sales17@amikon.cn

Detailed Information

The DC digital Output module provides 32 outputs separated in to 2 groups of 16 channels each that are powered externally.

Each group has a pair of screw terminals for +V and COM connections. The outputs are high side switching (current sourcing) type.

Over current protection is provided for all outputs in 4 groups of 8 channels each. In case of short circuit for any output channel,

that whole group of 8 is switched off. Power cycling is not required to reset the module. There is a green LED state indicator

for each channel on the module to indicate when a digital output is ON.A green blinking status LED on the module indicates
when the module is being scanned. An amber blinking status LED indicates when channels are forced and a red status LED

when module diagnostics exist. Requires Euro style 36-terminal terminal block.

Dimension: 137mm H x 35.6mm W 5.4” H* x 1.4” W

Weight: 180g

Outputs per Module: 32 (current sourcing, high side)
Output Type: High side driver
Operating Voltage: 10.5 to 32 VDC
Peak Voltage: 32 VDC
ON Voltage Drop: 0.15 VDC @ 0.5A load
Maximum Load Current: 0.5A per point, 6A max per channel group, 12A max per module (resistive load)
Maximum Leakage Current: 0.15mA @ 32 VDC
Maximum Inrush Current: 2A for 10ms
Minimum Load: 0.0mA
OFF to ON Response Time: 6ms
ON to OFF Response Time: 6ms
Galvanic Isolation: 2 groups of 16 outputs
Overload Protection: Active Current Limiting (4 groups of 8 channels each)
Fuses: Electronic limiting
Power Supply Loading @5V: 235mA
Power Supply Loading @24V: 0mA
