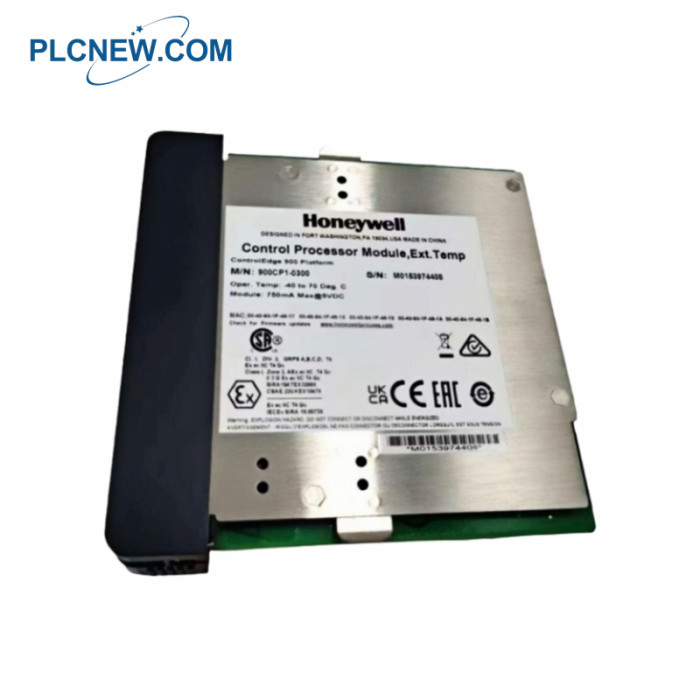

HONEYWELL 900CP1-0300 Control Processor Module

HONEYWELL 900CP1-0300 Control Processor Module

Inquire Now

Sales Name: Frida

Phone/WhatsApp:+86-18965196563                                                  Email:sales17@amikon.cn

Know the Products

Processor: Dual Core ARM® Cortex™-A9 Core (32 bit) 667 MHz
User Programming Memory (Flash): 256 MB
Running Memory (RAM): Supported (Hot Standby)
SD Card Support: 32GB Class 6 / Class 10 industry standard, 256MB with Error Correction Code
Real-Time Clock: 2 weeks of retention after a power loss
CPU Watchdog: CPU resets if error is detected
Nonvolatile Memory Data Life: 20+ years (no battery required)
Real-Time Clock Resolution: 1 ms
I/O Scan Time: 10 ms – 3000 ms (adjustable per control strategy)

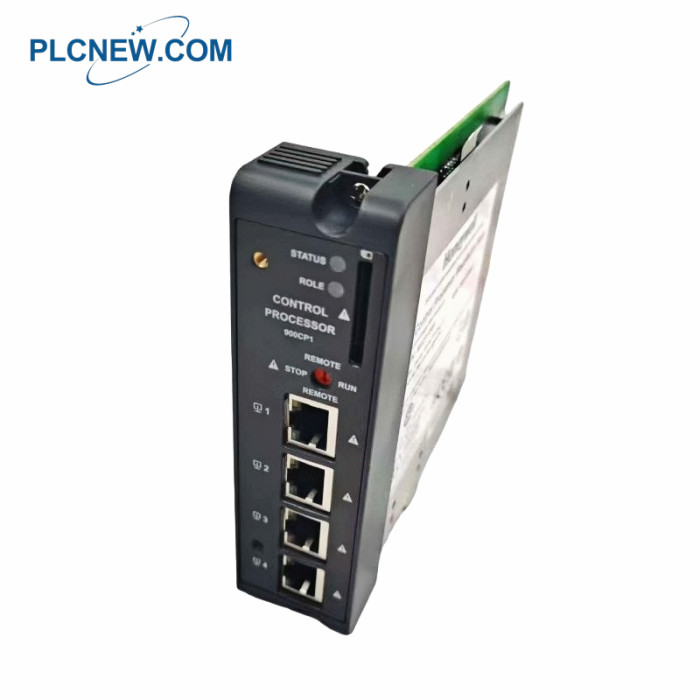

Status Indication: 2 LEDs, three color each, indicate the status and role of the CPM
Maximum I/O Modules per Controller: 144 (soft limit, depends on network usage)
Maximum Analog Channels per Controller: 2304
Maximum Digital Channels per Controller: 4608
Maximum Expansion I/O Racks for Non-Redundant Controller: 11
Maximum Expansion I/O Racks for Redundant Controller: 12
Command Execution Time: 85µs per 1000 commands in ST
Switchover Time: <100 ms
Datalog Rate: Configurable: 1s, 5s, 10s, 1min, 5min, 10min, 1hr
Datalog Timestamp Resolution: 1 ms
Ethernet Ports: 4
Network Port Speed: 10/100BaseTx, auto-detecting
Isolation: 1500 Volts RMS 1 minute, 60 Hz
Transient Voltage Suppression: 600W peak pulse power capability at 10×1000µs waveform, repetition rate: 0.01%
Diagnostic LEDs on Each Port: Yes
Max. Current @5V: 750 mA
Max. Current @24V: 0 mA
Heat Dissipation: 3.75 W
Dimensions: 137mm H x 38.1mm W (5.4" H x 1.5" W)
Weight: 320g
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 10% to 90% RH non-condensing
Maximum Altitude: 2000 Meters
