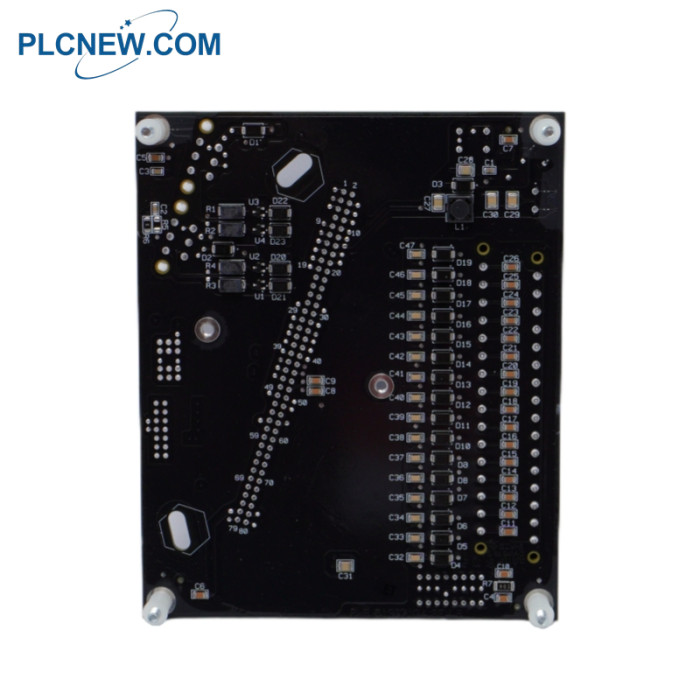

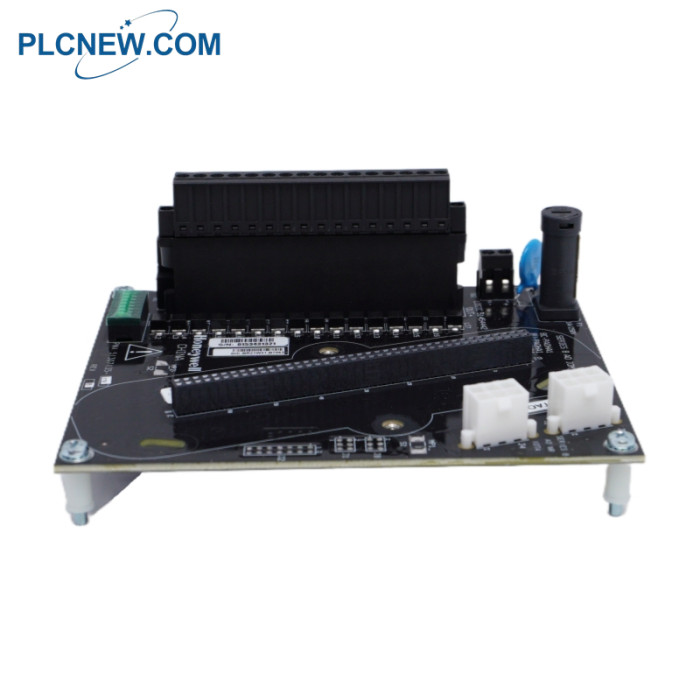

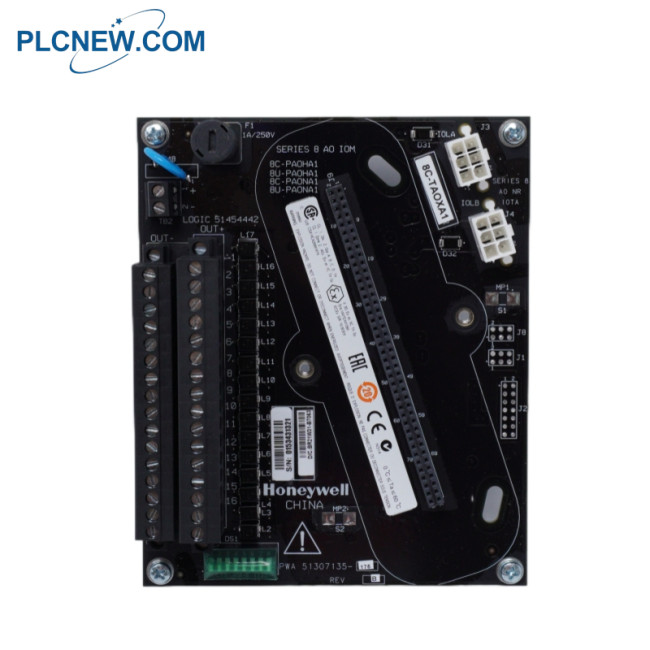

HONEYWELL 8C-TAOXA1 51307135-175 Analog Output IOTA

Welcome to Contact

Sales Name

Phone/WhatsApp

Email

Frida

+86-18965196563

Product features

I/O Type: Analog Output (AO), 4–20 mA
IOTA Module: 8C-TAOXA1 (Non-Redundant, Coated, 6”)
Compatible IOM: 8C-PAOHA1 (Analog Output with HART) / 8C-PAONA1 (Analog Output without HART)
Output Channels: 16 independent channels
Output Ripple: < 100 mV peak-to-peak at power line frequency across 250 Ω load
Output Temperature Drift: 0.005% of Full Scale per °C
Output Current Linearity: ± 0.05% of Full Scale nominal
Load Resistance: 50–800 Ω (with 24 V supply = 22–28 VDC)
Voltage Rating: 24 VDC nominal
Module Current Rating: 190–205 mA (depending on AO type with/without HART)
Resolution: ± 0.05% of Full Scale
Calibrated Accuracy: ± 0.2% of Full Scale at 25°C, including linearity
Directly Settable Output Current Range: 2.9 mA to 21.1 mA
Maximum Output Compliant Voltage: 16 V (at 22–28 VDC supply)
Maximum Open Circuit Voltage: 22 V
Redundancy Switchover Gap (0 mA to Field): 10 ms maximum (applies to redundant systems)
