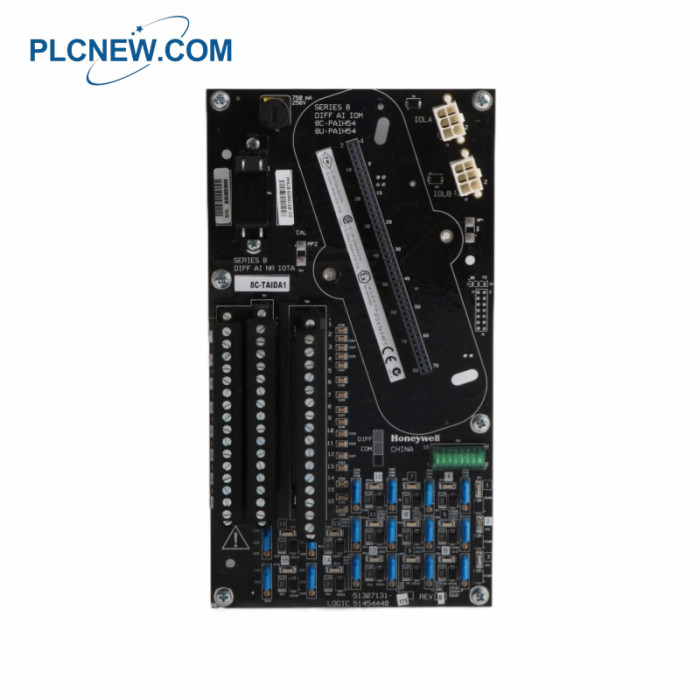

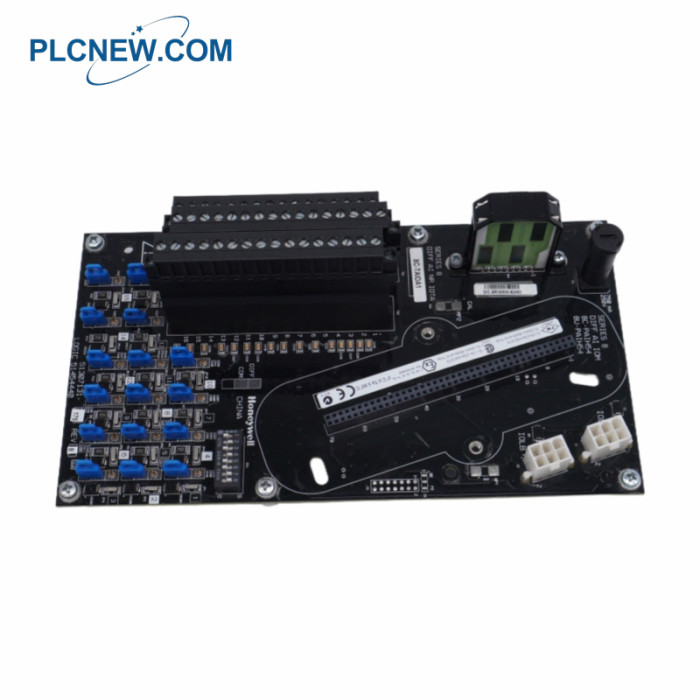

HONEYWELL 8C-TAIDA1 I/O Module
About Contact
Sales Name: Frida
Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn
About Product
The HONEYWELL 8C-TAIDA1 is an Input Output Termination Assembly (IOTA) specifically designed for use
with the 8C-PAIH54 Analog Input Module with HART (Differential Type). This IOTA provides the field wiring
termination, signal conditioning, and power distribution interface for the connected I/O module. It is a non-redundant
assembly with a 9-inch (228 mm) form factor and features conformal coating for protection against harsh industrial
environments (G3 per ISA S71.04). The 8C-TAIDA1 facilitates the connection of 16 differential or single-ended
analog input signals from field devices such as transmitters and sensors to the Experion Series 8 control system.
Compatible I/O Module: 8C-PAIH54 (Analog Input with HART, Differential)
Redundancy Support: Non-Redundant
Form Factor Size: 9 inches (228 mm)
Environmental Protection: Conformal Coated (G3 per ISA S71.04)
Input Channels: 16 Channels (All 16 Single Ended or Differential type)
A/D Converter Resolution: 16 bits
Input Range: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
Voltage Rating: 24 VDC
Module Current Rating: 310 mA
Common Mode Rejection Ratio, dc to 60 Hz (500 Ω source imbalance): 70 dB
Common Mode Voltage, dc to 60 Hz: -6 to +5 V peak
Normal Mode Rejection Ratio, at 60 Hz: 19 dB
Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz
Crosstalk, dc to 60 Hz (channel-to-channel): -60 dB
Input Impedance (voltage inputs): > 10 MΩ powered
Maximum Normal Mode Input (any input referenced to common, no damage): ± 30 Volts
Input Scan Rate: 50 ms
Hardware Accuracy (@ CMV = 0 V): ± 0.075% of full-scale (23.5°± 2°C) ± 0.15% of full-scale (0 to 60°C)
