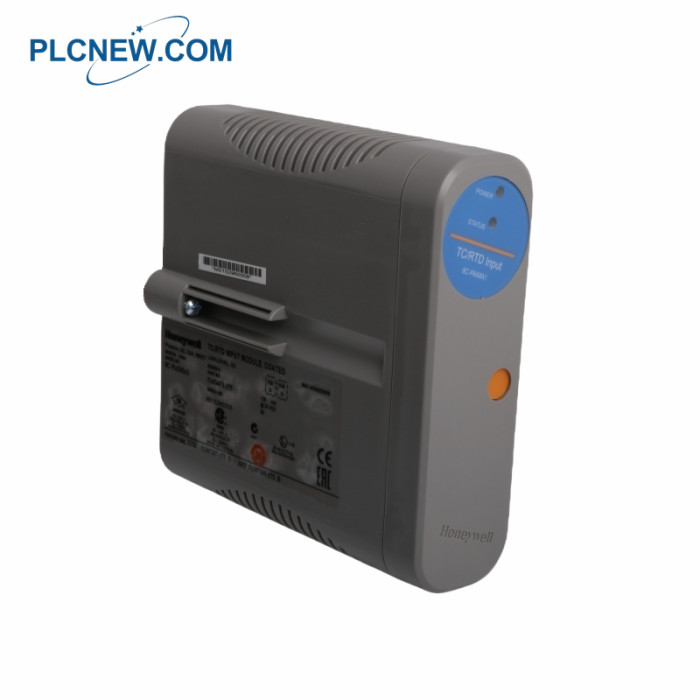

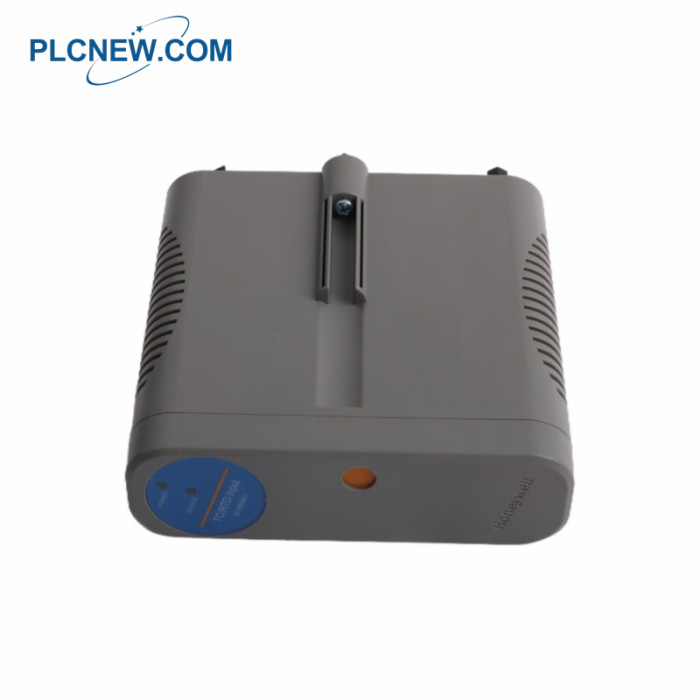

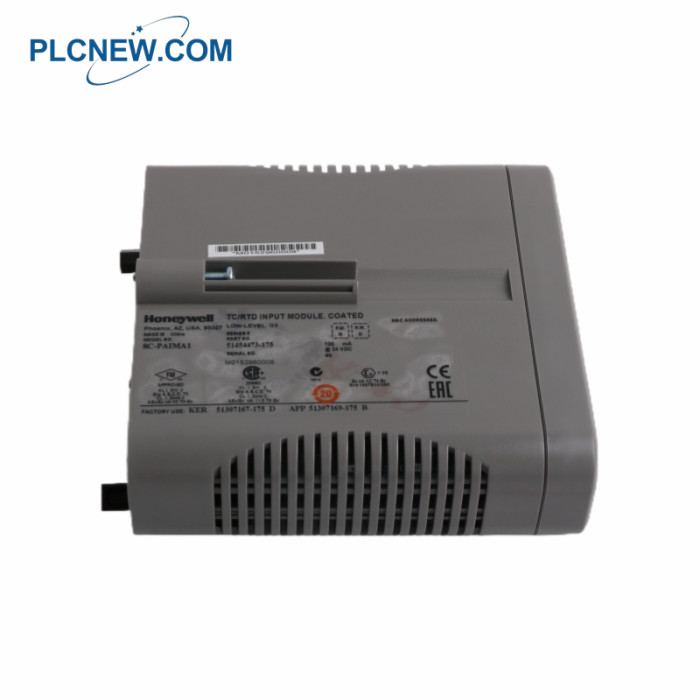

HONEYWELL 8C-PAIMA1 I/O Module
◆Fast Speed & Best Service
Sales Name: Frida
Phone/WhatsApp:+86-18965196563
Email:sales17@amikon.cn
◆Description & Specifications
The Low Level Analog Input (LLAI) Module supports up to 16 RTD and thermocouple (TC) channels for precise
temperature measurement. It features Open Sensor Detect (OTD) to prevent invalid process variable (PV) values
from triggering inappropriate control actions. During OTD cycles, PVs are sampled and held without added delays,
ensuring reliable and continuous system operation while detecting and signaling input channel soft failures when necessary.
Voltage Rating: 24 VDC
Module current rating: 120m A
Input Channels: 16 fully-isolated channel-to-channel
Input scan rate: 1 second fixed by IOM, (up to 16 channels/sec max.)
Channel bandwidth: 0 to 4.7 Hz (-3 dB)
Nominal input range (TC only): -20 to +100 millivolts
Voltage, channel-to-channel, dc to 60 Hz: +/-33 VDC or VAC RMS
Voltage, channel-to-shield, dc to 60 Hz: +/-250 VDC or VAC RMS
Crosstalk, dc to 60 Hz: 80 dB (120 dB at 50 and 60 Hz)
NMRR at 50/ 60 Hz: 60 dB min
Long term drift: 500 ppm
Line frequency integration Fixed selection of 50 Hz or 60 Hz RTD sensor excitation current: 1 milliamp
Cold Junction Compensation Range:-20 to +60 deg C (± 0.5 deg C typical)
TC Linearization Accuracy: ± 0.05 Ω / deg C
◆Ordering Information
Payment Term: T/T
Warranty: 12 month
Shipment: Fedex,DHL,TNT or UPS (US Postal Service) ARAMEX,CHIRLINE
Delivery: Shipped in 3 days after payment
Products Condition: NEW & ORIGINAL
Minimum Order Quantity: 1 Piece
