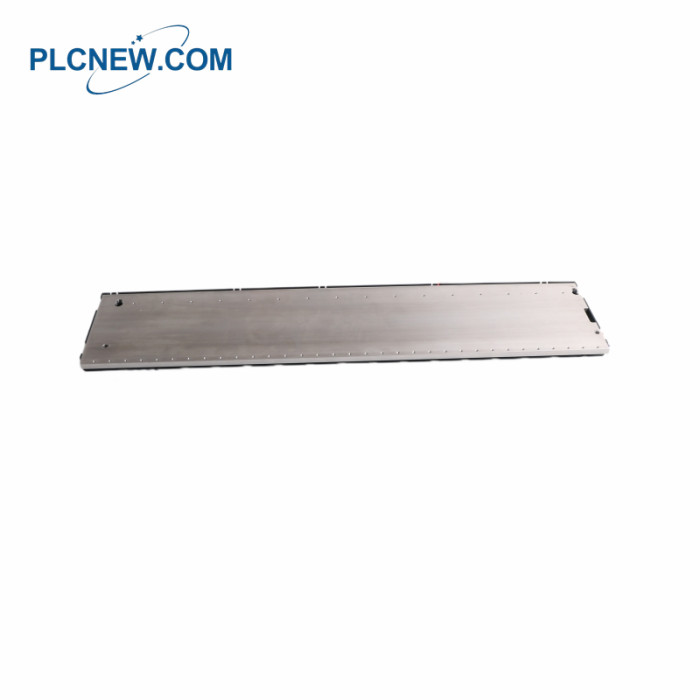

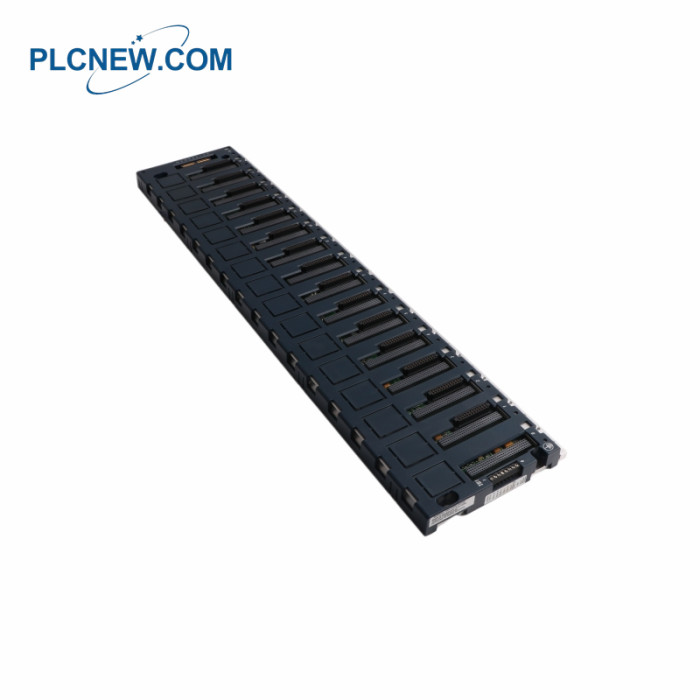

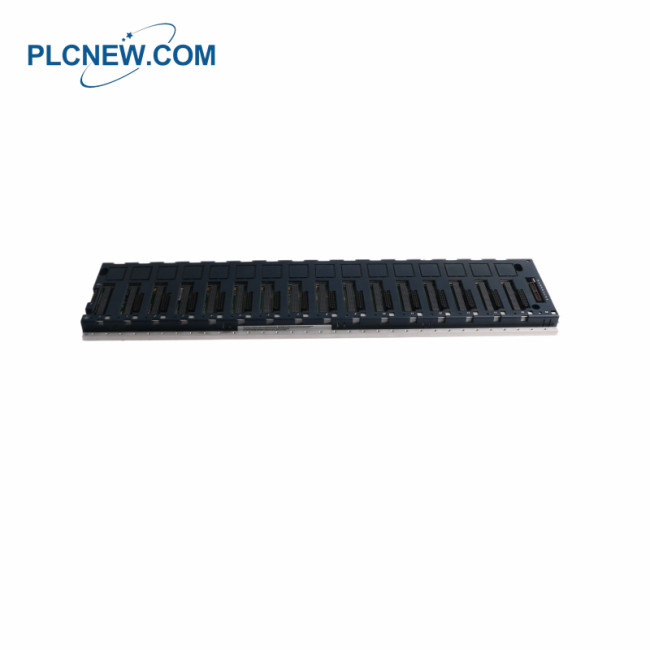

GE IC695CHS016 16-Slot Universal Backplane

GE IC695CHS016 16-Slot Universal Backplane

Details of the module

Manufacturer: GE Fanuc
Product Line: RX3i PacSystem
Series: PACSystem RX3i
Part Number: IC695CHS016
Weight: 4.56 lbs (2.07 kg)
Product Description: Universal Backplane
Compatibility: RX3i PACSystem, Series 90-30 I/O, and option modules
Supported Modules: RX3i and Series 90-30 I/O and option modules
Mounting: Rack
Number of Slots: Sixteen (16)
Type: Universal Backplane
Bus Connectors: PCI Bus / Serial Bus
Input: +24 Volts DC
Internal Power Used: 600 mA at 3.3 VDC, 240 mA at 5 VDC
Input Terminals: TB1;
Terminal 7: Isolated 24 VDC,
Terminal 8: Isolated Ground

The IC695CHS016 is a Sixteen (16) slot universal backplane that is part of the PACsystem RX3i Programmable Controller

(PAC) series. This backplane from Emerson is used to host Universal controller and I/O base modules and comes with

integral support for Peripheral Component Interconnect (PCI) and High-speed serial bus, enabling support for RX3i modules

as well as the legacy Series 90-30 PLC series. The IC695CHS016 measures 23.7 (w) x 5.57 (h) x 5.80 (d) or 601.98 (w)

x 141.5 (h) x 147.32 (d)) and consumes 600 mA @ 3.3 VDC and 240 mA @ 5 VDC that is supplied by the RX3i power

supply. This baseplate also supports hot-swapping of modules, which contributes to the availability of the system and

ease of maintenance. The IC695CHS016 backplane may also be termed as chassis, rack or baseplate by some

personnel. Whatever term is used, the IC695CHS016 provides module connectivity to the backplane, power distribution

and hosts internal communication of each module. Additionally, this baseplate has the necessary interface for

interconnection of local expansion base, allowing additional module to be installed and connect to the same bus that is

hosted by the IC695CHS016. The IC695CHS016 support horizontal mounting only. It comes with a terminal strip for wiring

of the isolated 24 VDC input and the isolated ground as well. It is recommended to be fastened to the subpanel of

an enclosure rated NEMA/UL Type 1 enclosure or an IP20 rating (IEC60529) at least. Minimum installation clearance must

be followed to allow natural air cooling. Required minimum mounting clearance is 102 mm or 4 inches on all sides of

the backplane.

Frequently asked questions：
1.How many slots does the IC695CHS016 have?
The IC695CHS016 has Sixteen (16) module installation slots.
2.Does the IC695CHS016 support PCI and serial bus?
Yes. PCI and serial bus are available to this backplane.
3.Does the IC695CHS016 support module hot-swap?
Yes. The IC695CHS016 support hot-swapping of modules.
