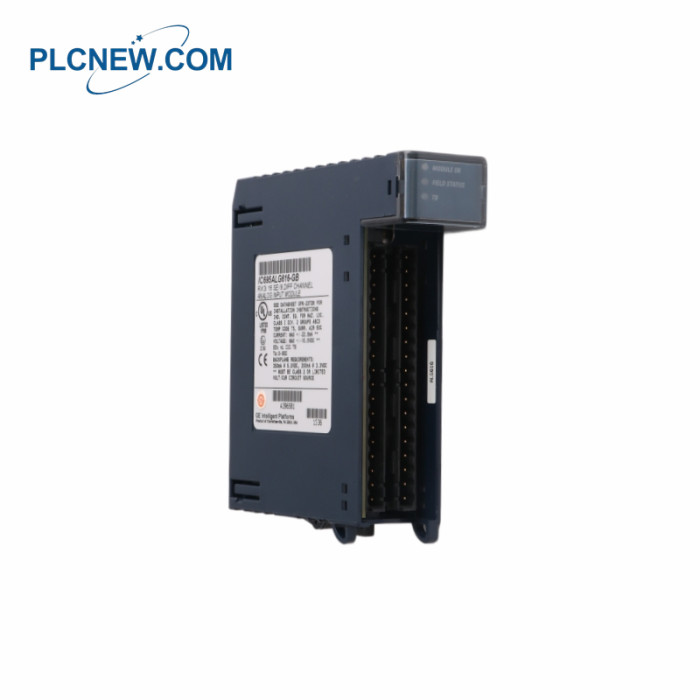

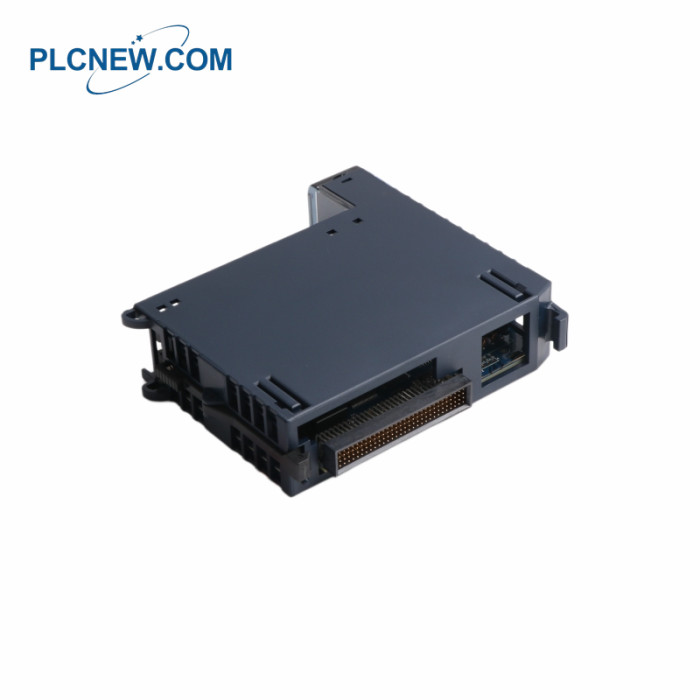

GE IC695ALG616 Analog input module

GE IC695ALG616 Analog input module

Details of the module

Part No.: IC695ALG616
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Number of Inputs: 16 single-ended or 8 differential
Internal Power: 3.3V:450mA; 5V: 600 mA
Number of Slots: 1
Current Range:0-20 mA,4-20 mA,+/-20 mA
Product Type: Analog Input module
Availability: In Stock
Series: RX3i

The IC695ALG616 is an analog input module that is manufactured by Emerson , formerly by GE Intelligent Platforms

(GE IP). This module features may provide Sixteen (16) analog input channels if configured as single-ended inputs or

Eight (8) analog inputs for differential wiring. It comes with a built-in Analog to Digital Converter (ADC) with output

conversion resolution of 24-bits. The IC695ALG616 input channels is compatible of being wires with analog current and

voltage signals. Accepter Current signals by this module include 0 to 20mA, 4 to 20mA, ± 20mA current signals and ±10V,

0 to 10V, ±5V, 0 to 5V, 1 to 5V voltage signals. The converted analog data is saved as floating point 32-bit IEEE data or

16-bit integer using a 32-bit register. Each channel of this module has configurable channel filters to stabilize and

minimize fluctuation to become useful to the process. Configurable input filters include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz

and 500Hz. Parameters of this module are configured using the Proficy Machine Edition (PME) programming software.

Frequently asked questions：
1.What is IC695ALG616?
It is an analog input module developed by GE under RX3i series.
2.What are the power requirements?
It operates within a voltage range of -10 to +10 Volts and requires an external power supply voltage rangeof

18 to 30 Volts DC.
3.Where can the IC695ALG616 module be installed?
It is designed to be installed on the RX3i Universal Backplane. It is compatible with various terminal blocks, such

as box-style, extended box-style, spring-style, and extended spring-style terminal blocks
