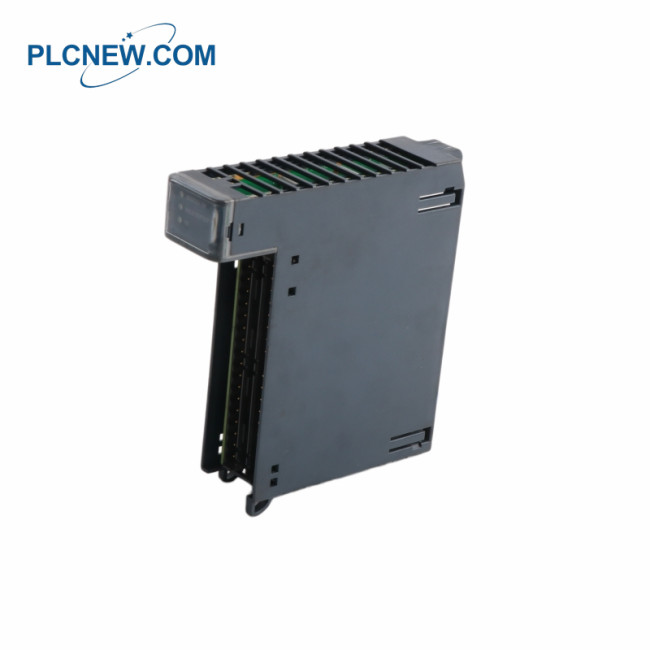

GE IC695ALG508 RTD Input Module

GE IC695ALG508 RTD Input Module

Details of the module

Manufacturer: GE Fanuc
Product Line: RX3i PacSystem
Series: PACSystem RX3i
Part Number: IC695ALG508
Weight: 0.56 lbs (0.26 kg)
Product Description: Resistance Temperature Detector (RTD) Input Module
Module Type: RTD Input Module
Number of Channels: Eight (8), isolated, differential
Number of Inputs: 8 Differential Inputs
Internal Power: 3.3 V @ 400 mA and 5.1 V @ 200 mA
RTD Wiring: 2, 3, or 4-wire RTD types
Range (Ohms): 250 / 500 / 1000 / 2000 / 3000 / 4000
Resistance Inputs: 0–260, 0–525, 0–1050, 0–2100, 0–3150, 0–4200 ohms
Power Dissipation: 2.5 W max
Measurement Units: Degrees C or F, or Ohms
Operating Temperature: 0 to 60 °C
Configurable Notch Filters: 2.3 Hz to 28 Hz
Storage Temperature: -40 to 85 °C

The IC695ALG508 input module is an isolated RTD input module that has been designed by GE Fanuc . This module

has been exclusively designed to operate with the RX3i PACSystems mid-range controllers. The RTD input module's

main objective is to enable the direct connection of 2-wire and 3-wire RTD temperature sensors without the need for

using external signal-processing devices such as transducers and transmitters. All the processing of the RTD signals

is performed by using this module. The GE Fanuc IC695ALG508 isolated RTD input module comes with 8 isolated RTD

input channels. Each one of these channels can be individually configured for different RTD or resistance applications.

Frequently asked questions：

1.What is an IC695ALG508?

The IC695ALG508 is an 8-Channel, Isolated, Resistance Temperature Detector Input module from the GE

Fanuc RX3i Series.
2.What does IC695ALG508 do?
This module provides 8, isolated differential RTD input channels.
3.Does this module support direct input of resistance values?
Yes. Acceptable resistance values are 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms.
