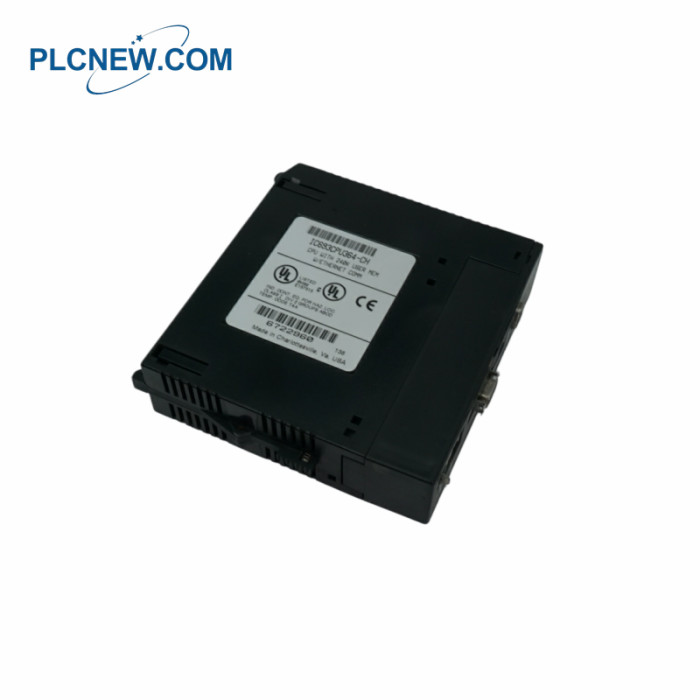

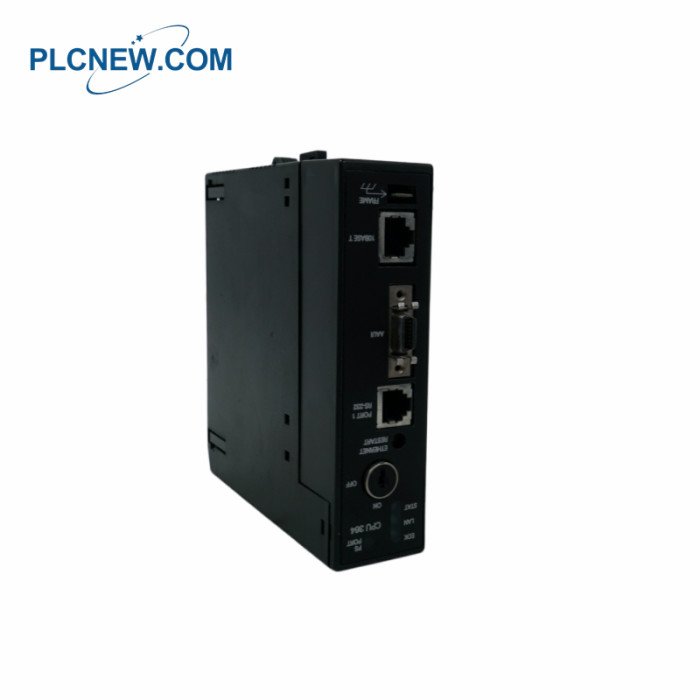

GE IC693CPU364 CPU module
Details of the module
Manufacturer: GE Fanuc Emerson
Product Type: CPU module
Product Line: Series 90-30
Part Number: IC693CPU364
Weight: 1.69 lbs (0.77 kg)
Serial Port: RS-485 (via power supply)
User Memory: 240K Bytes
Operating Temperature: 0 to 60 °C (32 to 140 °F)
CPU Type: Single slot CPU module with embedded Ethernet Interface
Processor Speed: 25 MHz
Register Memory: 240 KB
Power Requirements: 1.51 Amps from +5 VDC supply
The IC693CPU364 is a Controller module from the Series 90-30 product family. This controller is manufactured by GE
Fanuc featuring One (1) Ethernet interface, 240KB user memory, 80386EX processor with processor speed of 25 MHz
and typical scan rate of 0.22 ms per 1K of logic for Boolean contacts.
This controller supports up to 2,048 Discrete inputs, 2,048 Discrete outputs, up to1,280 bits of internal discrete global
memory, 4096 internal coils, 256 bits of temporary output coils, Configurable Analog Inputs in 128 word increments from
128 to 16,384 words with Logicmaster software and from 128 to 32,640 words with Control version 2.2 and Analog
outputs that are configurable in 128 word increments from 128 to 16,384 words using Logicmaster programming software
and 128 to 32,640 words when using Control version 2.2.
Frequently asked questions：
1.What is the supported transmission speed of the ethernet port of the IC693CPU364?
The embedded Ethernet port supports 10 Mbps communication speed.
2.What is the maximum number of backplates does the IC693CPU364 support?
The IC693CPU364 supports a total of Eight (8) backplates.
3.What are the supported memory type of the IC693CPU364?
The IC693CPU364 supports RAM and Flash memories.
