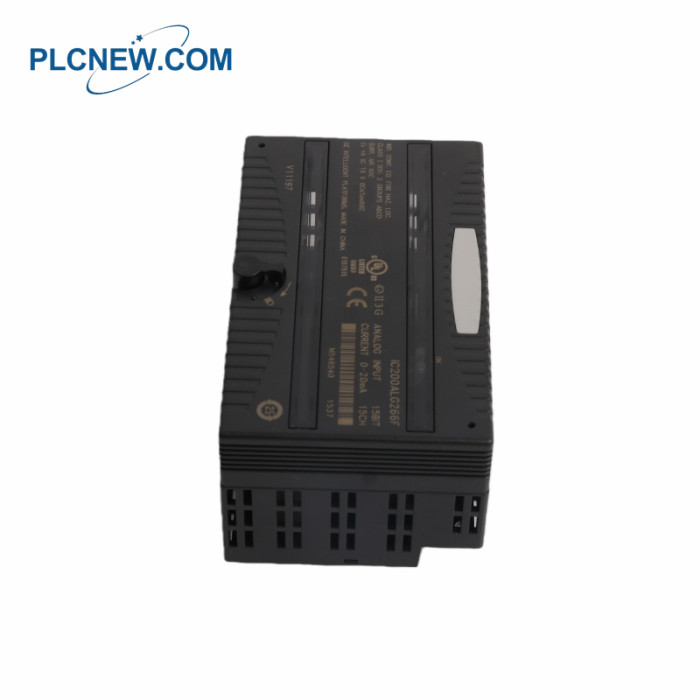

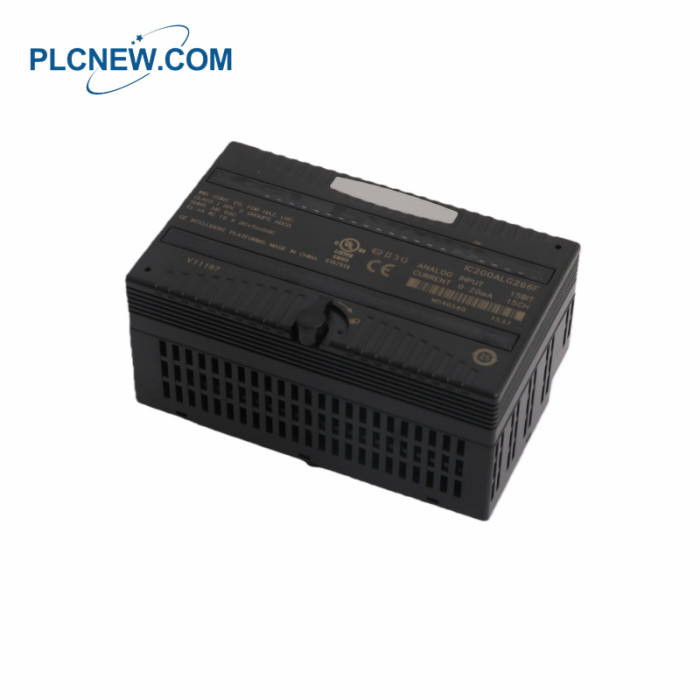

GE IC200ALG266 Analog input module

GE IC200ALG266 Analog input module

Product Details

Manufacturer: GE Fanuc
Product Line: VersaMax
Part Number: IC200ALG266
Weight: 0.25 lbs (0.11 kg)
Product Type: Input Module
Channel: 15 single-ended (one group)
Number of Channels: 15
Wiring Configuration: Single-ended
Input Signal, Nominal: -10 VDC to +10 VDC
Compatible Signals: -10 VDC to +10 VDC
Isolation: 250 VAC continuous; 1500 VAC for 1 minute
LED Indicators: OK LED
Analog Resolution: 15 bits
Digital Resolution: 0.3125 mV = 1 count
Input Impedance: 100 kΩ
Input Current: 4 to 20 mA
Internal Supply Voltage: 5 VDC from PLC backplane
Backplane Current Consumption: 5 V: 100 mA maximum; actual 150 mA max
Update Rate: 7.5 ms, maximum
Filter Response (3 dB Corner Freq): 32 Hz ±20%
Accuracy: 0.3% typical, 1% maximum

The IC200ALG266 is a VersaMax analog input module. This module is mainly used in distributed I/O architecture and

utilized to interface analog measuring instruments and feedback devices that generate signal voltage range of 10

VDC to + 10 VDC. This input module comes with an analog to digital signal conversion resolution of 15-bits or

0.3125mV per count. The IC200ALG266 is powered by the backplane power supply with current draw of 150 mA,

maximum. It does not require an external power supply to activate each input channels as the embedded Fifteen

(15) analog input channels support sink wiring configuration. This module has accuracy of +/-0.3% typical of full

scale, +/-0.5% maximum of full scale at operating temperature of 25 Degrees Celsius and +/-1% maximum of full

scale at 60 Degrees Celsius. The individual channels of the IC200ALG266 is capable of detecting failure in the conversion

of the analog signal. This happens when the AD converter delivers an output that is greater than 6% of the full-scale value. This error is reported to the CPU which can be represented to partner Human Machine Interface (HMI) and Supervisory

Control and Data Acquisition (SCADA) systems as Fault or Bad signal quality. The IC200ALG266 has software configurable

input state in reaction to CPU stop or module error. These options include default or last state operation which is applicable

in implementing safe start-up especially in the event of power interruptions. Each input channels has filter response of

32 Hz +/-20% with channel update rate of 7.5 ms.
