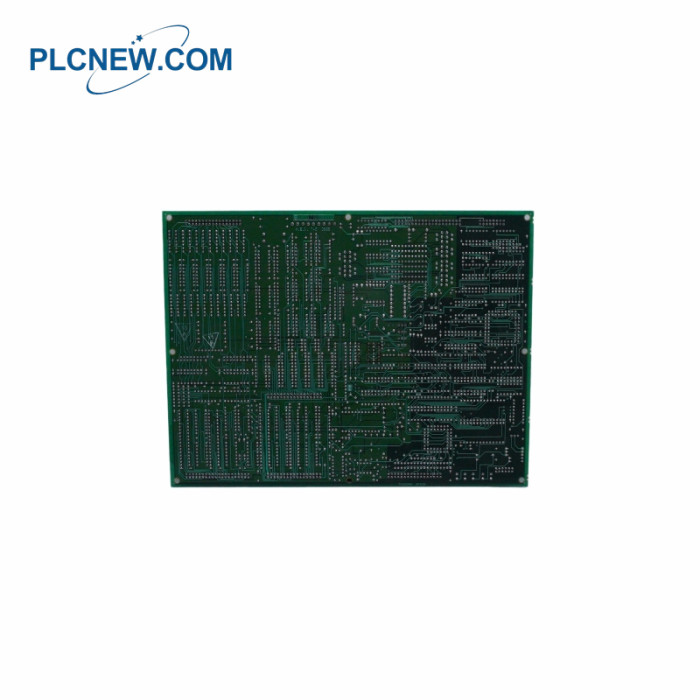

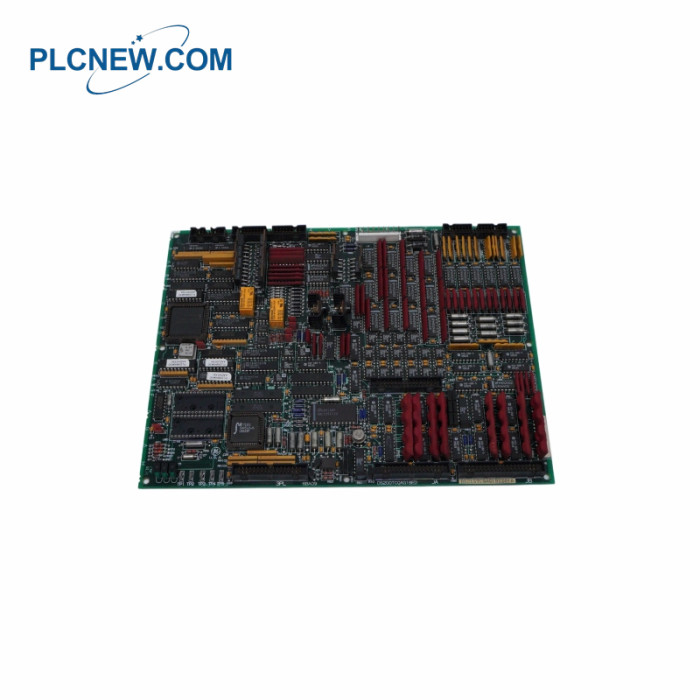

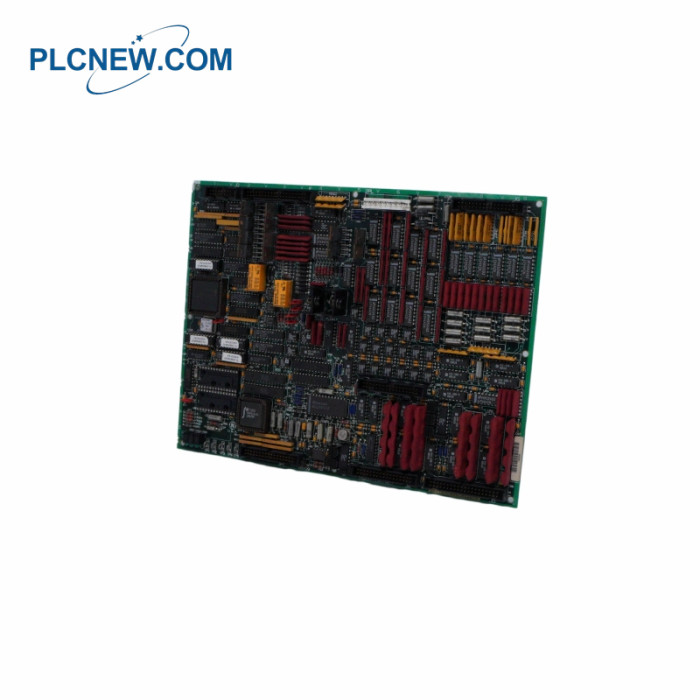

GE DS200TCQAG1BFD DS215TCQAG1BZZ01A Analog I/O Board

GE DS200TCQAG1BFD DS215TCQAG1BZZ01A Analog I/O Board

Specifications

DS200TCQAG1BFD DS215TCQAG1BZZ01A is an Analog I/O Board manufactured and designed by General Electric as

part of the Mark V LM Series used in turbine control systems. The Analog I/O Board (TcQA) scales and conditions a

large number of the analog signals that terminal boards mounted on the I/O cores R1, R2, and R3 read in. Included in

this group of signals are the LvDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs,

vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. On the STCA board,

some of the signals are written via the 3PL connector. Through the JE connector, the TCQc board receives and

transmits generator and line signals. The TcQA board scales and conditions input signals that are 420 mA, including

the fuel flow pressure and compressor stall-detect signals.

Product Applications

Thermal and Gas-fired Power Plants: As a core component of the Mark V control system, it controls the operation of

large gas turbines and steam turbines. It directly processes key analog signals such as turbine speed, bearing

temperature, and fuel valve position.
Upstream/Midstream Oil and Gas Industry: Deployed in the power system control of large natural gas pressurization

stations, long-distance pipeline pumping stations, and offshore drilling platforms, ensuring the continuous and stable

operation of large compressors and drive turbines.
Large Petrochemical and Refinery Plants: Used to control industrial turbine machinery, which is the core power source,

in complex chemical processes, coordinating the inputs and outputs of various regulating valves and analog sensors.
Heavy Steel and Metallurgical Industry: Applied to applications requiring high-reliability industrial control, such as blast

furnace blower units and large rolling mill drive control systems.
