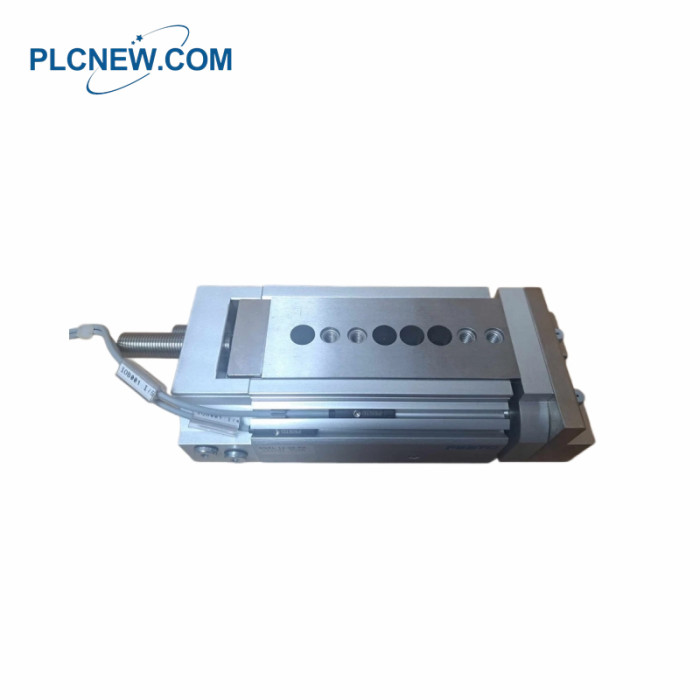

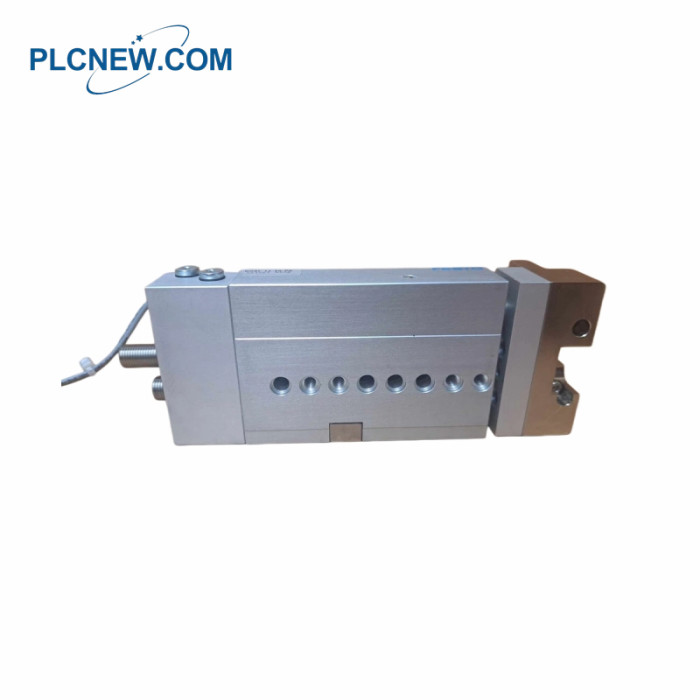

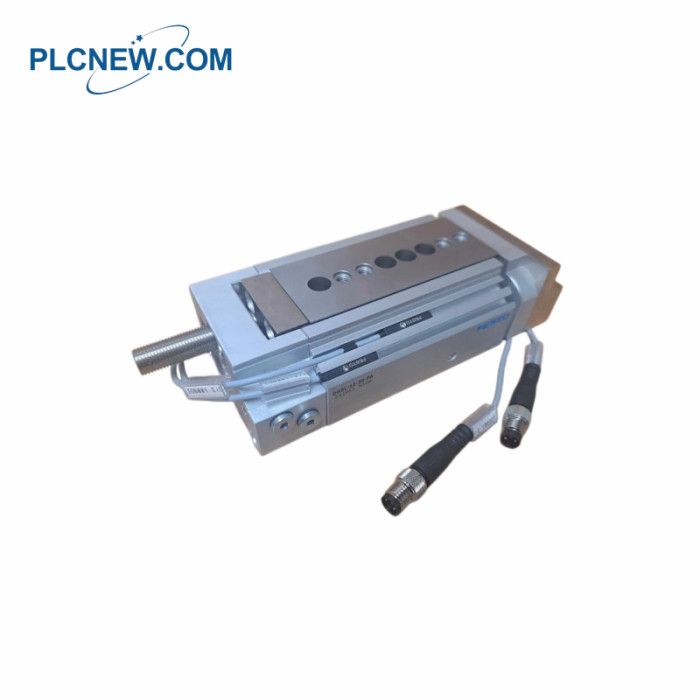

FESTO DGSL-12-30-PA Slide type cylinder
Specifications
|
Part Number |
DGSL-12-30-PA |
|
Operating Pressure |
0.1～0.8 MPa（1～8 bar） |
|
Max Speed |
0.8 m/s |
|
Repetition Accuracy |
0.3 mm |
|
Operation Type |
Double-acting |
|
Ambient Temperature |
0℃～60℃ |
|
End Position Impact Energy |
0.25 Nm |
|
Cushioning Length |
1 mm |
|
Max Radial Force Fy |
1075 N |
|
Max Radial Force Fz |
1075 N |
|
Max Moment Mx |
15 Nm |
|
Max Moment My |
10 Nm |
|
Max Moment Mz |
10 Nm |
|
Return Stroke Theoretical Force @0.6 MPa(6 bar/87 psi) |
104 N |
The Festo DGSL-12-30-PA Mini Slide is a compact pneumatic linear actuator designed for precise guiding and positioning
tasks in automated machinery. Featuring a 30 mm stroke and a ball bearing cage guide system, it delivers smooth motion,
high load capacity, and excellent repeatability. The double-acting actuator operates with compressed air pressures from
0.1 MPa to 0.8 MPa and provides theoretical forces up to 121 N at 6 bar. Its compact aluminum construction and
stainless-steel piston rod make it suitable for space-constrained applications, including assembly equipment, material
handling systems, electronics manufacturing, and packaging machinery. The integrated proximity-switch position
detection capability further enhances control accuracy and system reliability.
Product Applications
Electronics and Semiconductor Industry: This is the primary application area for this slide. It is used for
high-precision positioning, transfer, and mounting of tiny components such as chips, microcapacitors, and LED beads.
Automotive and Parts Manufacturing: On automotive electronics assembly lines (such as instrument panels, center
console buttons, and sensors), it is responsible for the precise insertion, mating, and inspection of components.
Lithium Battery and New Energy Manufacturing: Used in pouch and cylindrical battery production lines for tasks such
as tab cutting, adhesive application, and precision movement of injection valves.
Food Packaging and Consumer Goods Industry: Serves as an actuator in lightweight material sorting lines, cosmetic
box labeling, and bottle cap locking equipment.
