Home>EMERSON>EMERSON PR6423/015-040 CON021 Eddy Current Sensor

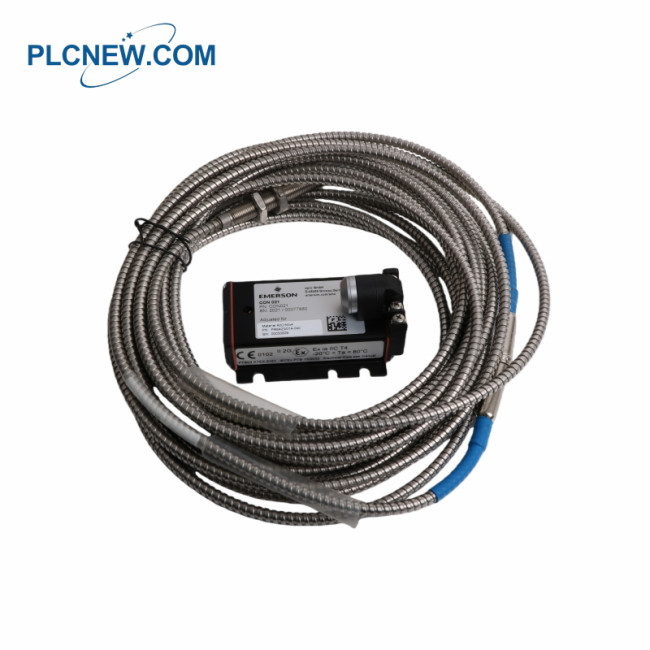

EMERSON PR6423/015-040 CON021 Eddy Current Sensor

EMERSON PR6423/015-040 CON021 Eddy Current Sensor

US$ 1.00

Our advantages


1.High quality


2.Prompt Delivery


3.We provide a large number of brand-name parts.


4.We have experienced staff and extensive test facilities.


5.There are many goods in stock.


6. We only provide the original new items, 100% make sure the best quality!

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
EMERSON PR6423/015-040 CON021 Eddy Current Sensor
color:red,size:xxl
Subtotal: US$ 0
View My Cart
    • Product Name: EMERSON PR6423/015-040 CON021 Eddy Current Sensor
    • Item NO.: 3476631
    • Weight: 1 kg = 2.2046 lb = 35.2740 oz
    • Category: EMERSON
    • Creation Time: 2025-12-04
    • EMERSON PR6423/015-040 CON021 Eddy Current Sensor
    • The EMERSON PR6423/015-040 CON021 is a high-precision, non-contact eddy-current
    • displacement sensor system

    EMERSON PR6423/015-040 CON021 Eddy Current Sensor


    Product Details

    Probe Tip Diameter: 8 mm
    Linear Measurement Range: Approximately 2 mm
    Initial Air Gap: About 0.5 mm
    Sensitivity (ISF): Around 8 V/mm (≈ 203 mV/mil)
    Linearity (DSL): ±0.025 mm typical
    Minimum Shaft Diameter: ≥ 25 mm
    Target Material: Standard ferromagnetic steel
    Sensor Temperature Range: –35°C to +180°C
    Cable/Connector Temperature Limit: –35°C to +150°C
    Protection Rating: IP66
    Converter Frequency Response: 0–20 kHz

    The EMERSON PR6423/015-040 CON021 is a high-precision, non-contact eddy-current displacement sensor system,

    designed for critical turbomachinery and industrial applications.  It measures radial and axial shaft displacement,

    position, eccentricity and dynamic movement without physically contacting the shaft — reducing wear and avoiding

    mechanical interference.  The sensor’s robust design, wide measurement range and stable output make it suitable

    for harsh environments such as steam and gas turbines, compressors, pumps, fans, gearboxes and other rotating equipment.
