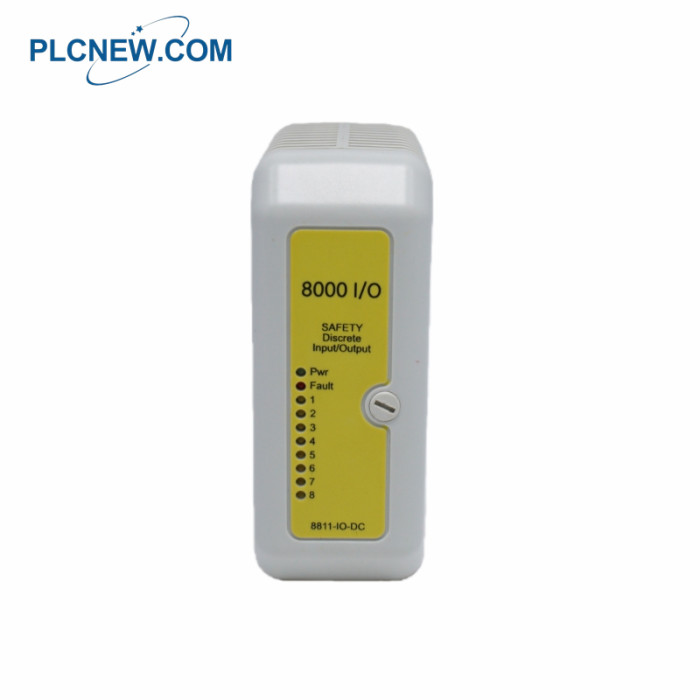

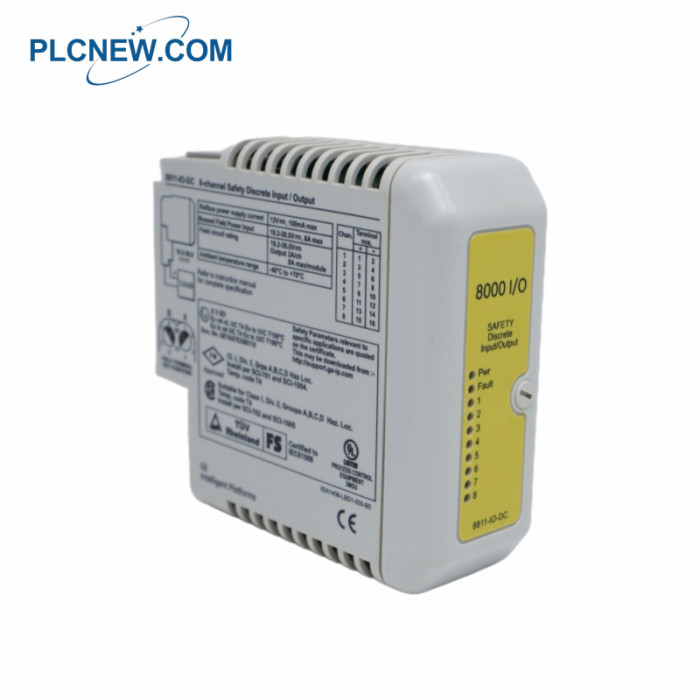

EMERSON 8811-IO-DC Discrete I/O Module

EMERSON 8811-IO-DC Discrete I/O Module

❖Tell Us What You Need - Frida Waiting for You

Phone/WhatsApp:+86-18965196563

Email:sales17@amikon.cn

❖A Closer Look at Its Strengths

Lifecycle Status: Active
Number of Channels: 8 (independently configured as inputs or outputs)
Inputs - ON/OFF Threshold Current: 0.9mA (typ.)
Inputs - O/C Voltage: 24 VDC (typ.) - depends on BFP Supply
Inputs - Wetting Current: 1.2mA (typ.)
Inputs - Minimum Pulse Width Detected: 5ms
Inputs - Max Input Frequency in Pulse Counting Mode (no debounce): 30Hz
Inputs - Isolation (any channel to Railbus): 250 VAC
Outputs - Maximum Output Current per Channel: 2A
Outputs - Maximum Output Current per Module - Continuous: 6A
Outputs - Maximum Output Current per Module - Non-continuous (<10 seconds): 8A
Input Configurable Parameters - Filter Time Interval: 0 to 8s (in 1ms steps)
Output Configurable Parameters - Pulse Width: 1ms to 60s
Response Time - Input Signal Change to Availability on Railbus: 5ms (max.)
Response Time - Railbus Command to Output Change: 1ms (max.)
Hazardous Area Specification - Protection Technique: EEx nA nL IIC T4
Hazardous Area Specification - Location (FM and CSA): Class 1, Div.2, Grps A,B,C,D T4
Power Supplies - System Power Supply: 50mA (typ.), 70mA (max.)
Power Supplies - Bussed Field Power Supply - All Channels Configured as Inputs: 50mA (max.)
Power Supplies - Bussed Field Power Supply - Any Channels Configured as Output Currents: 50mA + output load
Module Key Code: B6
Module Width: 42 mm
Module Weight: 210 g
