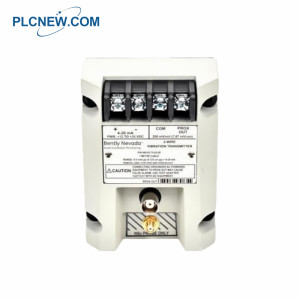

Bently Nevada 990-05-70-03-00 Vibration Transmitter

Bently Nevada 990-05-70-03-00 Vibration Transmitter

Your Partner is Listening

Sales Manager: Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

Product Parameters

Full-Scale Range: 0–5 mils pp (0–125 µm pp)
System Length: 7.0 meters (23.0 feet)
Mounting: Includes both DIN rail clips and bulkhead screws
Agency Approval: Not required (standard non-hazardous location model)
Power Supply: +12 to +35 Vdc
Output Signal: 4–20 mA (two-wire)
Loop Accuracy: ±1.5% over full-scale range
Max Loop Resistance: 1,000 Ω at 35 Vdc
Current Limiting: 23 mA typical
Probe Gap: 0.5 to 1.75 mm (20–55 mils) from target
Frequency Response: 5 Hz to 6,000 Hz (+0, -3 dB)
Proximitor Output: 7.87 mV/µm ±6.5% (200 mV/mil)
NOT OK Response: Output drops to <3.6 mA within 100 µs
Operating Temp: -35°C to +85°C (-31°F to +185°F)
Storage Temp: -52°C to +100°C (-62°F to +212°F)
Humidity: 100% condensing (non-submerged)
Probe Temp Range: -52°C to +177°C (-62°F to +351°F)
Weight: 0.43 kg (0.9 lb)

Product Notes

▲Installation & Mounting
Probe Gap: Ensure the probe is gapped between 0.5 mm and 1.75 mm from the target.  Incorrect gap may prevent full-scale output.
Thread Engagement: Do not exceed maximum thread engagement (e.g., 12 mm for M8x1, 15 mm for M10x1).

Excessive engagement may cause binding.
Mounting: Use provided DIN rail clips or bulkhead screws.  Ensure secure mounting to prevent vibration-induced damage.
▲Electrical Connections
Power Supply: Use a +12 to +35 Vdc power source.  Verify polarity to avoid damage.
Loop Resistance: Do not exceed 1,000 Ω total loop resistance (including wiring).

Use Figure 8 to verify operating region based on supply voltage.
Wiring: Use shielded, twisted-pair cable (e.g., 1.0 mm² / 18 AWG).  Ground the shield at the transmitter end only.
PROX OUT Signal: This output is non-isolated.  Use the 990/991 Test Adapter when connecting to

AC-powered test equipment to prevent false alarms and ensure signal isolation.
