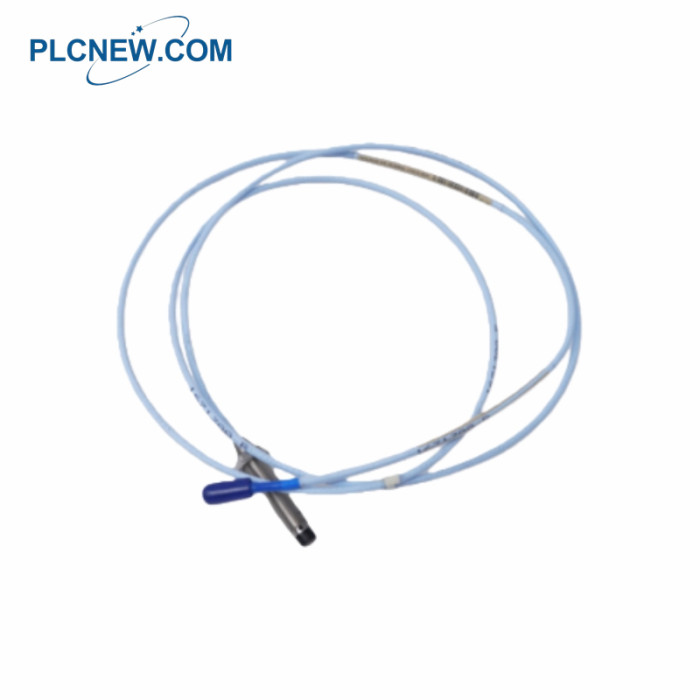

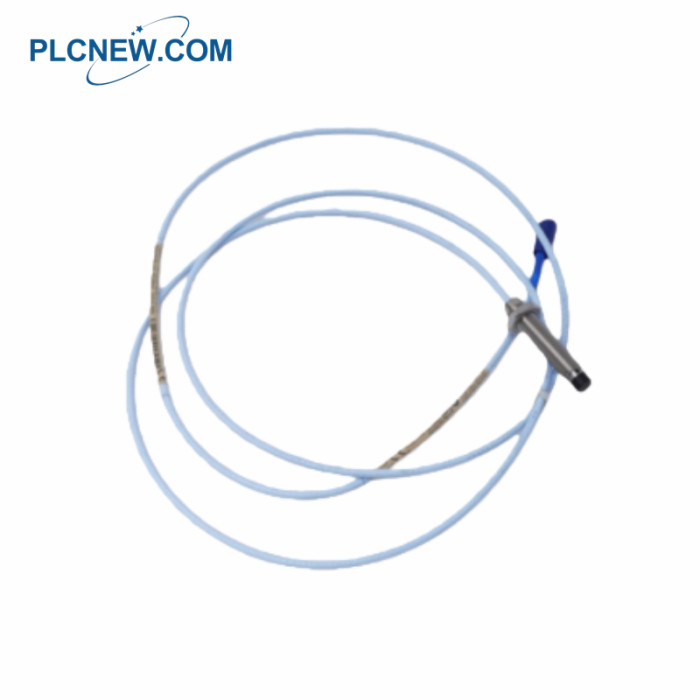

Bently Nevada 330910-00-10-50-02-00 NSv Probe

Bently Nevada 330910-00-10-50-02-00 NSv Probe

Click here to inquire Frida

Phone/WhatsApp: +86-18965196563

Email: sales17@amikon.cn

Address:GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.

Core Specifications

Unthreaded Length (Option AA): 00 (0 mm)
Overall Case Length (Option BB): 10 (10 mm / 0.39 in)
Total Length (Option CC): 50 (5.0 meters / 16.4 feet)
Connector and Cable-Type (Option DD): 02 (Miniature coaxial ClickLoc connector, standard cable)
Agency Approval (Option EE): 00 (Not required)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Cable Specifications: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated probe cable
Connector Material: Gold-plated brass
Connector Type: ClickLoc
Minimum Bend Radius: 25.4 mm (1.0 in)
Operating Temperature Range: -52°C to +177°C (-62°F to +351°F)
Storage Temperature Range: -52°C to +177°C (-62°F to +351°F)
Thread Engagement Limit (M10x1): 15 mm maximum

Fields of Use

It is primarily intended for use on centrifugal air compressors, refrigeration compressors, and process gas compressors,

especially those with tight installation requirements where standard transducer systems cannot fit.
Its compact M10X1 thread and armored design make it ideal for applications with space constraints, such as

measuring radial vibration on small shafts (smaller than 51 mm / 2 in) or axial position on small flat targets

(smaller than 15 mm / 0.6 in).
It is suitable for key measurements on fluid-film bearing machines, including radial vibration, radial position,

axial (thrust) position, and for providing Keyphasor® and zero-speed signals on machines where a small shaft

or reduced side-view is present.
