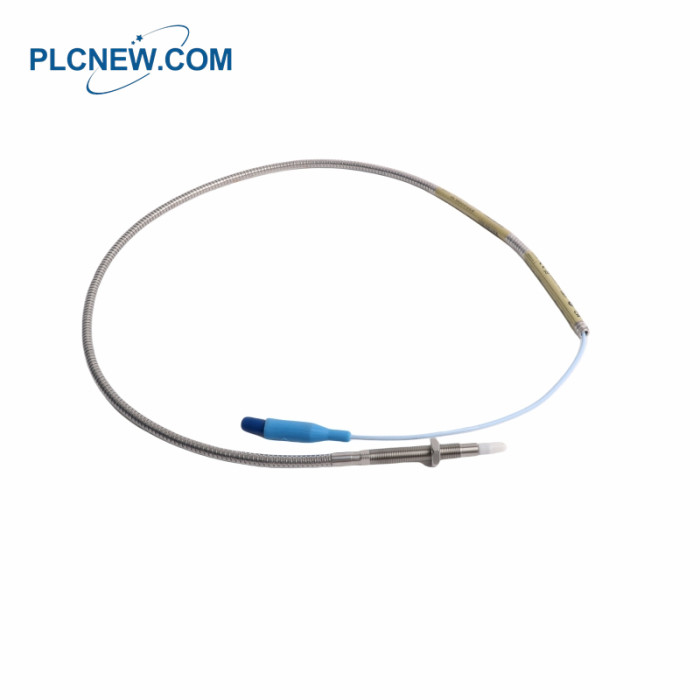

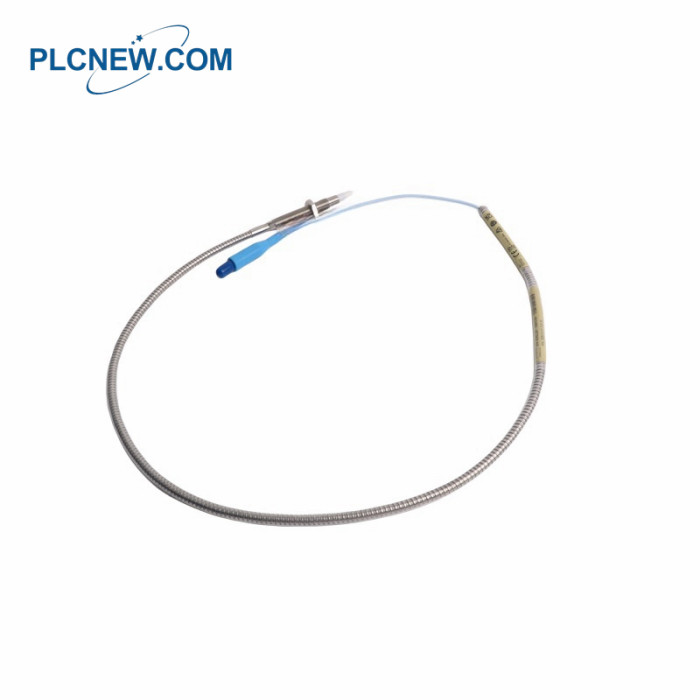

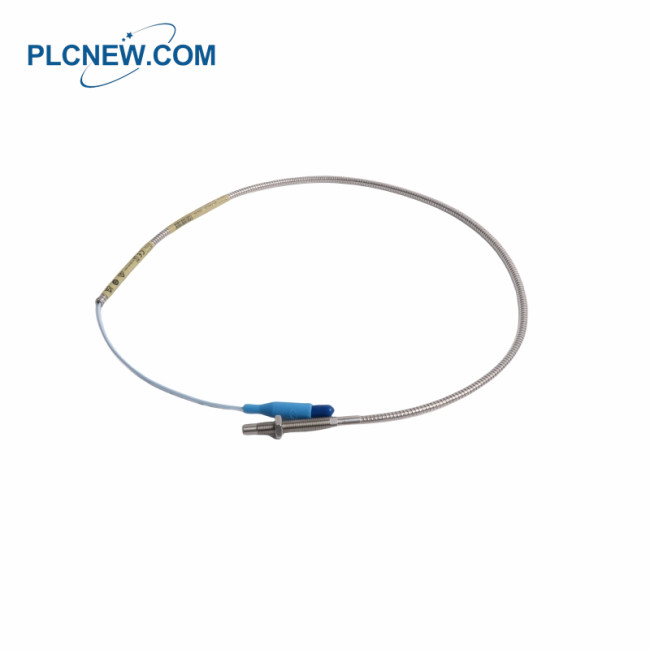

Bently Nevada 330910-00-07-10-02-00 Proximity Transducer system

Bently Nevada 330910-00-07-10-02-00 Proximity Transducer system

Bently Nevada 330910-00-07-10-02-00  Specification

Brand:Bently Nevada
Model Number:330910-00-07-10-02-00
Type: Proximity Probe
Probe Diameter: 5 mm (0.20 inches)
Thread Type: M8 x 1.25 thread
Unthreaded Length Option: 00 =0 mm
Overall Case Length Option: 07 = 70 mm (2.76 inches)
Total Length Option: 10 = 1.0 meter (3.3 feet)
Connector and Cable Type Option: Miniature ClickLoc connector
Temperature Range:-51°C to +177°C (-60°F to +350°F)
Sensing Range: 0 to 80 mils (0 to 2.0 mm)
Sensitivity: 8.00 mV/mil (200 mV/mm)
Frequency Response: 0 to 10 kHz
Certifications: CE

Bently Nevada 330910-00-07-10-02-00 Description

The 3300 XL NSv* Proximity Transducer system is intended for use with centrifugal air compressors,refrigeration

compressors, process gas compressors and other machines with tight installation requirements.  The 3300 XL NSv

Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor* Sensor.1

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview

restrictions limit the use of standard Bently Nevada* 3300 and 3300 XL 5 and 8 mm Transducer Systems.  It is also

ideal for smalltarget applications, such as measuring radial vibration on shafts smaller Ithan 51 mm (2 in) or axial

position on flat targets smaller than 15 mm (0.6 in).  It lis primarily used in the following applications on fluid-filmed

bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor*) signals
