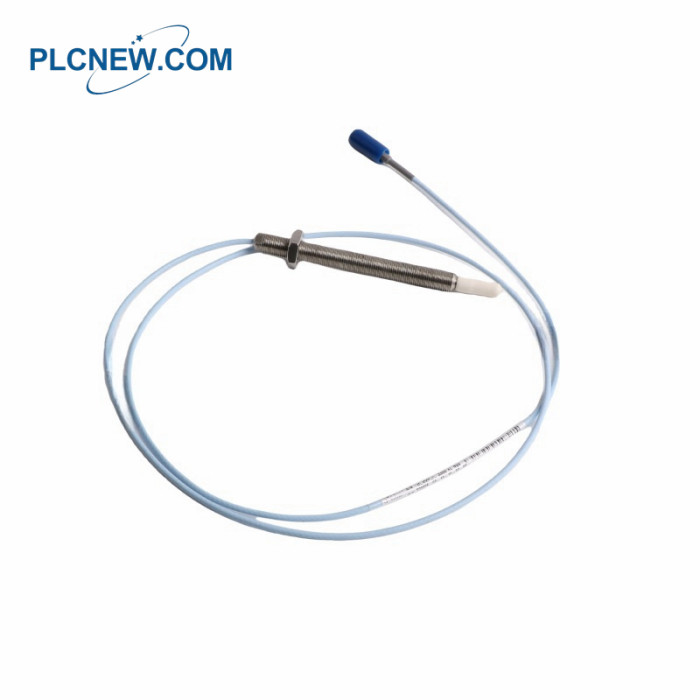

Bently Nevada 330905-00-24-05-02-05 3300 XL NSv Transducer System
Bently Nevada 330905-00-24-05-02-05 Specification
Product Type: 3300 NSv Proximity Probes
Manufactured in: U.S.A.
Probe Thread: M10 x 1 (without armor)
Unthreaded Length Option: 00 =0 mm
Overall Case Length Option: 25 = 250 mm
Total Length Option: 05 = 0.5 meter (20 inches)
Connector and Cable Type Option: 02 = Miniature coaxial ClickLoc connector with standard cable
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Probe Cable Specifications:75 Q coaxial, fluoroethylene propylene (FEP) insulated probe cable,
available in total probe lengths of 0.5,1, 5, or7
meters
Operating Temperature:-34°C to +177°C (-30°F to +351°F)
Storage Temperature:-51°C to +177°C (-60°F to +351°F)
Bently Nevada 330905-00-24-05-02-05 Description
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview
restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal
for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on
flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing
machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
