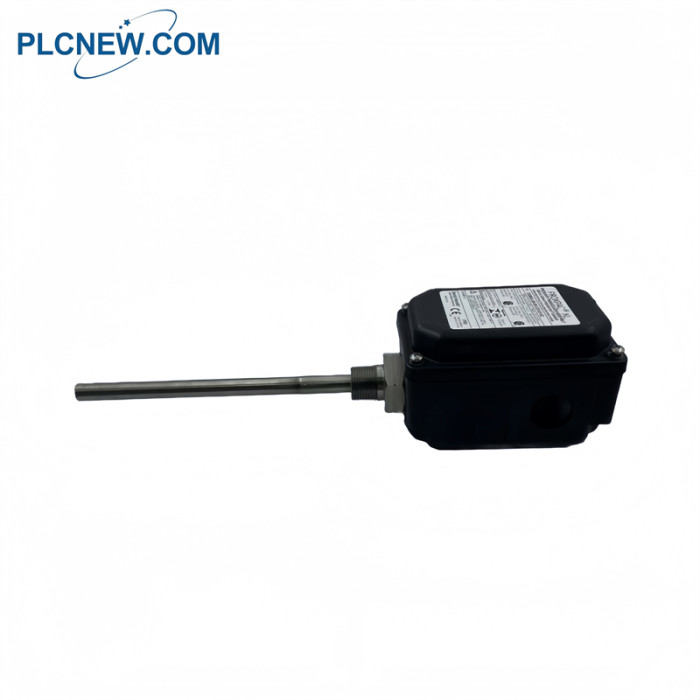

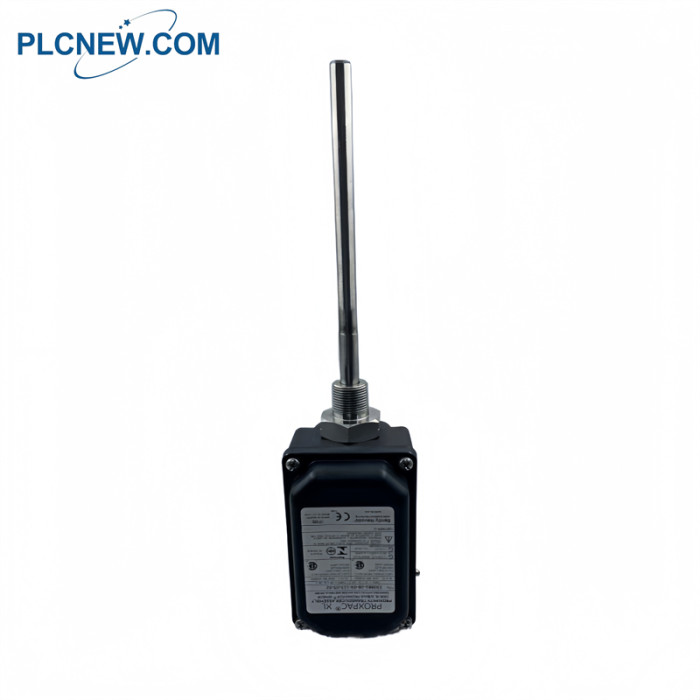

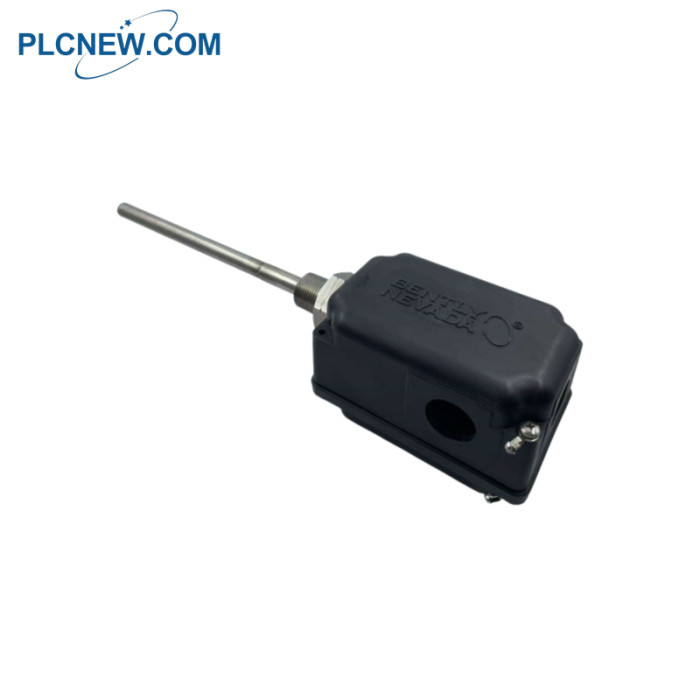

Bently Nevada 330881-28-09-123-03-02 PROXPAC XL Proximity Transducer

Welcome to Contact

Sales Name

Phone/WhatsApp

Email

Frida

+86-18965196563

Product features

Probe and Approvals: 3300 XL 8 mm probe with Multiple Approvals
Standoff Adapter: 90 mm length
Probe Penetration: 123 mm length
Mounting Thread: 3/4-14 NPT
Power Supply: Operates on -23 Vdc to -26 Vdc (with barriers) at maximum consumption
Nominal Probe DC Resistance (RPROBE): 7.59 ± 0.50 Ω
Linear Range: 2 mm (80 mils), beginning at approximately 0.25 mm (10 mils) from the target and spanning 0.25 mm to 2.3 mm (10 mils to 90 mils)
Recommended Gap Setting: 1.27 mm (50 mils)
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% including interchangeability error, measured in 0.25 mm (10 mil) increments over the 80 mil linear range;   valid for ambient temperatures of 0 °C to +45 °C (+32 °F to +113 °F)
Deviation from Best Fit Straight Line (DSL): Less than ±0.025 mm (±1 mil) for the 1-meter system, with all components operating at 0 °C to +45 °C (+32 °F to +113 °F)
Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 meters (1000 feet) of field wiring
Minimum Target Size: 15.2 mm (0.6 in) diameter (flat target)
