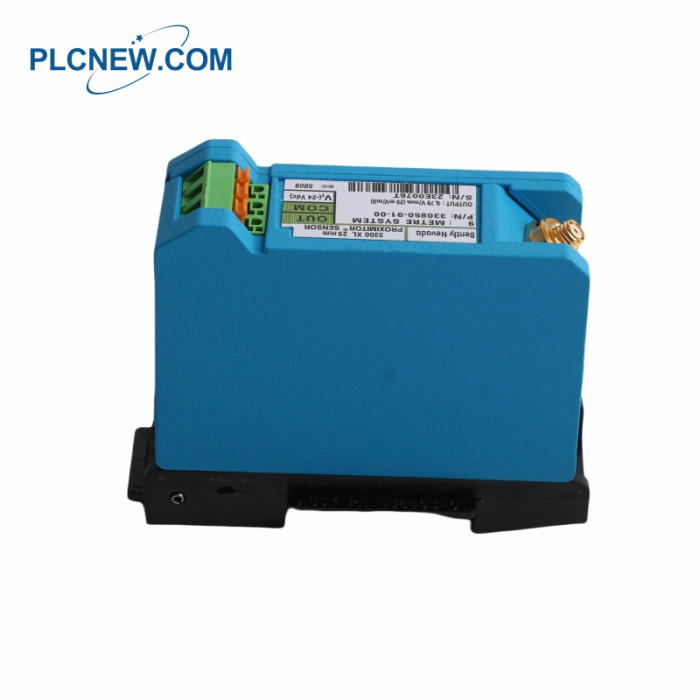

Bently Nevada 330850-91-05 3300 XL 25 mm Proximitor Sensor

Bently Nevada 330850-91-05 3300 XL 25 mm Proximitor Sensor

Bently Nevada 330850-91-05  Specification

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Output Resistance: 50 Ω
Average Scale Factor (ASF): 0.787 V/mm (20 mV/mil) nominal
Deviation from Best Fit Straight Line (DSL): Less than ±0.31 mm (±12 mils)
Probe Tip Material: Polyetheretherketone (PEEK)
Probe Case Material: AISI 304 stainless steel (SST)
Proximitor Sensor Material: A380 aluminum
Sliding Bracket Material: Anodized aluminum and stainless steel
Bracket Adjustments:
Short Bracket Horizontal: ±25.4 mm (±1.0 in)
Long Bracket Horizontal: ±76.2 mm (±3.0 in)
Probe Adapter Vertical Adjustment: 25.4 mm (1.00 in) total travel

Bently Nevada 330850-91-05  Description

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300

XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output provides this system with a linear range of 12.7

mm (500 mils).

Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion

(DE) on midsize to large steam turbine generators, which occurs due to the difference in growth rates between the

turbine rotor and the machine stator (casing).
