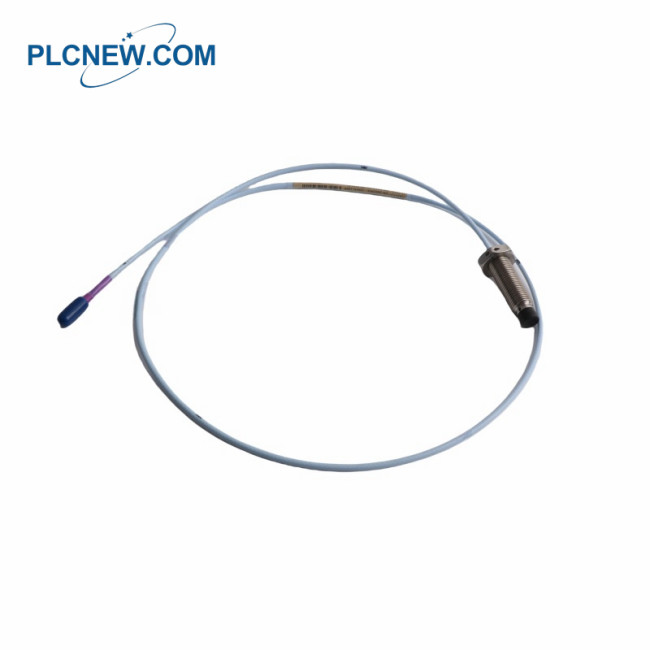

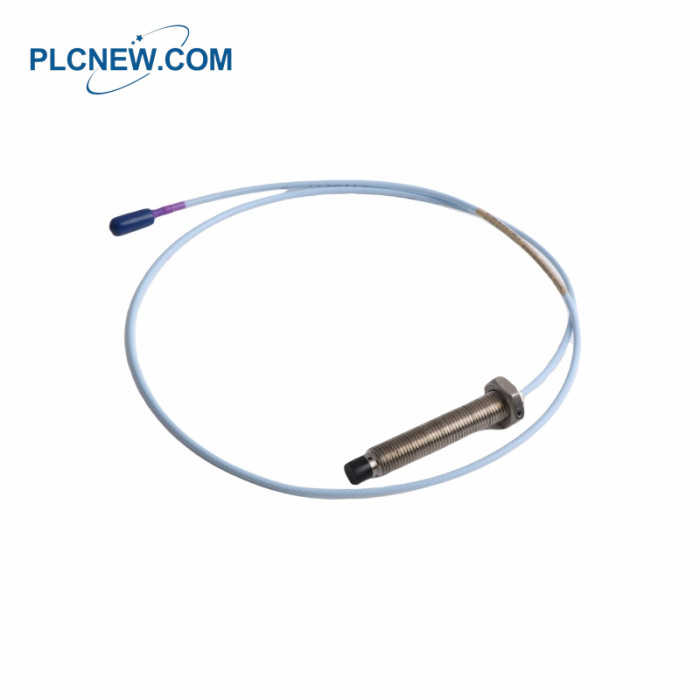

Bently Nevada 330703-000-040-10-12-00 Sensor Proximity Probe Cable
Bently Nevada 330703-000-040-10-12-00 Specification
Product Number: 330703-000-040-10-12-00
Power Requirement: –17.5 Vdc to –26 Vdc
Supply Sensitivity: Less than 2 mV
Output Resistance: 50 Ω
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Incremental Scale Factor (ISF): 3.94 V/mm (100 mV/mil) ±10%
Frequency Response: 0 to 8 kHz
Performance Specifications
Linear Range: 4.0 mm (160 mils)
Recommended Gap Setting: 2.5 mm (100 mils)
Standard DSL Range Accuracy: Less than ±0.10 mm (±4 mils)
Extended DSL Range Accuracy: Less than ±0.15 mm (±6 mils)
Probe Tip Material: Polyphenylene Sulfide (PPS)
Probe Case Material: AISI 304 Stainless Steel (SST)
Bently Nevada 330703-000-040-10-12-00 Description
The 3300 XL 11 mm Proximitor sensor is designed to replacethe 7200-series ll mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL11mmsystem,every component must be replaced with
3300 XL 11mm components.in addition, the monitoring system must beupdated.if using a 3500 Monitoring system,
an updatedversion of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option
is required.Existing 3300 Monitoring Systems may need a modification.
