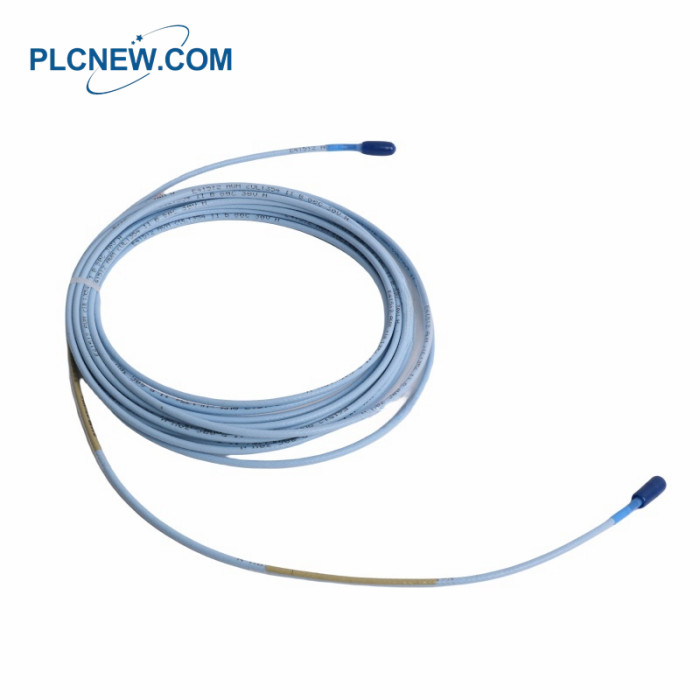

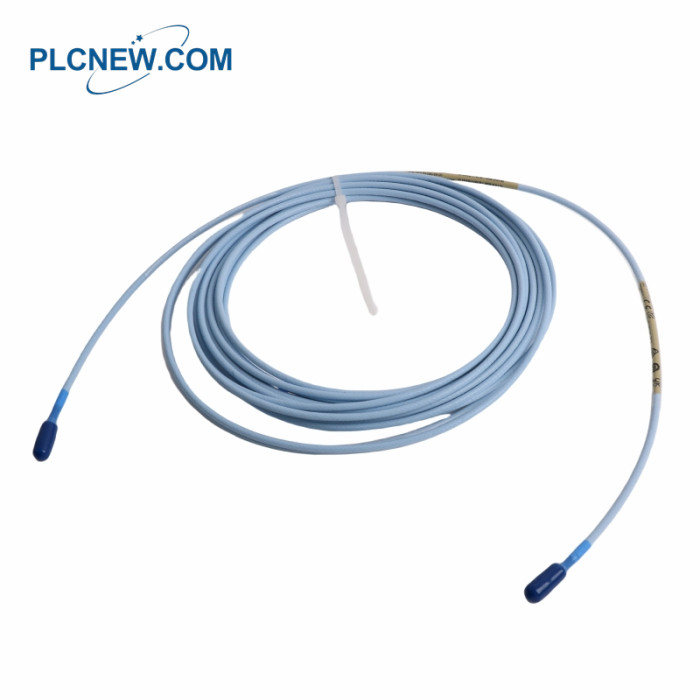

Bently Nevada 330130-080-12-RU 3300 XL Extension Cable

Bently Nevada 330130-080-12-RU 3300 XL Extension Cable

Bently Nevada 330130-080-12-RU Specification

Model Number: 330130-080-12-RU
Manufacturer: Bently Nevada
Type:  3300 XL Extension Cable
Power Supply: Requires -17.5 VDC to -26 VDC
Supply Sensitivity: Less than 2 mV change
Output Resistance: 50 Ω
Recommended Gap Setting (for radial vibration): -9 VDC (approximately 1.27 mm / 50 mils)
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
System Sensitivity (5 or 1 meter system): 7.87 mV/μm (200 mV/mil) ±5%
System Sensitivity (9 meter system): 7.87 mV/μm (200 mV/mil) ±6.5%
Minimum Cable Bend Radius: 50.8 mm (2 in)
Recommended Minimum Bend Radius: 76.2 mm (3 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel

Bently Nevada 330130-080-12-RU Description

The 3300 XL8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems.

The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum institute's(APl)670 Standard

for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer

systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and

Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component isbackward compatible and interchangeable4 with other non-XL3300

series 5 mm and 8 mm transducer systemcomponents5. This compatibility includes the 3300 5 mmprobe, for applications

in which an 8 mm probe is too largefor the available mounting space6.7.
