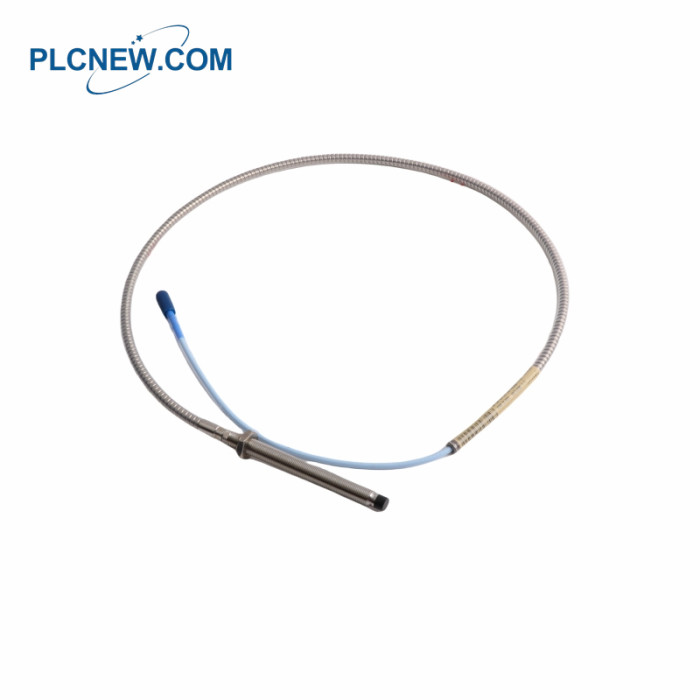

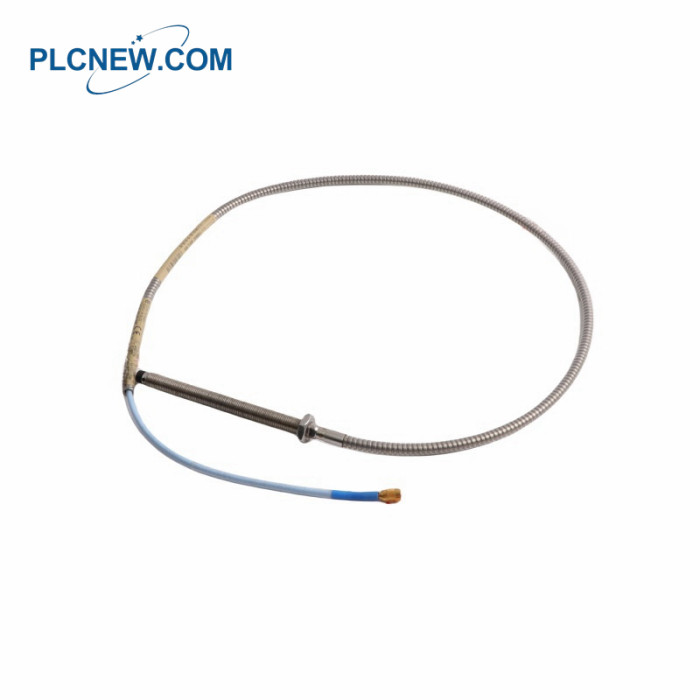

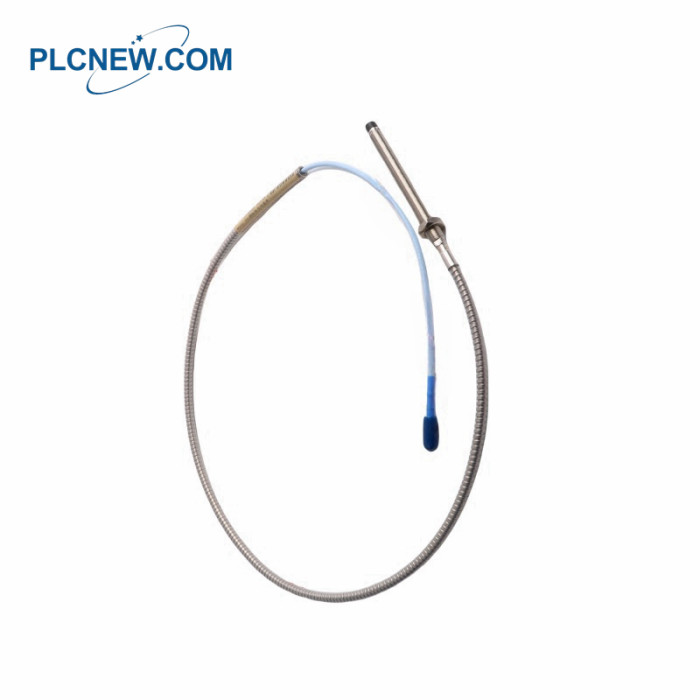

Bently Nevada 330104-00-03-50-02-05 Proximity Probes
Bently Nevada 330104-00-03-50-02-05 Specification
Model Number:330104-00-03-50-02-05
Manufacturer: Bently Nevada
Type: Proximity Probes
Power Supply: Requires -17.5 VDC to -26 VDC
Output Resistance: 50 Ω
Recommended Gap Setting (for radial vibration): -9 VDC
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Field Wiring: 0.2 to 1.5 mm²
Linear Range: 2 mm (80 mils)
Frequency Response: 0 to 10 kHz
Minimum Target Size: 15.2 mm diameter (flat target)
Minimum Cable Bend Radius: 50.8 mm (2 in)
Recommended Minimum Bend Radius: 76.2 mm (3 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Bently Nevada 330104-00-03-50-02-05 Description
The system provides an output voltage that is directlyproportional to the distance between the probe tip and
theobserved conductive surface and can measure both static(position)and dynamic(vibration) values. The
system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well
asKeyphasor reference and speed measurements3.
