Bently Nevada 330103-00-16-10-02-00 Proximity Probe, Metric
➽Inquire to Frida
Phone/WhatsApp: +86-18965196563 Email:sales17@amikon.cn
➽Know the product

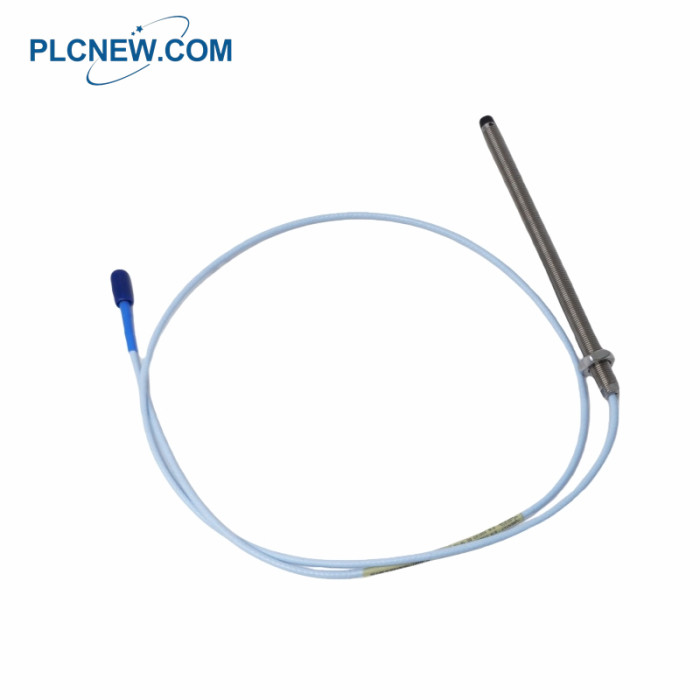

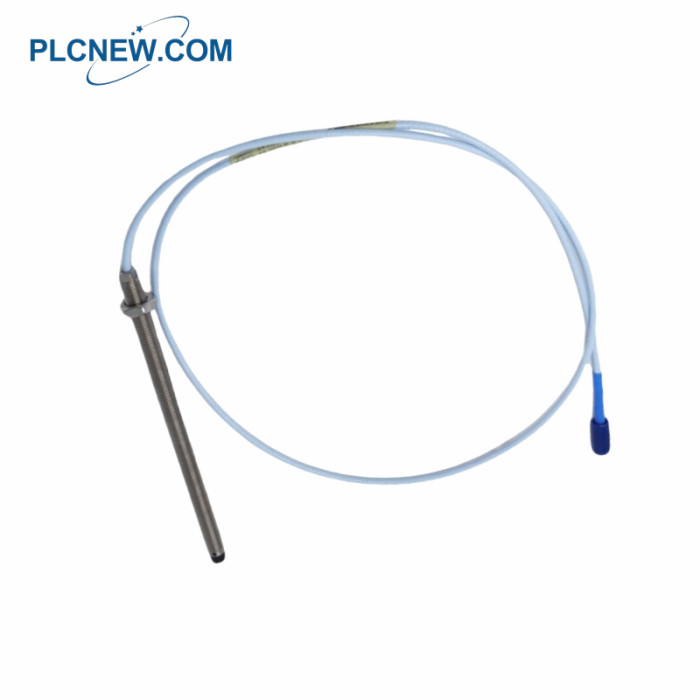

The 330103-00-16-10-02-00 is an unarmored 8mm proximity probe with an M10x1 metric thread and a 1-meter integral cable.
It features a 160mm stainless steel case, standard ClickLoc connectors, and is designed for vibration and position measurements.
This probe is part of the high-performance 3300 XL transducer system, ideal for integration into monitoring systems
on fluid-film bearing machinery.
Thread Type: M10 x 1
Armor: Without Armor
Unthreaded Length (A): 00 indicates 0 mm unthreaded length
Overall Case Length (B): 16 indicates 160 mm case length
Total Length (C): 10 indicates a 1.0 meter (3.3 feet) total probe cable length
Connector and Cable Type: 02 indicates a Miniature coaxial ClickLoc connector with standard cable
Agency Approval Option: 00 indicates No specific agency approvals required
Cable Specification: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable
Tensile Strength (Probe Case to Lead): 330 N (75 pounds)
Tensile Strength (Connector): 270 N (60 pounds) at probe lead to extension cable connection
Recommended Case Torque (Standard forward mounted): 11.2 N•m (100 in•lbf)
Maximum Case Torque (Standard forward mounted): 33.9 N•m (300 in•lbf)
Connector Torque (Maximum): 0.565 N•m (5 in•lbf)
Minimum Bend Radius: 25.4 mm (1.0 inch)
Locknut: Supplied with a 17-mm lock nut and 8 mm wrench flats for M10x1 threads
Operating/Storage Temperature (Standard Cable): -52°C to +177°C (-62°F to +350°F)
Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for a standard 1m system
Linear Range: 2.0 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) from the target
Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration
Frequency Response: 0 to 10 kHz, +0, -3 dB
