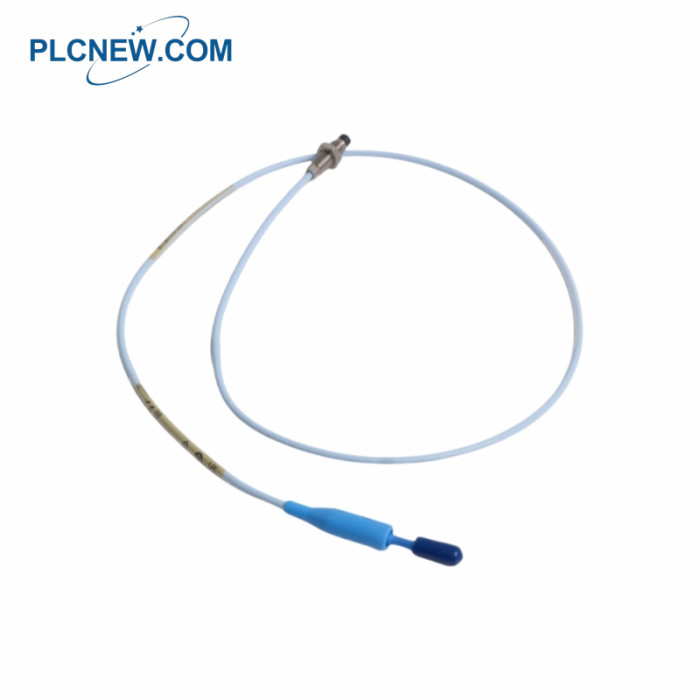

Bently Nevada 330103-00-03-10-01-CN 3300 XL 8 mm Proximity Probes
Don't Hesitate to Contact Us!
Sales Name: Frida
Phone:+86-18965196563
Email:sales17@amikon.cn
Product Specification
|
Parameter |
Specification |
|
Unthreaded Length |
0 mm (as per option 00 in ordering code) |
|
Overall Case Length |
30 mm (as per option 03 in ordering code) |
|
Agency Approvals |
Not specified (option 00), but typically supports CSA, ATEX, IECEx upon request |
|
Extended Temperature Range (ETR) Available |
No (standard cable only) |
|
Tensile Strength |
330 N (75 lbf) from probe case to cable |
|
Minimum Bend Radius |
25.4 mm (1.0 in) |
|
Connector Torque |
Finger-tight only (ClickLoc design) |
|
Linearity Range |
2.0 mm (80 mils) from 0.25 mm to 2.3 mm from target |
|
Scale Factor |
7.87 V/mm (200 mV/mil) ±5% for 5m systems within API 670 range |
|
Target Material |
Calibrated for AISI 4140 steel (other materials available on request) |
|
Frequency Response |
0 to 10 kHz (±3 dB) |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter flat surface |
|
Recommended Shaft Diameter |
76.2 mm (3 in) minimum |
|
Interchangeability |
Electrically and mechanically compatible with non-XL 3300 series 5 mm and 8 mm components |
|
