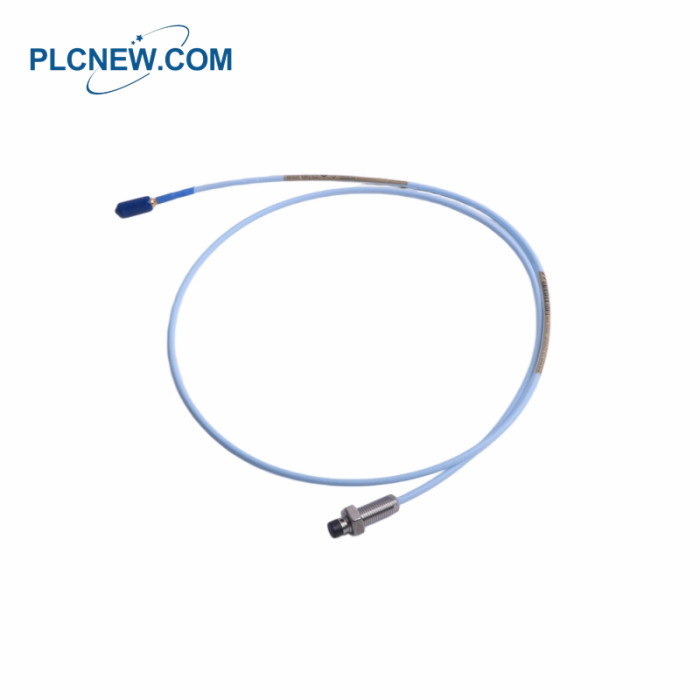

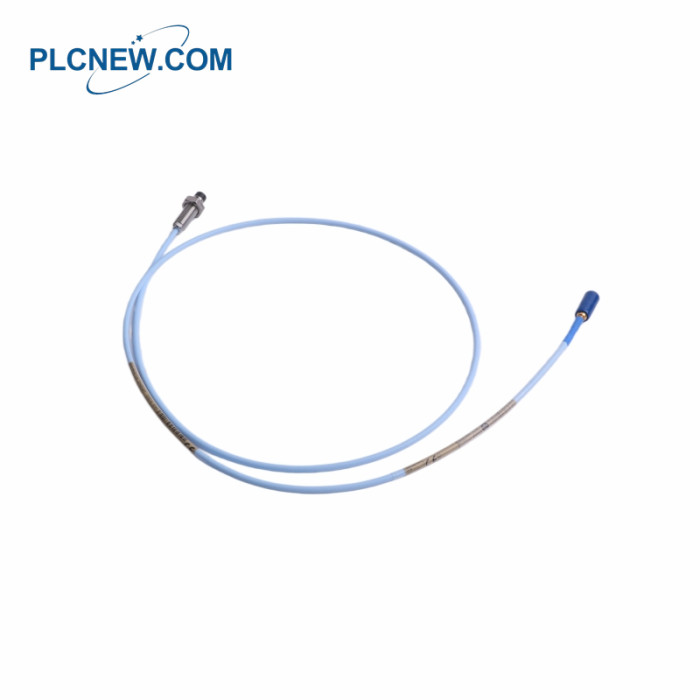

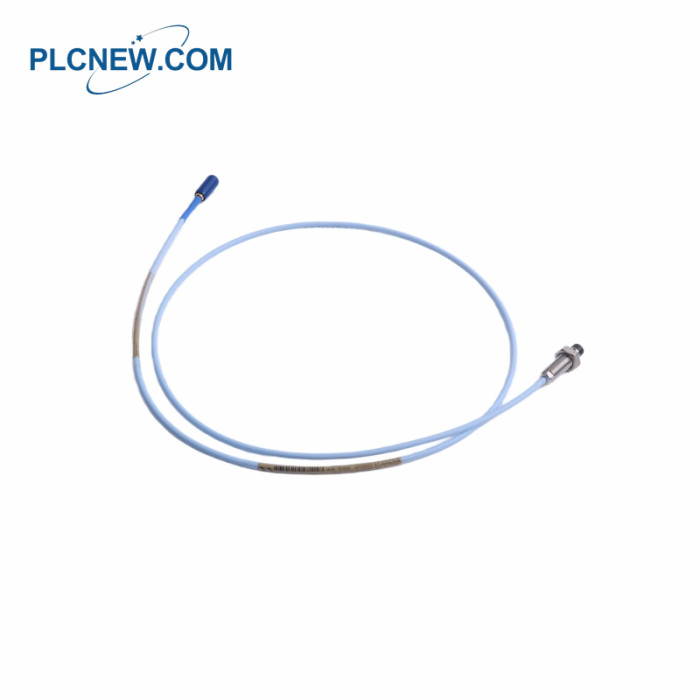

Bently Nevada 330101-00-55-05-11-00 3300 XL 8 mm Proximity Probes

Bently Nevada 330101-00-55-05-11-00 3300 XL 8 mm Proximity Probes

Details of the module

Product model:330101-00-55-05-11-00
330101    3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor(2)
A: Unthreaded Length Option
Minimum unthreaded length: 0.0 in.
B: Overall Case Length Option
Minimum case length: 5.5 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
D: Connector and Cable-Type Option
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
E: Agency Approval Option
00 Not required

The system provides an output voltage that is directlyproportional to the distance between the probe tip and the

observed conductive surface and can measure both static(position) and dynamic (vibration) values. The

system'sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well

asKeyphasor reference and speed measurements3.

Frequently asked questions：

1. What type of probe is the 330101-00-55-05-11-00?
The 330101-00-55-05-11-00 is a 3300 XL 8 mm proximity probe designed for non-contact measurement of shaft

vibration and displacement in rotating machinery.
2. What thread type does this probe use?
This probe is equipped with a 3/8-24 UNF mounting thread, which allows secure installation in standard probe

holders and mounting brackets.
3. Does this 330101-00-55-05-11-00 probe include an unthreaded section?
No. The unthreaded length option is 0.0 inches, meaning the probe body is fully threaded up to the case.
4. What is the 330101-00-55-05-11-00 overall case length of the probe?
The probe has an overall case length of 5.5 inches, which provides sufficient mounting depth for industrial

machinery monitoring applications.

Material and Environmental Limits
Datasheets from Nex Instrument Inc and Instrumart provide the following physical and environmental specifications

for the 3300 XL 8mm series:
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel.
Operating Temperature: Standard range is -51 °C to +177 °C (-60 °F to +351 °F).
Pressure Seal: Designed to seal differential pressure between the tip and case; exposing the probe to temperatures

below -34 °C (-30 °F) may cause seal failure

Industrial application fields
This probe is a standard component for industrial condition monitoring and is widely used in large mechanical equipment

that requires high reliability and precise measurement:
Oil and gas plants: Used to monitor the shaft vibration and axial displacement of large gas turbines, centrifugal

compressors and expanders to prevent shutdowns due to mechanical failures.
Thermal power and hydroelectric power stations: Installed on the fluid film bearings of steam turbines and generators

to monitor critical operating parameters.
Chemical processing plants: Monitor the mechanical health of reaction vessel mixers and large pumps.
Steel and heavy manufacturing industries: Used in vibration protection systems for large fans, electric motors and

high-speed rotating equipment.
