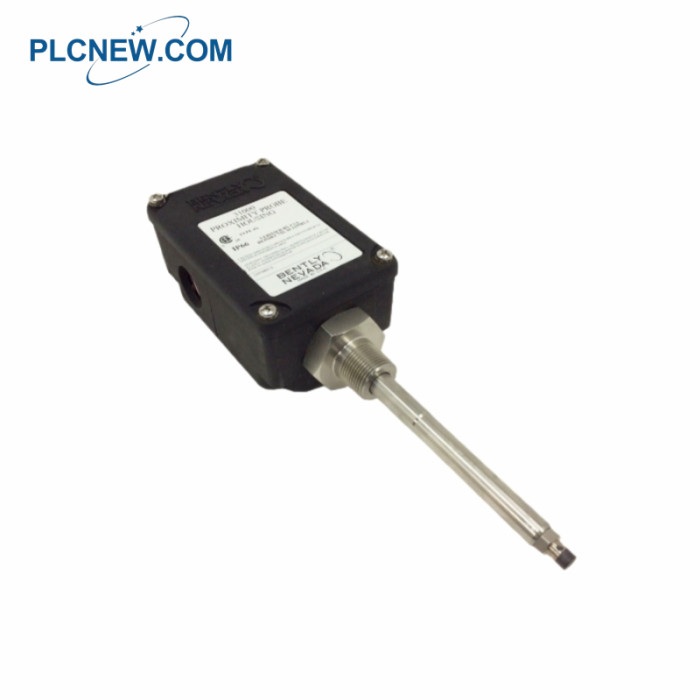

Bently Nevada 31000-30-05-15-31-03-02 Proximity Probe Housing Assembly
Inquiry & Support (Frida will help you)
Phone/WhatsApp: +86-18965196563 Email:sales17@amikon.cn
Product Parameters
The 31000 Proximity Probe Housing Assembly is designed for mounting proximity probes through a machine casing,
typically for radial vibration or Keyphasor measurements. It is constructed from corrosion-resistant, glass-reinforced
Polyphenylene Sulfide (PPS) thermoplastic and stainless steel components. 31000-30-05-15-031-03-02 includes
a 3300 XL 8mm probe with a connector protector and multiple agency approvals.
Probe with Connector: 3300 XL 8 mm probe, with connector protector, multiple approvals
Probe Cable Length: 0.5 meters (20 inches)
Standoff Adapter Length: 1.5 inches (38 mm)
Probe Penetration Length: 3.1 inches (78.7 mm)
Fittings: Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and one cable seal grip with grommets.
Mounting Thread: 3/4-14 NPT (Required when a Standoff Adapter is used)
Temperature Range: -51 °C to +105 °C (-60 °F to +221 °F)
Protection Ratings: Type 4X (CSA), IP66
Recommended Torque (Retaining Nut): 29.4 N·m (260 in·lb)
