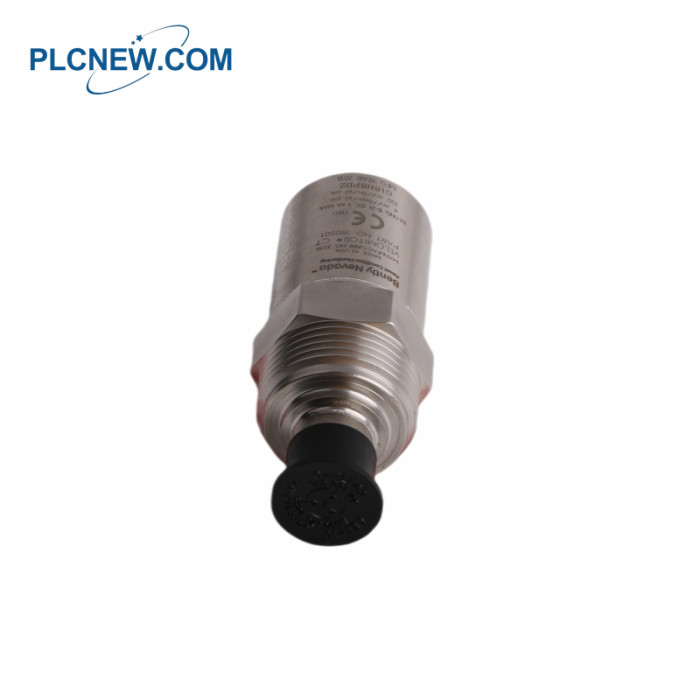

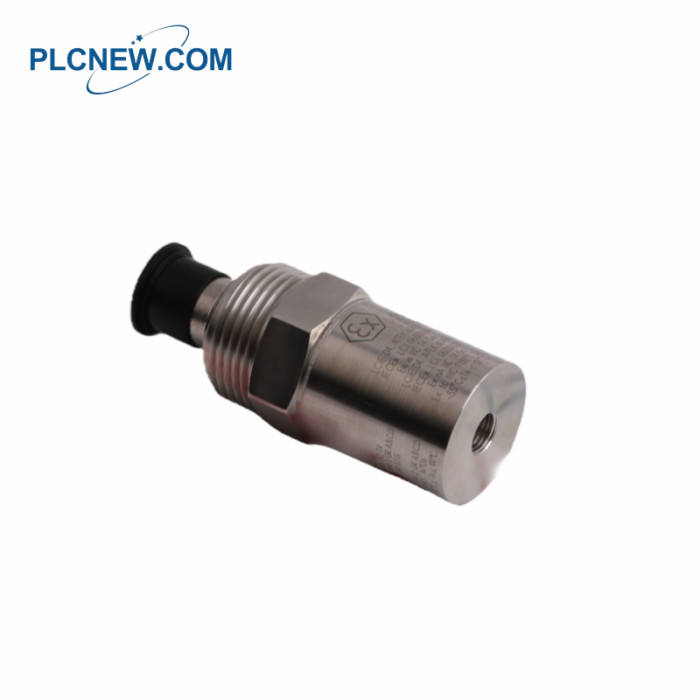

Bently Nevada 190501-07-99-00 Velomitor CT Velocity Transducer
Details of the module
Manufacturer: Bently Nevada
Mounting Hardware Option: Plate Stud 3/8-in 24 to 3/8-in 24
Connection Option: Unit with included 32-foot cable
Agency Approval Option: No Approvals
Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response:
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
Dynamic Output Impedance: <400 Ω typical
Case Material: 316L stainless steel
Connector: 2-pin 316L stainless steel MIL-C5015, top
Mounting Torque: 4.5 N·m ± 0.6 N·m (40 in-lbf ± 5 in-lbf)
The Bently Nevada 190501-07-99-00 Velomitor CT Velocity Transducer is engineered to monitor vibration velocities in
low-speed fans, specifically addressing the challenges of slow-rotating cooling tower and air-cooled heat-exchanger
fans operating at 100 to 300 rpm. By capturing precise vibration data, it helps prevent mechanical failures and improves
overall system reliability.
Frequently asked questions：
What is the sensitivity of the 190501-07-99-00 Velomitor CT?
Why is the frequency response range important?
The transducer covers 3.0 Hz to 900 Hz ±1.0 dB and 1.5 Hz to 1.0 kHz ±3.0 dB, ensuring accurate vibration
measurement from low-speed fans to motor-induced vibrations.
What connector does it use?
The 190501-07-99-00 uses a 2-pin 316L stainless steel MIL-C5015 top connector for secure and reliable
signal transmission.
Product Breakdown
The alphanumeric string functions as an ordering code that defines the mounting hardware, connection type,
and agency approvals for the device.
Model Number (190501): Identifies the Bently Nevada 190501 Velomitor CT Velocity Transducer, a piezoelectric
sensor designed for machines operating at low speeds, typically between 100 to 300 rpm.
Mounting Hardware Option (-07): Indicates a Plate Stud mounting with a thread size of 3/8-in 24 to 3/8-in 24.
Connection Option (-99): According to product listings, this configuration includes a 32-foot cable.
Agency Approval Option (-00): Specifies a non-hazardous area approval or no specific agency approval required.
