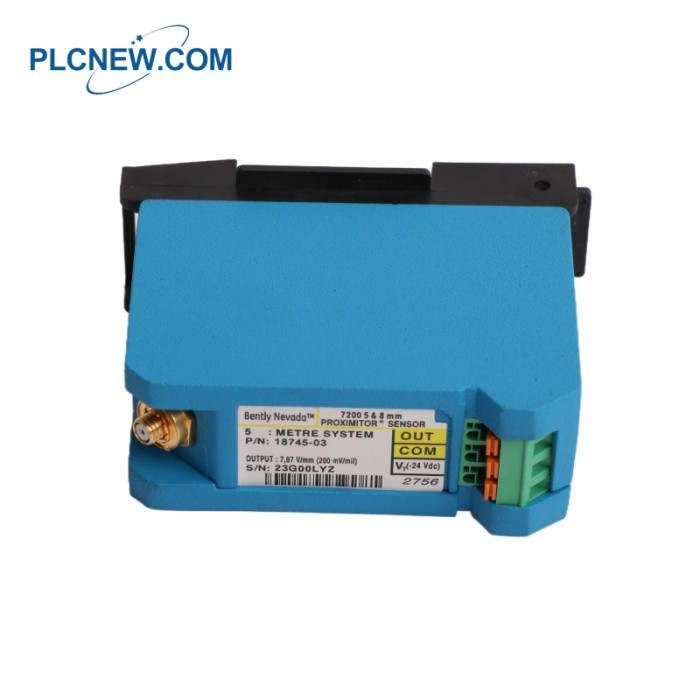

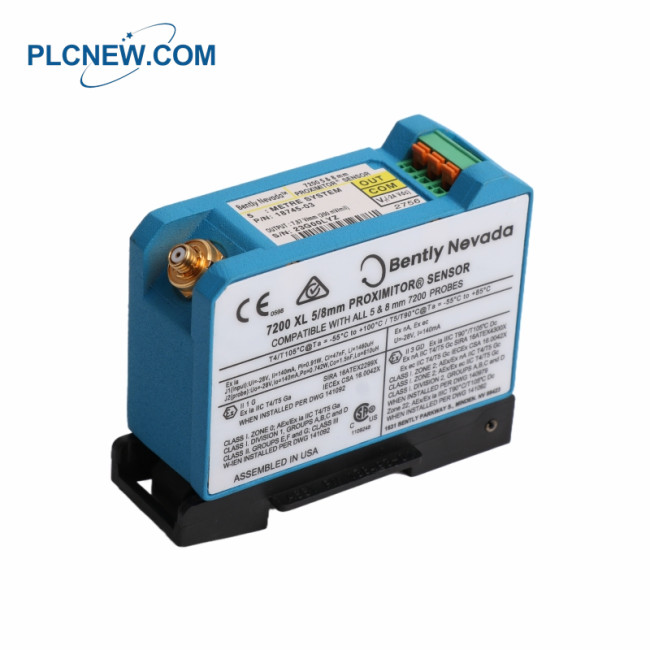

Bently Nevada 18745-03 Proximitor Sensor
Bently Nevada 18745-03 Specification
Manufacturer: Bently Nevada
Product Number: 18745-03
Country of Manufacture: USA
Certificate of Origin (COO): Can be added on request
hnical Specifications:
Transducer Power Supply: 24 Vdc
VoltageCompliance: 0 to +12 Vdc
Input signal range: +10.0 V to -24.0 V
OperatingTemperature: -45 ºC to +65 ºC
Dimensions (L xWxH): 10.2cmx 11.4cmx 13.2 cm
Weight: 0.23 kg
Bently Nevada 18745-03 Description
18745-03 is a 7200 XL 5/8mm Proximity Sensor Module manufactured and designed by Bently Nevada as part of the 3300 Series used for machinery vibration monitoring systems. The 7200 5 mm and 8 mm Proximity Transducer Systems are non-contacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application is any requirement for an accurate, non-contacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocating machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators. The systems offer 80 mils (2 mm) of linear measuring range and are compatible with API 670 requirements. A system consists of a probe with an integral coaxial cable, an extension cable, and a Proximitor. All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.
