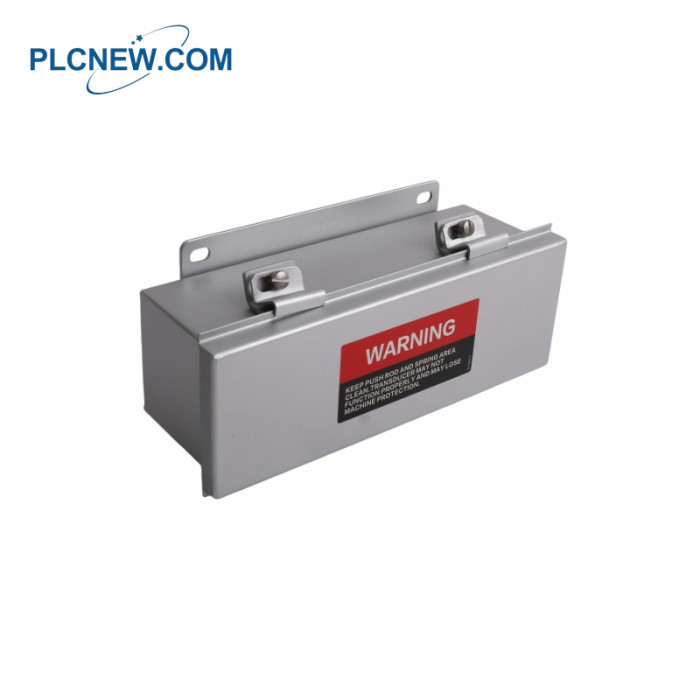

Bently Nevada 135613-01-01 Case Expansion Transducer Systems

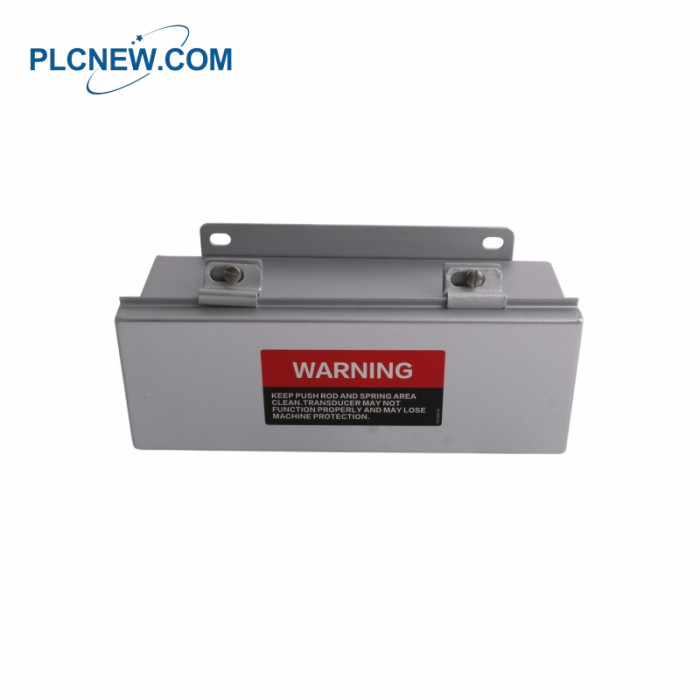

Bently Nevada 135613-01-01 Case Expansion Transducer Systems

Specifications

An important position measurement in Turbine Supervisory Instrumentation (TSi) is case expansion. Case

expansion (sometimes referred to as shell expansion) is the thermalgrowth of the machine case as it expands

during machinestartup and on-line operations. The case expansiontransducer system is typically mounted on the

foundation atthe opposite end from where the turbine casing is attachedto the foundation and provides information

about the growthof the machine case relative to the foundation.
Case expansion is a parameter that you should use a dualtransducer arrangement to measure. This arrangement

provides information about the position of the sliding feet onthe machine case. A condition that obstructs or jams

onefoot could distort the case and damage the machine. Thedual case expansion transducer configuration in

conjunctionwith the 3300 or 3500 monitors provides an alarm for thiscondition. The high temperature dual

case expansiontransducer configuration is compatible only with the 3500/45Position Monitor.

Product Applications

Large power plants: Monitor the thermal expansion of the cylinder casings of steam turbines, gas turbines, and generators

to prevent excessive thermal stress, misalignment, or unit deformation caused by uneven heating.
Oil and gas plants (refineries, natural gas transmission stations): Monitor the casing displacement of critical large pumps,

large reciprocating/centrifugal compressors, and expanders.
Heavy industrial manufacturing plants (chemical plants, steel mills): Protect the operational safety of large industrial

turbine drives and critical rotating units.
