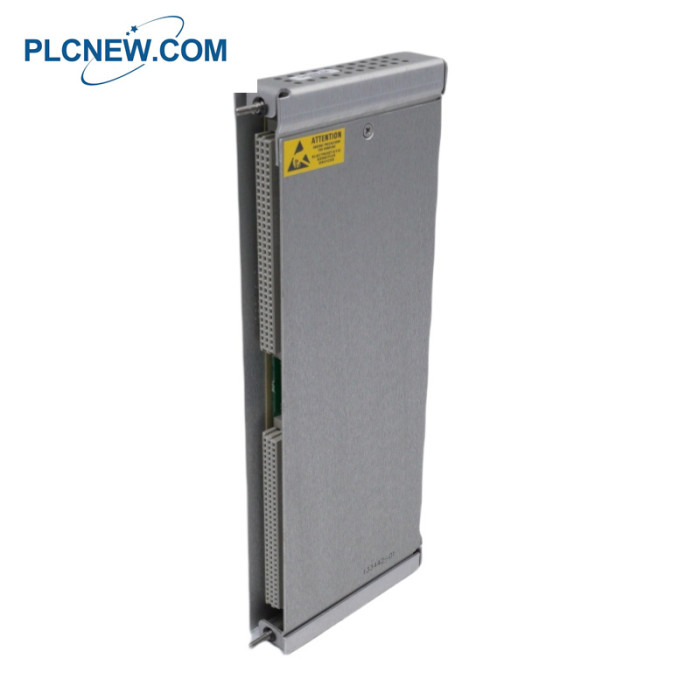

Bently Nevada 133442-01 I/O Module with Internal Terminals

Bently Nevada 133442-01 I/O Module with Internal Terminals

Bently Nevada 133442-01 Specification

Part Number: 133442-01
Manufacturer: Bently Nevada
Series: 3500
Input impedance: 20 k Ohm
Product Type: I/O Module with Internal Terminations
Power consumption: 5.8 watts
Transducer Power Supply: 24 Vdc
VoltageCompliance: 0 to +12 Vdc
Input signal range: +10.0 V to -24.0 V
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm
OperatingTemperature: -30 ºC to +65 ºC
RPM/Min Accuracy: ± 20 rpm/min
Number of channels: 12
Output Impedance: 550 Ohm
Frequency: 50 or 60 Hz
Repair: 3-7 Day
Weight: 0.20 kg
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

Bently Nevada 133442-01 Description

133442-01 is a Tachometer I/O Module with Internal Terminals manufactured and designed by Bently Nevada as part of the 3500 Series used for machinery vibration monitoring systems. Each 3500/50M Tachometer Module accepts up to two transducer signals from proximity probe transducers or magnetic pickups. Signals exceeding this range are limited internally by the module. The 3500/50M Tachometer Module supports 1 to 255 events per revolution for Rotor Acceleration and Zero Speed channel types. All other channel types support 0.0039 to 255 events per revolution. All channel types support a maximum full-scale range of 99,999 rpm and a maximum input frequency of 20 kHz. The minimum input frequency for proximity transducers is 0.0167 Hz (1 rpm for 1 event per revolution). The minimum input frequency for passive magnetic pickups is 3.3 Hz.
