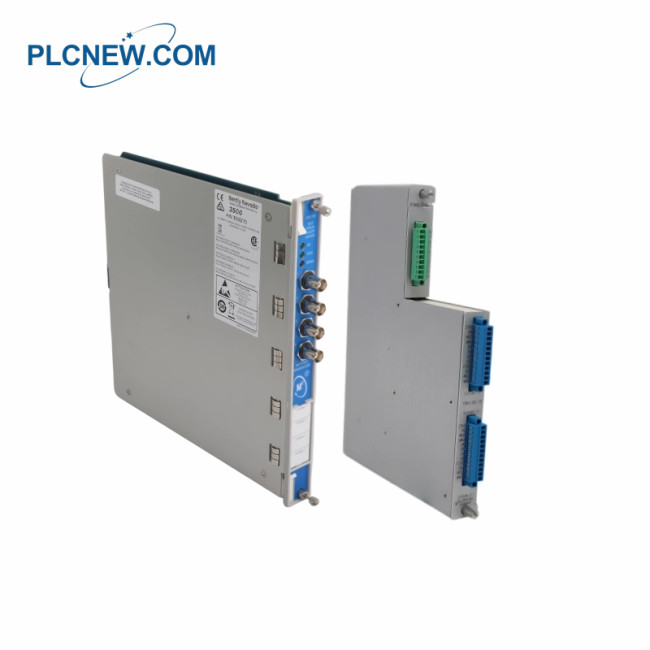

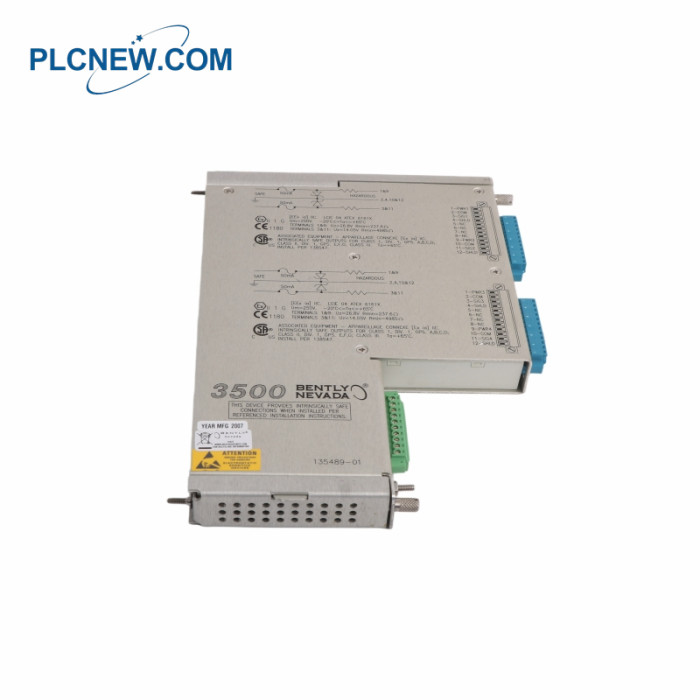

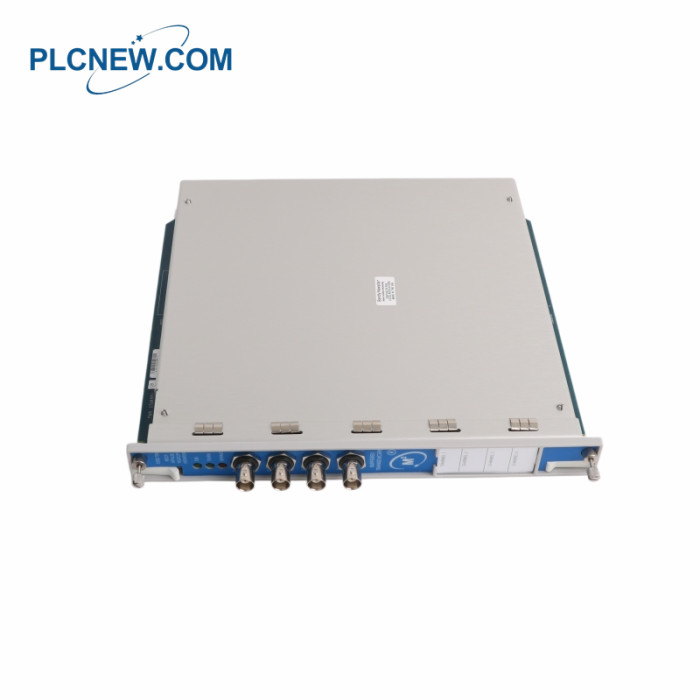

Bently Nevada 3500/70M 176449-09+135489-01 Recip Impulse Velocity Monitor
Specifications
|
Manufacturer |
Bently Nevada |
|
Part Number |
3500/70M 176449-09+135489-01 |
|
Product Type |
Recip Impulse Velocity Monitor |
|
Input Impedance – Acceleration Input |
10 kΩ |
|
Input Impedance – Velocity Input |
>1 MΩ |
|
Special Inhibit |
Contact closure, 5 Vdc @ 390 μA typical |
|
Nominal Power Consumption |
7.7 watts |
|
Impulse Acceleration Sensitivity |
0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g |
|
Acceleration 2 Sensitivity |
0.51 – 11.72 mV/(m/s²)；5 – 115 mV/g |
|
Reciprocating Velocity Sensitivity |
3.54 – 22.64 mV/(mm/s)；90 – 575 mV/(in/s) |
|
Low Frequency Recip Velocity Compliance |
+12 Vdc maximum |
|
Maximum Load Resistance |
600 Ω |
|
Maximum Resolution |
0.3662 µA |
|
Update Rate |
< 100 millisecond |
|
Typical Output Impedance |
550 Ω |
|
Minimum Voltage |
-22 Vdc |
The Bently NevadatM 3500/70M Recip Impulse Velocity Monitoris a 4-channel device used as part of
the reciprocatingcompressor solutions package to monitor compressorcrankcase and crosshead vibration.
The monitor acceptsinput from seismic transducers, conditions the signal toderive vibration measurements,
and compares theconditioned signals with user-programmable alarms.You can program each channel using
the 3500 RackConfiguration Software to perform the following functions:
Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity
Product Applications
Oil & Gas
Reciprocating compressor monitoring: This is its core application, used to monitor the vibration of the casing, the impact
of the crosshead, and the movement status of the piston rod.
Natural gas booster station: In gas pipelines, it ensures the continuous operation safety of large reciprocating compressors
and prevents unplanned shutdowns due to mechanical failures.
Petrochemical
Process compressor protection: In refineries and chemical plants, reciprocating compressors usually handle
high-pressure, flammable or corrosive gases. This module can detect mechanical impacts in real time and
provide early warnings of severe mechanical loosening or component damage.
Power Generation
Gas engine monitoring: Used for vibration monitoring of large industrial internal combustion engines.
