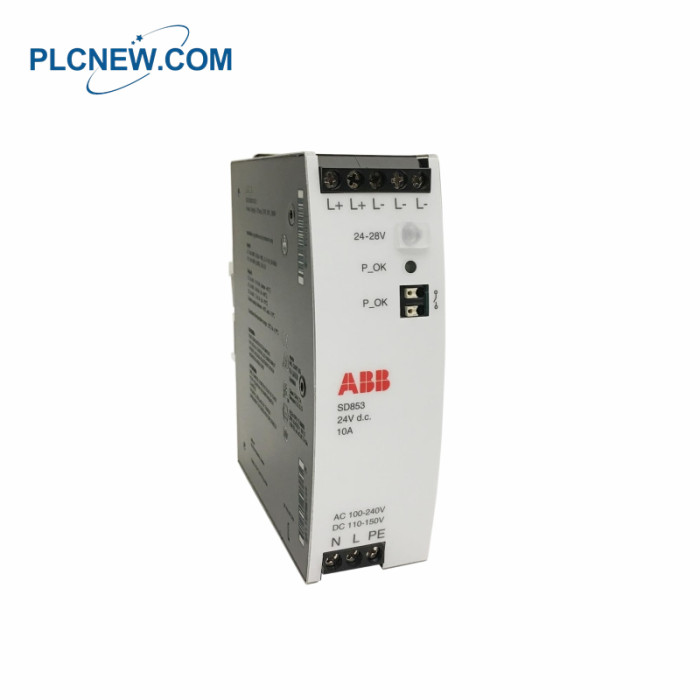

ABB SD853 3BSE088188R1 Power Supply
Specifications
|
Part Number |
SD853 3BSE088188R1 |
|
Type |
Power supply |
|
Rated Output Current |
10 A |
|
Rated Output Power |
240 W |
|
Rated Output Voltage |
24 V DC |
|
Nominal Mains / Input Voltage |
100–240 V AC, 110–150 V DC |
|
Applications |
SELV and PELV |
|
Efficiency |
93.6% @ 120 V AC / 95.2% @ 230 V AC |
|
Mains Frequency |
50–60 Hz ±6% |
|
Heat Dissipation |
16.4 W @ 120 V AC / 12.1 W @ 230 V AC |
|
Output Voltage Regulation (at max current) |
≤50 mV, 0–12 A |
|
Maximum Ambient Temperature |
70 °C |
|
Primary Recommended External Fuse |
10–20 A |
|
Secondary Short Circuit Protection |
Hiccup mode (2s on / 18s off) |
|
Output Overvoltage Protection |
Max 32 V DC |
|
AC Input Current |
2.15 A / 1.13 A |
|
AC Inrush Current |
6 A / 9 A peak |
|
Width |
39 mm (1.53") |
|
Depth |
117 mm (4.60") |
|
Height |
124 mm (4.88") |
|
Weight |
600 g (1.32 lbs.) |
The SD853 Power supply units are designed for high efficiency,electronic inrush current limitation, wide
operating temperature range,and extraordinarily small size. The lowest power losses and highlifetime
expectancy deliver the lowest cost of ownership.
The SD853 series complies for use in potentially explosive atmospheres(IECEx Zone 2, ATEX Zone 2, and
Class I Div 2). The SD853 series has abuilt-in power reserve and can easy breaking fuses due to high
overloadpeak current capability.
Product Applications
Oil & Gas: Provides stable power support in hazardous areas with potential explosion risks (Class I Div 2).
Chemical & Pharmaceutical: G3 corrosion-resistant coating protects against corrosive chemical gases.
Power Generation: As a core power supply module for DCS (Distributed Control System), ensures redundancy
and reliability of the power plant control system.
Process Industries: Widely used in pulp and paper, mining, and metallurgy industries where complex process
control with AC 800M controllers is required.
Safety Systems: Often used in conjunction with voter modules to build redundant power systems and enhance
overall system safety.
