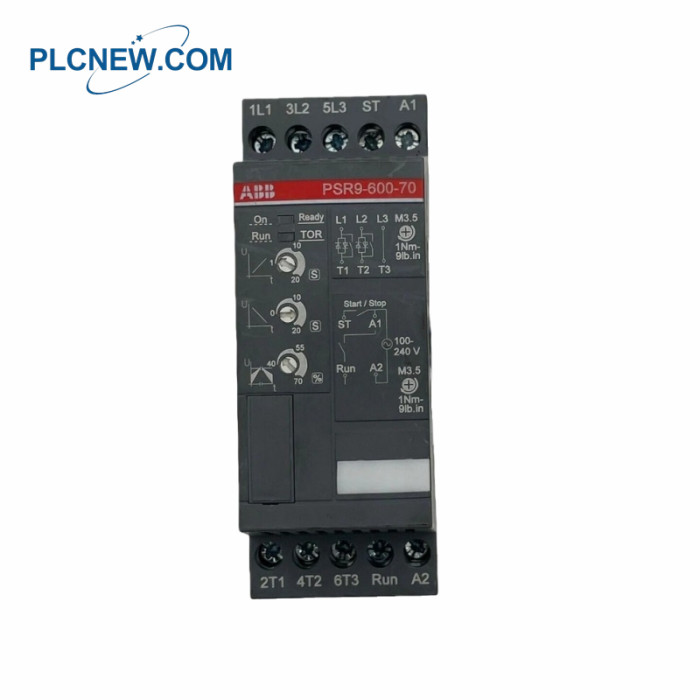

ABB PSR9-600-70 Open Soft Starters
Specifications
Part Number
PSR9-600-70
Rated Operational Voltage
208 … 600 V AC
Rated Control Supply Voltage (Us)
100 … 240 V AC
Rated Control Circuit Voltage (Uc)
24 V DC
Rated Frequency (f)
50/60 Hz
Main Circuit Frequency
50/60 Hz
Rated Operational Current (In-Line Connection, Ie)
9 A
Service Factor Percentage
100%
Overload Protection
Recommended MS116 6.30 … 10.00
Integrated Electronic Overload
No
Starting Capacity at Max Rated Current Ie
4×Ie for 6 s
Ramp Time
0 … 20 s
Special Ramp Time
1 … 10 s
The softstarter PSR9-600-70 has a rated maximum operational current of 9 A with an operating voltage span
from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase
control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving.
A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to
set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from
ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be
enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic
functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and
can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
Product Applications
Manufacturing: Various lightweight mechanical transmissions and material conveying assembly lines.
Water treatment and pumping stations: Smooth start and stop of water pumps.
HVAC (Heating, Ventilation, and Air Conditioning): Fans, compressors, and other systems.
