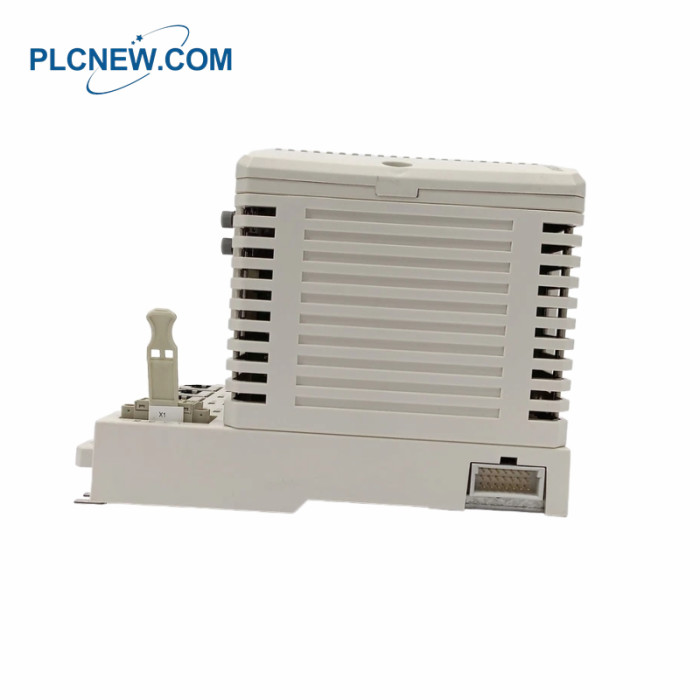

ABB PM862K02 3BSE081636R1 Redundant Processor Unit

Manufacturer : ABB
Product No : 3BSE081636R1
Product type : PM862K02 Redundant Processor Unit
Clock Frequency : 67 Mhz
Memory : 32 MB
Package including:
- 2 pcs PM862, CPU
- 2 pcs TP830, Baseplate
- 2 pcs TB807, ModuleBus terminator
- 1 pcs TK850, CEX-bus extension cable
- 1 pcs TK851, RCU-Link cable
- 2 pcs Battery for memory backup (  4943013-6 )
- No license included
Only compatible with 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards
Performance : 0.18 ms
Processor type : MPC866
Power supply : 24 V DC (19.2-30 V DC)
Dimensions (HxWxD), approx : 18.6cm x 11.9cm x 13.5cm
Weight: 2.7 kg
Shipping Weight : 4 Kg

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
The base plate of the PM862 controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.
