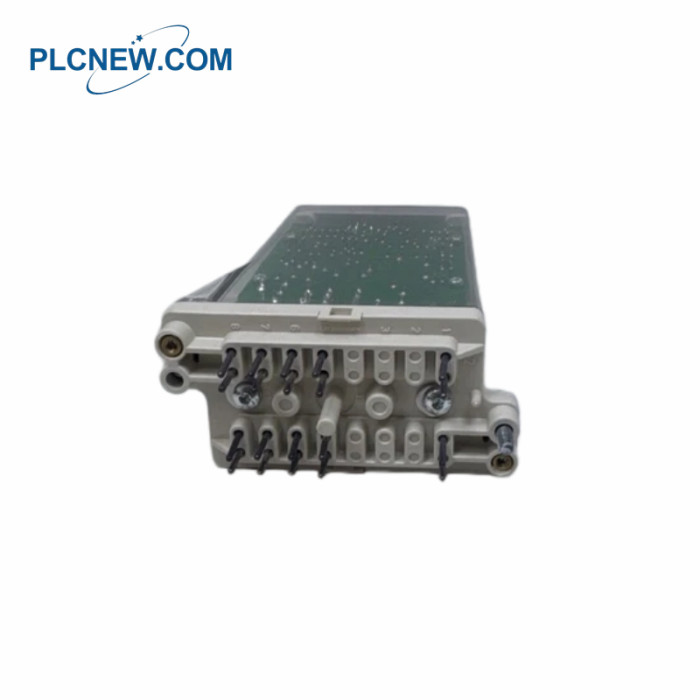

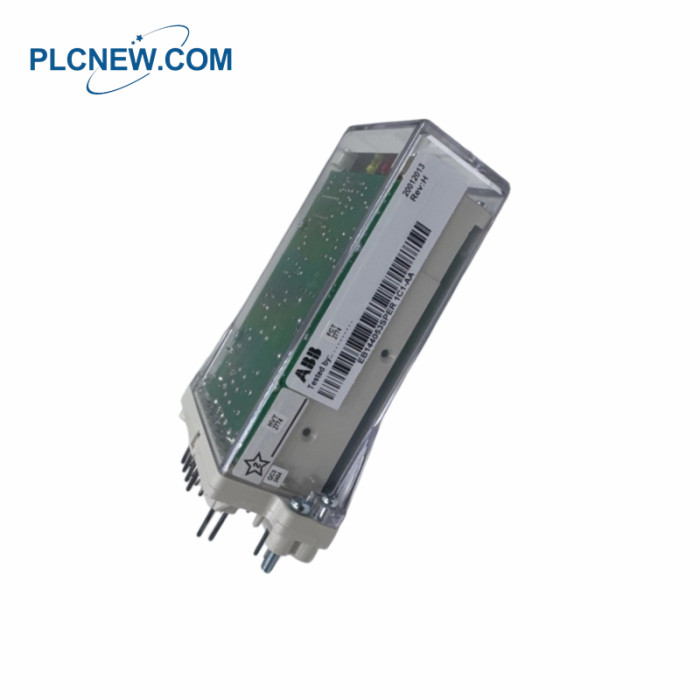

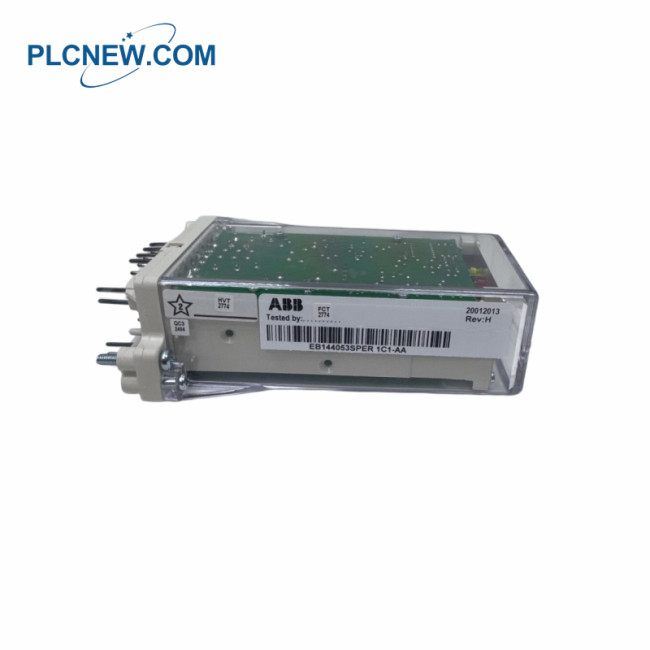

ABB EB144038SPER 1C1-AA Sper 1C1 Relais

ABB EB144038SPER 1C1-AA Sper 1C1 Relais

Details of the module

Model Name: EB144038SPER 1C1-AA
Manufacturer: ABB
Product Type: Sper 1C1 Relais
Supply Voltage Range: 40–265 V DC
Typical Internal Resistance:1.2 kΩ at 48 V DC
Operate Time Delay: Approx. 3 seconds (preset)
Reset Time:  1 second after fault clearance
Current Consumption:  7 mA auxiliary supply
Output Relay Rated Voltage: 250 V AC / DC
Dielectric Test Voltage: 2 kV, 50 Hz, 1 min
Impulse Withstand Voltage: 5 kV (1.2/50 μs)
High-Frequency Disturbance Immunity: 2.5 kV at 1 MHz
Operating Temperature Range: –10 °C to +55 °C
Storage Temperature Range: –40 °C to +70 °C

The ABB EB144038SPER 1C1-AA SPER 1C1 Relay is a trip circuit supervision relay designed to continuously

monitor critical control and protection circuits in electrical power systems, such as trip and breaker control

circuits, disconnector control circuits, and signaling loops. By forcing a small measuring current through the

supervised loop, it quickly identifies abnormal conditions including open circuits, poor or welded contacts, and

loss of auxiliary DC supply. When a fault is detected, the relay signal changes state, allowing alarm activation or

coordinated protective action to prevent equipment damage and maintain system reliability.

Frequently asked questions：

Q:Is this product brand new?
A:Yes, ABB EB144038SPER 1C1-AA is brand new, original, unused, and factory sealed
Q:Do you have it in stock?
A:Yes, right now we have ABB EB144038SPER 1C1-AA in stock ready for shipment, we can support video inspection.
Q:What payment mothod we used?
A:We usually use T/T (Telegraphic Transfer).
Q:Can I contact you on Email?
A: Yes, absolutely. You can contact me online, or email me directly at sales7@amikon.cn for any inquiries.

Product Applications
Substations and Distribution Networks: Monitor the trip circuits of circuit breakers to ensure that the trip instructions

can be executed smoothly in case of faults.
Power Plants: Used for continuous monitoring of critical control circuits and signal circuits to prevent protection failure

due to the absence of auxiliary power or line breakage.
Industrial : Applied in the control circuits of highly reliable sectional switches and disconnectors.

Main functions and monitored objects
This relay can continuously monitor the current and voltage status, and can promptly detect the following issues:
Poor contact or broken connection: Detect excessive transition resistance or current interruption in the monitoring

circuit.
Contact welding (Contact Welding): Identify whether the control contacts have fused.
Auxiliary power failure: Issue an alarm when the monitoring circuit or the auxiliary voltage of the relay itself

disappears.
Self-check of the equipment: Equipped with self-monitoring function to ensure that the monitor itself is working

properly.
