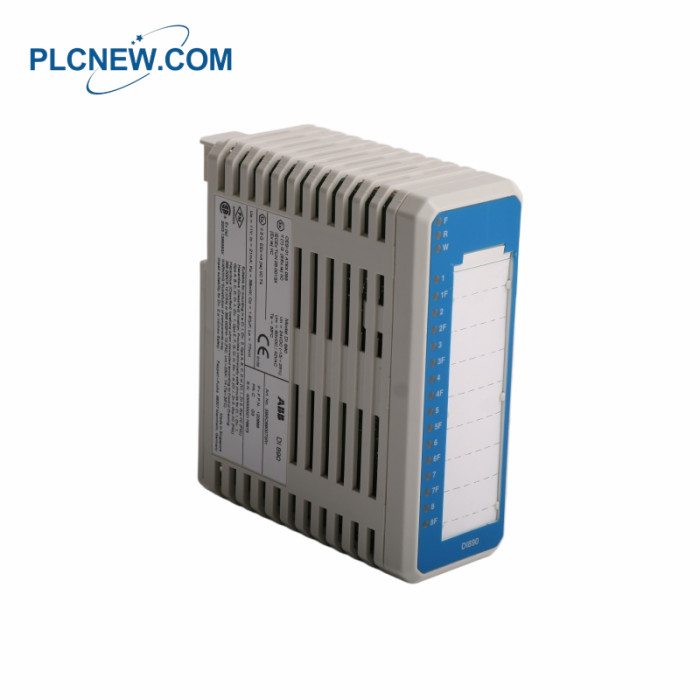

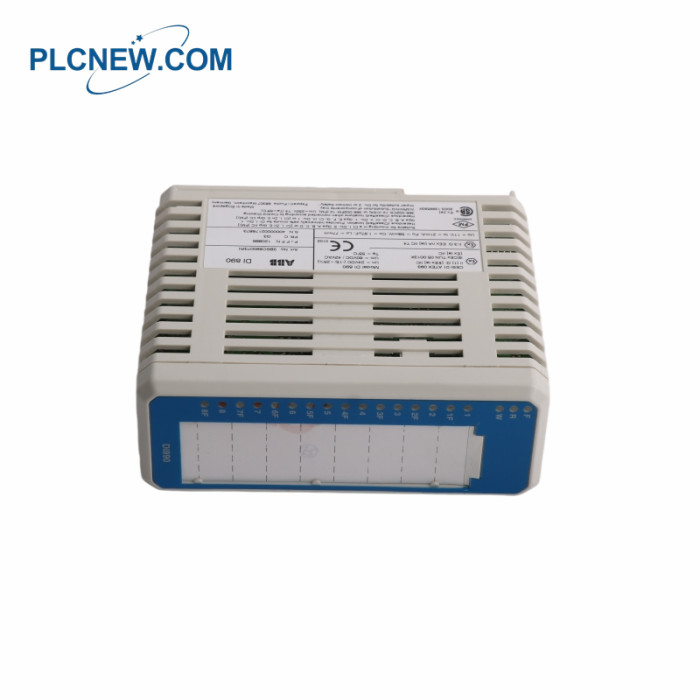

ABB DI890 3BSC690073R1 Digital Input Module

ABB DI890 3BSC690073R1 Digital Input Module

Details of the module

Article Number: 3BSC690073R1
Type: Digital Input
Signal Specification: NAMUR input level
Number of Channels: 8
Signal Type: Proximity sensor (NAMUR) or voltage-free contact
Current Limiting: Built-in current-limited sensor power
Rated Insulation Voltage: 50 V
Dielectric Test Voltage: 500 V a.c.
Power Dissipation: 1.4 W
Current Consumption (+5 V Modulebus):
Typ.120 mA
Max.<150mA
Current Consumption (+24 V External):
Typ.50mA
Max.<70mA

The DI890 Digital Input Module has 8 channels. The module includes Intrinsic Safety protection components on each

channel for connection to process equipment in hazardous areas without the need for additional external devices.

Each channel is galvanically isolated from the power supply, ground, and each other. Intrinsically safe Proximity

sensors or volt-free contacts can be powered and monitored by any channel.
The Proximity sensor should conform to the NAMUR standard and line faults can be detected without any additional

external components. For line faults to be detected when using volt-free contacts, external resistors should be connected

in series and in parallel to enable the state of the field circuit to be sensed by the input channel. All eight channels are

galvanic isolated from the ModuleBus and power supply individually. Power to the input stages is converted from the

24 V on the power supply connections. Three LEDs indicate module status Fault (Red), Run (Green), and Warning (Yellow).
TU890 and TU891 Compact MTU can be used with this module and it enables two wire connections to the process

devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications.

Frequently asked questions：

Q1: What is the ABB DI890 3BSC690073R1?

A: The ABB DI890 3BSC690073R1 is a Digital Input Module designed for ABB S800 I/O systems, enabling reliable

monitoring of digital signals from field devices.
Q2: How many channels does the ABB DI890 3BSC690073R1 support?
A: It supports 8 digital input channels.
Q3: What is the rated insulation voltage?
A: The module has a rated insulation voltage of 50 V.
Q4: What dielectric test voltage does it support?
A: The ABB DI890 3BSC690073R1 supports a dielectric test voltage of 500 V AC.
