ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 IGCT Module

ABB 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152  IGCT Module

Details of the module

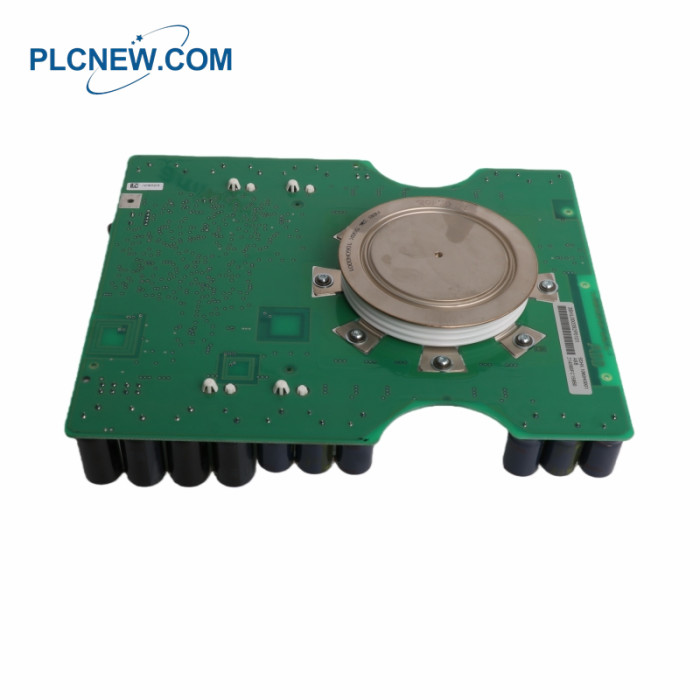

The ABB 3BHL000391P0101 / 5SHX1445H0001 / 3BHB003230R0101 / 5SXE05-0152 IGCT Module is a

high-power semiconductor assembly based on Integrated Gate-Commutated Thyristor (IGCT) technology,

designed for demanding medium- and high-voltage power conversion applications.
This module integrates multiple components into a complete power switching solution: the press-pack IGCT

device (5SHX1445H0001), the valve or control unit (3BHL000391P0101), the mechanical assembly (3BHB003230R0101),

and the optical firing and monitoring unit (5SXE05-0152). Together, they provide precise gate control, real-time

monitoring, and reliable high-current switching performance.

Frequently asked questions：

Q1: What is this IGCT module?
A1: The 3BHL000391P0101 5SHX1445H0001/3BHB003230R0101 5SXE05-0152 is an IGCT Module used in

high-power industrial applications for fast and efficient switching.
Q2: What is the current rating of the module?
A2: The 3BHB003230R0101 5SXE05-0152 module supports a current range of 1400 A to 3000 A, depending on

the specific configuration and application.
Q3: How fast is the switching performance?
A3: It offers very fast switching speeds of less than 1 µs, making it suitable for high-performance power electronics.
Q4: What is the typical switching frequency?
A4: The 3BHB003230R0101 5SXE05-0152 module can operate at switching frequencies up to 2 kHz, depending

on system design and cooling conditions.
Q5: What gate drive voltage is required?
A5: The gate drive voltage is approximately 20–25 V, ensuring reliable turn-on and turn-off control.

Product Applications

Oil and Gas: Provides stable power control in large pump and compressor drive systems on offshore drilling platforms

or in refineries.
Mining: Used in heavy machinery requiring high-power speed control, such as hoists, conveyors, and crushers.
Marine Propulsion Systems: Integrated into electric propulsion systems of large ships, optimizing energy efficiency

and improving maneuverability.
Power and Energy Management: Used in power conversion control in grid stabilization devices, static var compensators

(SVCs), and high-voltage direct current (HVDC) transmission systems.
Metallurgy and Metal Processing: Applied to frequency conversion control systems in large rolling mills and electric

arc furnaces, ensuring precise current regulation under high loads.
