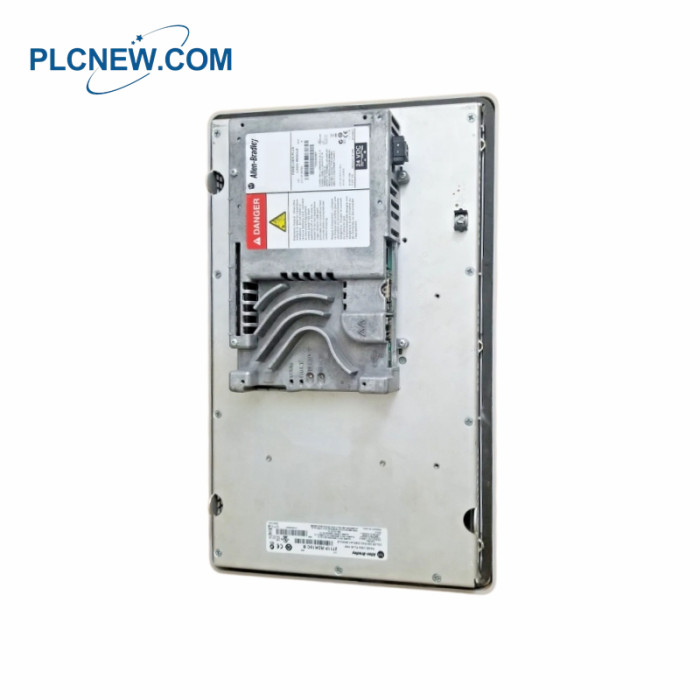

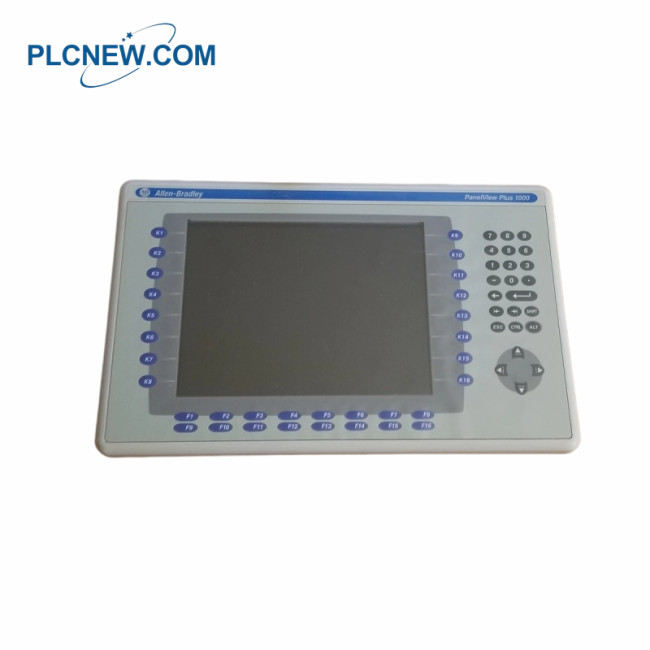

2711P-K10C4D8 Operator Terminal
Specifications
|
Part Number |
2711P-K10C4D8 |
|
Weight |
8.63 lbs (3.91 kg) |
|
Backlight |
CCFL, 50,000 hours min at 25 °C (77 °F), field replaceable |
|
Display Size |
10.4 inches |
|
Resolution |
640 × 480, 18-bit color graphics |
|
Input Voltage Range |
18-30 VDC |
|
Display Color |
Color |
|
Input Type |
Keypad |
|
Communication |
Ethernet and RS-232 |
|
Input Power |
18-32 VDC |
|
Memory |
512 MB RAM |
The current 2711P-K10C4D8 is an HMI that allows the user to interact with their machine. This operator interface has
a 10.4 in. Color Display. The user is able to control the operator interface by utilizing the Keypad to input information and
data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 512 MB RAM. If applicable
this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight
and dimensions are 8 lbs. and 16 x 14 x 8 in. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network
that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on
an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with
application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of
the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module
is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address.
This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections.
The parameters are downloaded with the application.
Product Applications
Manufacturing and General: Control, monitoring, and data visualization for various production lines.
Oil and Gas: Flow measurement, on-site data collection and display.
Water Treatment/Environmental Protection: Monitoring of water treatment equipment, flow and pressure data processing.
Automobile Manufacturing: Human-machine interaction operation stations for body, assembly, and painting production lines.
Mechanical Manufacturing and Equipment: Operation panels for CNC machinery, plastic machinery, printing machinery,
paper machinery, textile machinery, tobacco machinery, etc.
Municipal Engineering and Electricity: Control of infrastructure such as power plants and sewage treatment plants.
