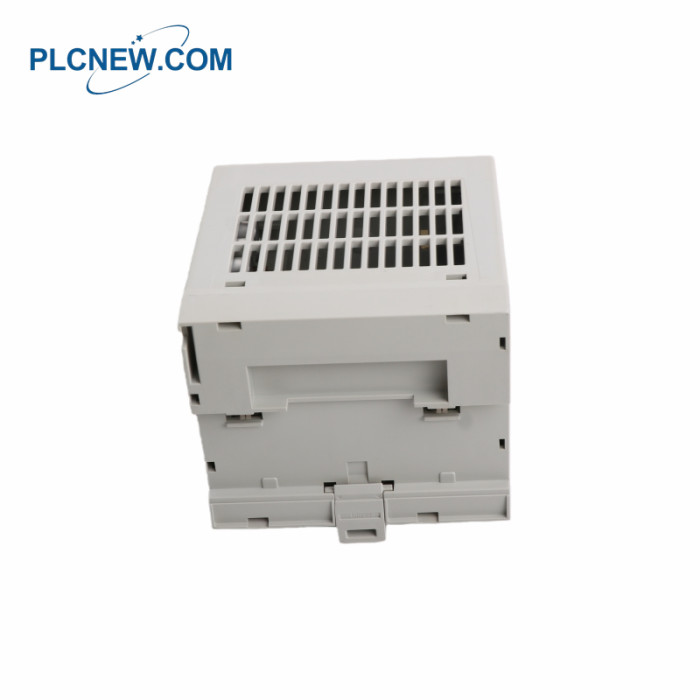

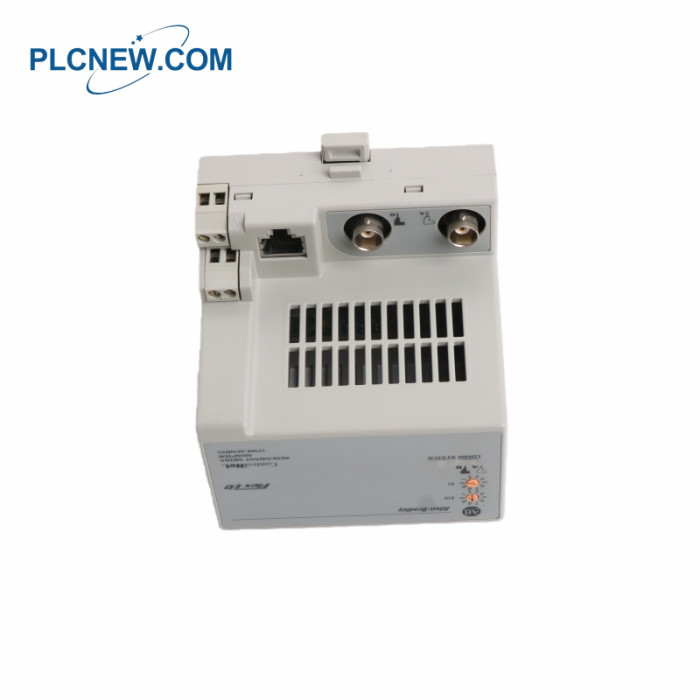

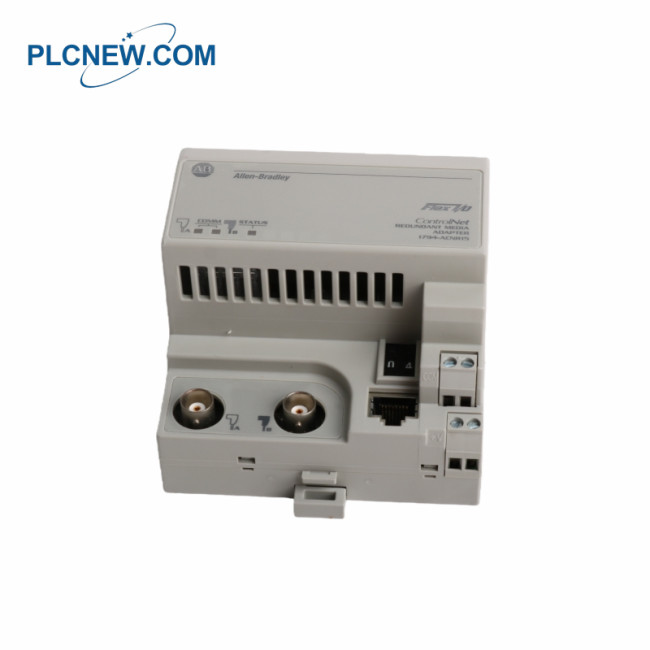

1794-ACNR15 Redundant Media ControlNet Adapter
Details of the module
Product Type: Redundant Media ControlNet Adapter
Product Line: FLEX I/O 1794
Part Number: 1794-ACNR15
Weight: 0.56 lbs (0.26 kg)
Communication Interface: 2 × ControlNet BNC Ports
ControlNet Protocol: Version 1.25
Communication Rate: 5 Mbps
I/O Status: Red/Green
Mounting Type: DIN Rail
Input Voltage: 24 V DC
Input Voltage Range: 19.2–31.2 V DC
Current Draw: 450 mA (max.)
FlexBus Output Current: 640 mA (max.)
Inrush Current: 23 A for 2 ms
Isolation Voltage: 850 V DC
Power Dissipation: 3.4 W (max. @ 19.2 V DC)
Thermal Dissipation: 15.7 BTU/hr (@ 19.2 V DC)
Operating Temperature: –20 to +55 °C (–4 to +131 °F)
Surrounding Temperature: 55 °C (131 °F)
The 1794-ACNR15 is a Redundant ControlNet communication module. This module is a component product of the
Flex I/O product family that is used for implementing distributed I/O in various applications and industries.
The 1794-ACNR15 supports ControlNet protocol. It may be used to implement redundant ControlNet topology by
connecting to the ControlNet trunk connection. The 1794-ACNR15 has Two (2) ControlNet communication ports,
each port connecting to the individual trunks. When one ControlNet trunk fails, data is automatically routed to the
second ControlNet trunk.
The 1794-ACNR15 supports ControlNet transmission speed of 5Mbps and may be installed with Eight (8) Flex I/O modules
of any combination.
