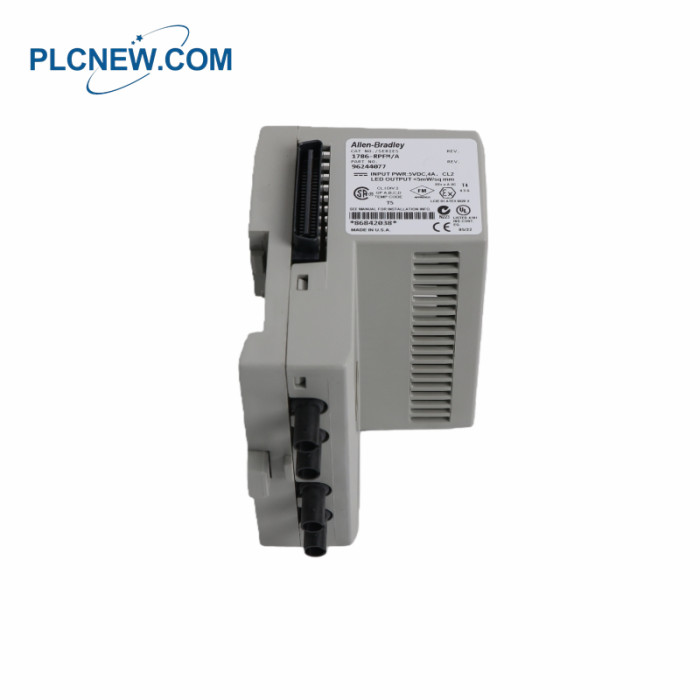

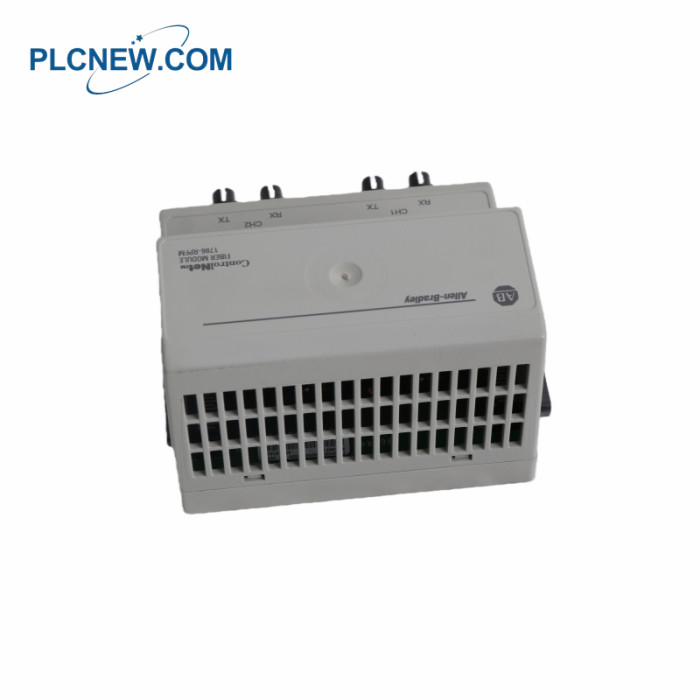

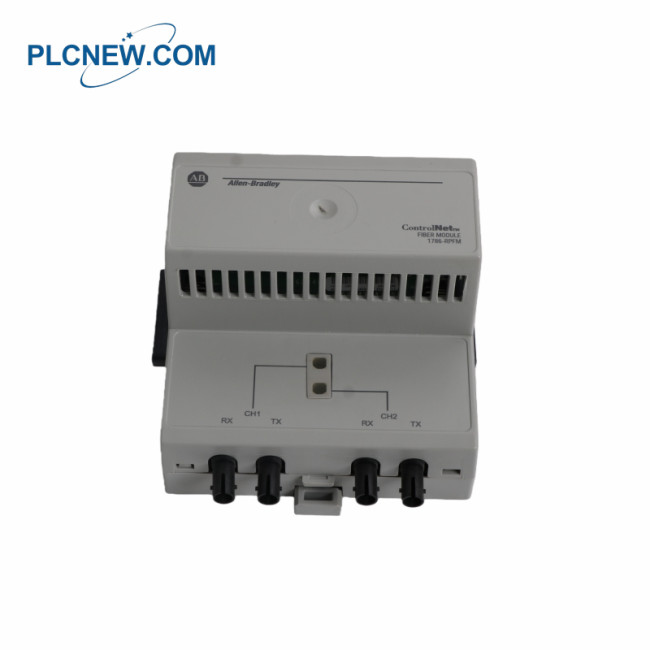

1786-RPFM Distance Fiber Module
Details of the module
Product Line: 1786 Repeaters
Part Number: 1786-RPFM
Product Family: ControlNet Communication
Weight: 0.63 lbs (0.28 kg)
Fiber Type: 62.5/125 µm Multimode Fiber (OM1)
Fiber Operating Wavelength: 1300 nm
Attenuation Level: 13.3 dB
Typical Repeater Distance: 0–3 km
Communication Rate: 5 Mbps
Supported Topologies: Star, Linear, Ring, Point-to-Point
Mounting Type: Panel Mount / DIN Rail
Mounting Orientation: Vertical / Horizontal
Input Power: 5 V DC
Backplane Current Draw: 400 mA
Voltage & Current Rating: Backplane 400 mA @ 5 V DC (max)
Maximum Power Consumption: 2 W
The 1786-RPFM is an ControlNet accessory. This module is a Panel Mount / DIN rail mountable device that functions
as ControlNet Modular Repeater Medium Distance Fiber Module.
This module is used to for conversion of Cox cable to fiber optic medium with a maximum distance of 3000 meters or
9843 feet. The fiber link provides isolation between connected nodes and provides an increased immunity to noise
and electrical disturbances. The fiber link of this module requires use of 62.5/125 micron cable, OM1 multi-mode Fiber
optic cable.
The 1786-RPFM is used with the 1786-RPA ControlNet Repeater Adapter module. Up to Four (4) 1786-RPFM may be
used with One 1786-RPA. Additionally, mixing repeater types is allowed when assembling a ControlNet network. The
maximum allowable total power consumption without damaging the module repeater adapter and nearby modules is
1.6 A @ 5V DC.
