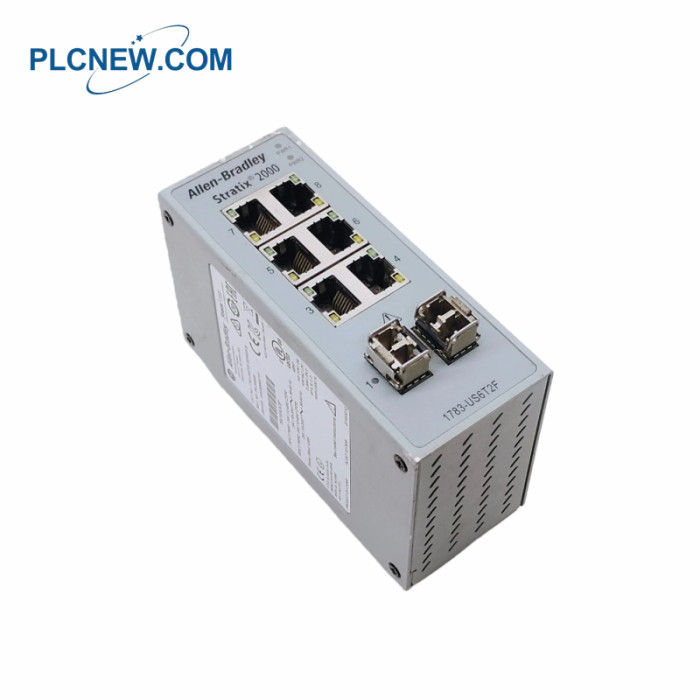

1783-US6T2F Stratix Ethernet Switch
Product Details
Part Number: 1783-US6T2FThe 1783-US6T2F is an Stratix 2000 unmanaged switch. This industrial Ethernet switch is provided with a total of
Eight (8) network ports, which are comprised of Six (6) RJ45 copper ports and built-in Two (2) SFP ports for insertion
of option Small Form-Factor pluggable (SFP) transceiver modules. These ports are Fast Ethernet (FE) ports supporting
10/100 Mbps transmission speed. The 1783-US6T2F is an industrial-grade Ethernet switch that is designed for
implementing Ethernet Fieldbus network, for integration and enabling of data exchange between PLC, PAC, Distributed
or Remote I/O stations, Distributed Control Systems (DCS), Human Machine Interfaces (HMI), Supervisory Control and
Data Acquisition (SCADA), Variable Frequency Drives (VFD), motor Soft Starters, Gateways, Media converters, and
other devices. The 1783-US6T2F operates when connected to an external power supply that provides 24 VDC /
24 VAC nominal supply voltage while the accepted supply voltage range is 18-60V DC, 18-30V AC 50/60 Hz AC input
frequency, Class 2/SELV power supply. It has a current rating of 442.3 mA and power dissipation of 5.927 Watts. To
establish an Ethernet connection, use RJ45 connector according to IEC 60603-7, and 2-pair or 4-pair Category 5e
minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 with a minimum insulation
rating of 82 °C (180 °F). For input power connections, the appropriate cable is 0.82-2.5 mm2 (18-14 AWG) twisted-pair
copper wire suitable for an ambient temperature of 82 °C (180 °F). This Ethernet switch supports DIN rail mounting with
an open-type enclosure.
