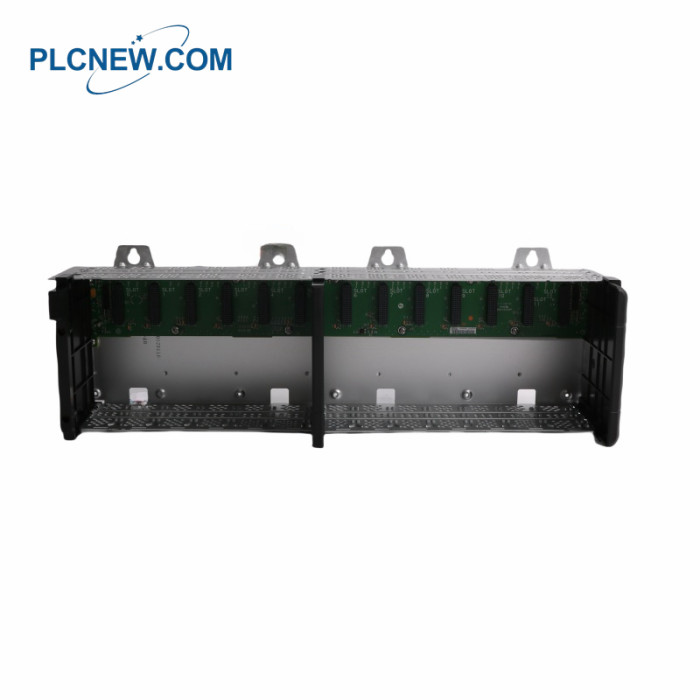

1756-A13 Industrial Control Module

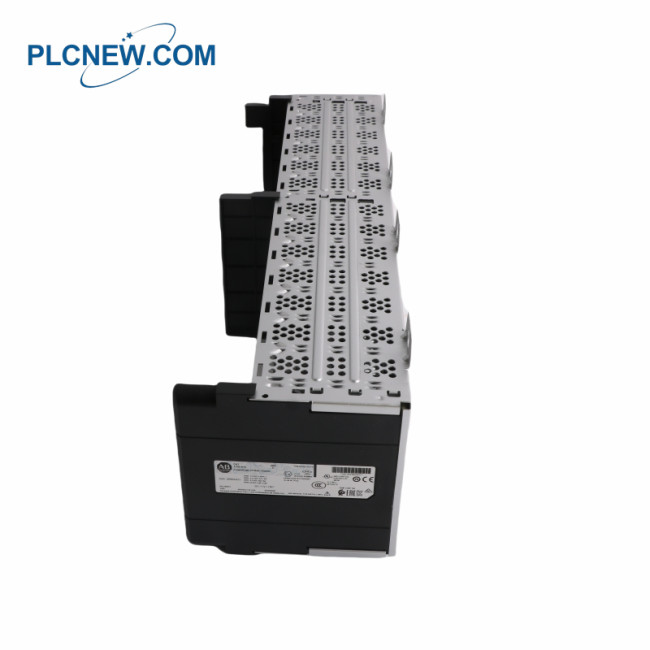

1756-A13 Industrial Control Module

1756-A13 Specification

Product Type:Industrial Control Module
Model Number:1756-A13
Brand: PLC module
Number of Slots: Thirteen (13) slots
Backplane Current @ 1.2VDC: 1.5 A
Backplane Current @ 3.3VDC: 4A/4 A
Backplane Current @ 5.1VDC: 15 A/6 A
Backplane Current @ 24VDC: 2.8 A/2.8 A
Orientation: Horizontal
Number of Mounting Tabs: Eight (8)
Operating Temperature, Series B: 0°C to +60°C (+32°F to +140°F)
Operating Temperature, Series C: -25°C to +60°C (-13°F to +140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5 to 95% (without condensation)
Slots: 13
Power Dissipation (Max): 5.4 Watts
Dimensions: 24 x 30 x 8 inches
Weight: 4.2 pounds (1.9 kilograms)
Enclosure: Open
Backplane Current (5 Volts DC): 10 amps
Backplane Current (24 Volts DC): 2.8 Amps
Dimensions:50.1x16.8x14.5cm
Weight:1.64kg

1756-A13 Description

The 1756-A13 is a chassis from. This chassis provides module housing, providing

13 module slots where controllers and I/O modules may be installed. Aside

from providing the mounting slots, the chassis also host the electronic circuitry

which make-up the backplane. The backplane distributes the current which is used

by each of the module to energize individual circuitry to function properly.

The 1756-A13 supports horizontal mounting only. It requires minimum cabinet size

of 50.1x16.8x14.5cm for installation and weighs 1.64 kg. It is directly installed to

the enclosure subpanel via the provided mounting tabs located on top and bottom

of the chassis. Install this chassis at a temperature range of 0…60 °C (32…140 °F)

for Series A and B chassis and -25…+60 °C (-13…+140 °F) for Series C chassis. It

has operating vibration rating of 2 g @ 10…500 Hz and operating shock rating of 30 g.

This chassis may be used with the Logix 5560, 5570 and 5580 product families.

The 1756-A13 has backplane current consumption of 1.5 A @ 1.2VDC; 4A/4A @ 3.3

VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It has power dissipation of

5.4 Watts with an open type enclosure rating.

The chassis backplane distributes power to each of the modules within the chassis

by providing a high-speed communication path between modules. It needs a Bulletin

1492 IFM or an RTB to connect all the field-side wiring. The 1756-A13 Standard

Chassis provides easy maintenance with the Removal and Insertion Under Power

(RIUP) feature. For preventing replacement errors, it also offers electronic keying.
